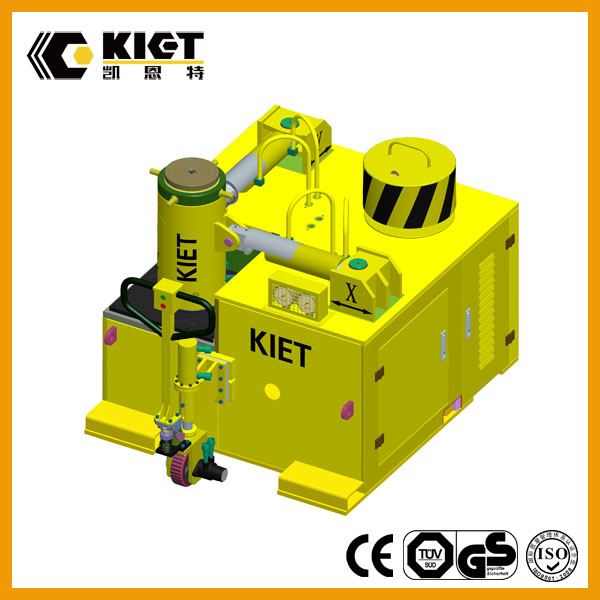

Three-Dimensional Hydraulic Jacking Device

ENERPAC high performance general purpose hydraulic adjustive devices hot sell

In the field of modern shipbuilding's manufacturing and installation, the segmented manufacturing is adopted and the remaining sub-close to a whole for improving the manufacturing efficiency and reduce labor purpose venue followed by a segment as reference, Traditional on-site using a large crane to move the segments to a predetermined position, which is the main reason that results in the issues of prolonged occupation of the crane and inaccurate connection between the segments and segments.
With the development of science & technology, SOV have developed the hydraulic three - dimensions adjustment device which can totally take the role of traditional large crane. It is the key equipment of modern shipbuilding's industry for moving huge segments, which combines mechanical technology, electrical technology, and hydraulic technology together. Numerous quantity hydraulic three - dimensions adjustment devices are required to work synchronously for each connection of hull's segments, the main control unit needs to keep abreast of the adjustment data from each device, but also timely sending the instructions to the respective set of hydraulic three-dimensional adjustment device.
Currently, the data transmission can be divided into wired communication and wireless communication methods. Compared with wired communication, the wireless communication method is much more welcomed resulting from no limit of long communication cable's connection, no poor repair stitching and no accidental disconnection etc.


Main Features
1. This device requires less time on the crane and significantly increases the utilization of the crane. It helps shorten the slipway/dock manufacturing period.
2. High production efficiency
After the workpiece is placed on the jacking device or platform, the follow-up work can be completed under the control of electricity (wired/wireless, stand-alone/centralized/arbitrary combination), thus improving the work efficiency.
The synchronous positioning adjustment system is adopted to ensure the positioning precision, work safety and performance safety when the position of segments is adjusted.

Model Number	Capacity	Vertical Adjustment Range	Horizontal Adjustment Range	Length &Width	Rotation Angle of Top Saddle	Weight
	T	mm	mm	mm×mm	°	T
KET-3D-400	100	250	150	1200×1710	5	2.3
KET-3D-800	200	250	150	1350×1930	5	2.8
KET-3D-1200	300	250	150	1400×2150	5	3.4
KET-3D-1600	400	250	150	1460×2180	5	4.0
KET-3D-2000	500	250	150	1700×2180	5	4.6
KET-3D-2400	600	250	150	1700×2180	5	5.8

Our Service:



KIET provide one year guarantee for all the hydraulic cylinders. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded in 24 hours.

FAQ:
Q1: How can contact sales?
A1: Please call: +86-18121376369 for pre-sales or click the contact find our website and email address.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product If I place an order?
A3: If products stock available, after confirmation of your payment or advance payment, we will pack
and deliver in 3-7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea
shipment, it will take 15-45 days depending on different locations.
Q4: How to make payment?
A4: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma
invoice with our banking details.
Q5: Manufacturing time?
A5: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.


Jiangsu Canete Machinery Manufacturing Co.,Ltd . is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:
Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger;
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton)
Hydraulic pumps, manual and electric type (max up to 3000bar);
Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
