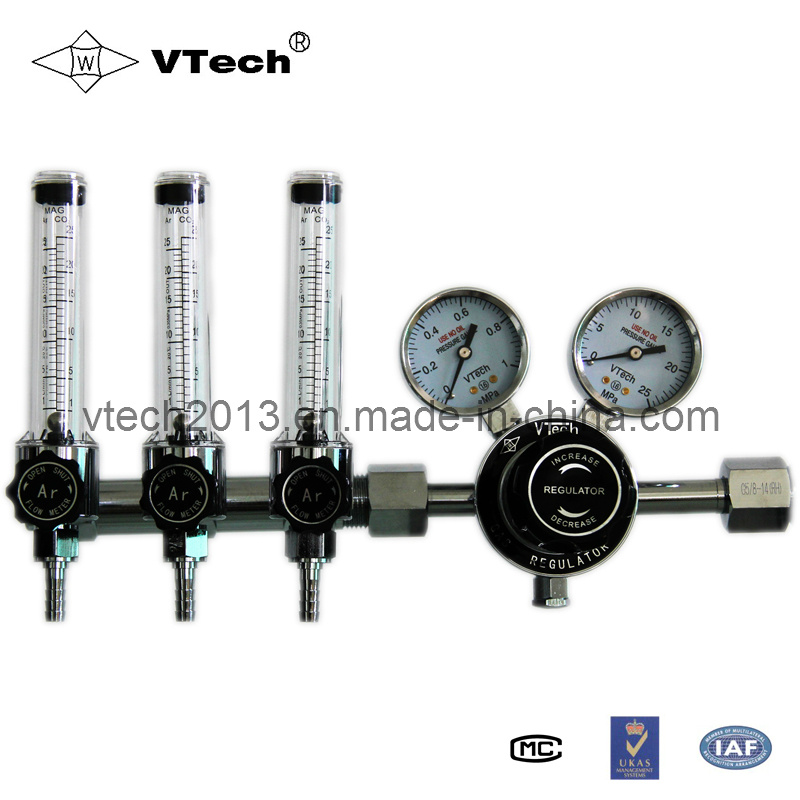

Three Flowmeter Gas Regulator (FCR-209-III)

Name: Three Flowmeter Gas Regulator (FCR-209-III)
Brand: china-manufacturer-directory.com
SKU: 719892035
Availability: InStock
Rating: 4.9 (24 reviews)

Supplier:	Nanjing Vtech Electro-Mechanical Technology Development Co., Ltd.
Price:	US $ 80-120/Piece
Min Order:	1/Box
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FCR-209-III
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Pressure Gauge:	25mpa
Low Pressure Gauge:	1mpa
Inlet Pressure(P1):	Below 14.8mpa
Adjust The Pressure(P2):	0~0.99mpa
Flow Range:	1~25L/Min
Flow Accuracy:	± 4%
Flow Mode:	out
Standard Outlet Pressure:	0.35mpa
Inlet Connection:	G5/8-14"-Rh(F)
Outlet Connection:	M12-1.0rh
Display:	Pointer
Function:	Electric Signal-controlled
Accuracy:	0.1
Indicating Pressure Reference:	Absolute Pressure Gauge
Application:	Industrial
Measuring Range:	High-pressure Gauge

Product Description

1. Forged brass body & bonnet for maximum strength.
2. Sintered metal inlet filter to trap impurities.
3. No soldered joints, for easy maintenance.
4. Smooth adjustment, with high precision.
5. Inlet and outlet connection will be supplied to suit your requirement.
6.Weight3.7kg

[The main material]

Regulator body:C3771BE
Regulator cover:C3771BE
Flowmeter body:C3604BD
Seat :PTFE
Flowmeter tube :PC

Note:
1.Always specify model number and gas when ordering.
2.Inlet and outlet connection will be supplied to suit your requirement.
3.The safety relief valve is available if request.

VTech--------To meet stronger!

Model	High pressure gauge ( MPa )	Low pressure gauge ( MPa )	Flowmeter				Inlet connection	Outlet connection
Model	High pressure gauge ( MPa )	Low pressure gauge ( MPa )	For gas	flow ( L/min )	mode	Standard outlet pressure ( MPa )	Inlet connection	Outlet connection
FCR-209-III	25	1	Ar	25	OUT	0.35	G5 / 8-14 " -RH(F)	M12 × 1.0-RH ( F )
	25	1	N 2	25	OUT	0.35	G5 / 8-14 " -RH(F)	M12 × 1.0-RH ( F )
	25	1	O 2	25	OUT	0.35	G5 / 8-14 " -RH(F)	M12 × 1.0-RH ( F )

Nanjing Vtech Electro-Mechanical Technology Development Co., Ltd.
Professionally researches & develops, manufactures and sales general industrial gas regulators, special gas regulators, medical gas regulators, flow meter, centralized gas supply system and related consumable materials. The products are widely used in many fields, such as steel cylinder, laboratory pipeline, aerospace, welding & cutting, medical detection and so on.

Based on continually equipped with advanced processing equipments, VTech started cooperation with Japan YUTAKA since 1st June 2011 and introduced technology and testing equipment of CROWN. Up to now Vtech has more than a dozen patents for inventions and got Certificates of CMC, ISO9001, ISO14001 environment & quality and has obtained qualification of Jiangsu province private technology enterprises, and Small and Medium - Sized Technology - based Enterprises. Vtech's energy-saving valve was awarded the certificate of high-tech products. Supplied to several well-known welding & cutting equipment manufacturers at domestic and abroad, Vtech's products are exported to over 50 countries and regions.
