Three-Layer Co-Extrusion Film Blowing Machine

Three-Layer Co-Extrusion Film Blowing Machine
Supplier: Ruian Uniwonder Machinery Manufacturer & Trade Co., Ltd.
Price: US $ 30000-80000Unit
Min Order: 1Unit
Quantity::
Trade Terms: FOB,CFR,CIF
contact supplier

Product Specifications

Prod Model: SJ-G
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Condition: New
Capacity: 80 Kg/H
Voltage: 220V
Function: PE Film
Model Number: Sj-FM
Control Mode: Fully Automatic
Power: 18.5 Kw
Material: PE
Brand Name: Uniwonder
Warranty: One Year
Type: PE Film Blowing Machine
Raw Material: PE
Automation: Automatic
Computerized: Computerized
Machine Weight: 4T
Maximum Folding Width Of Film: 600mm
Screw Diameter: 50mm

Product Description

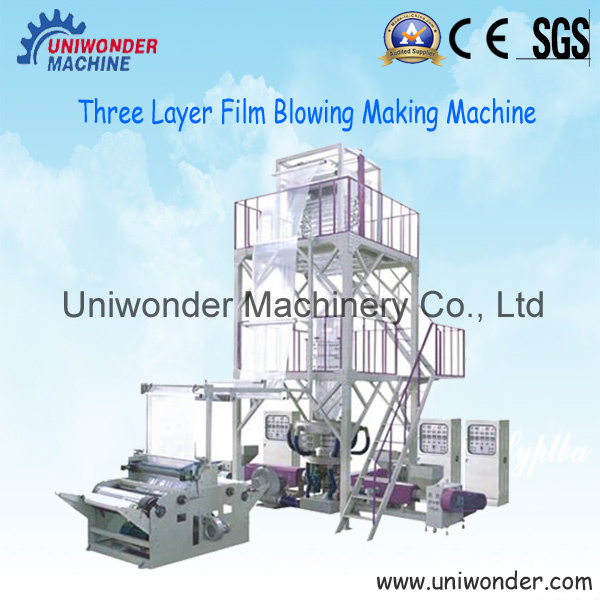

3L-45/65 Three Layer Co-Extrusion Film Blowing Machine

Characteristics:

1.Die head is layer type spiral mandrel, continuous 3600  rotation.
2.Screen  pack changer design is   reliable,  safe in operation and change the fitter screen easier.
3.Various functional parts may be installed  to  the  lies.,such as length counting device, vertical cutting device,  cooling  water  row  pipe,  film  spreading roller, scrap collecting device.


Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.It is optimum designed on the trounds  of  preference  of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in  fold  width 0.08mm in the thickness packaging films, film has good insulation, for instance holding temperature,  antihumid, antibreeze, anti-rain,anti-rost, insulation oxygen,oil resistive, and so used for light and heavy-duty packaging,  for example fresh fruits, meat-feeding,salt  vegetables, fresh milk, drink.


Main Technical parameter:
ModelUW-3L45UW-3L50UW-3L55UW-3L65
Suitable MaterialLDPE LLDPE HDPELDPE LLDPE HDPELDPE LLDPE HDPELDPE LLDPE HDPE
Film Width600-1000mm800-1500mm1000-1800mm1500-2500mm
Film Thickness0. 03-0.20mm0.03-0.20mm0.05-0.20mm0.05-0.15mm
Max. Squeezing Amount Of Single Screw Rod 80-120kg/hr  120-150kg/hr 150-180kg/hr 180-250kg/hr
Screw Diameterφ45/50/45φ50/55/50φ55/60/55φ65/70/65
Screw L/D Length30:130:130:130:1
Screw MaterialSACM-645/38 CRMOALASACM-645/38 CRMOALASACM-645/38 CRMOALASACM-645/38 CRMOALA
Cylinder MaterialSACM-645/38 CRMOALASACM-645/38 CRMOALASACM-645/38 CRMOALASACM-645/38 CRMOALA
Cylinder Cooling370×2550×2550×3550W×4
Driving Motor18.5/22/18.5Kw22/30/22Kw30/37/30Kw37/45/37Kw
Temperature Control3444
Average Power-Consme55Kw68Kw90Kw130Kw
Die Sizeφ250/200φ300/350φ500φ600
Temperature Control3344
Air Ring1111
Air Blower5.5Kw7.5Kw7.5Kw11Kw
Roller Widthφ165×1100φ165×1600φ180×2000φ220×2600mm
Effective  Width1000mm1500mm1800mm2500mm
Take-up Speed10-65m/min10-65m/min10-65m/min10-40m/min
Take-up Motor1.5Kw1.5Kw2.2Kw2.2Kw
Height Adjustable  Type800mm800mm700mm700mm
Winding Motor10N.m16N.m20N.m30N.m
Winding Speed10-65m/min10-65m/min10-65m/min10-65m/min
Overall Dimension (L×W×H)6.5×5.5×6.5m7.5×5.8×7.5m7.8×6.4×7.5m8.5×7.2×10m

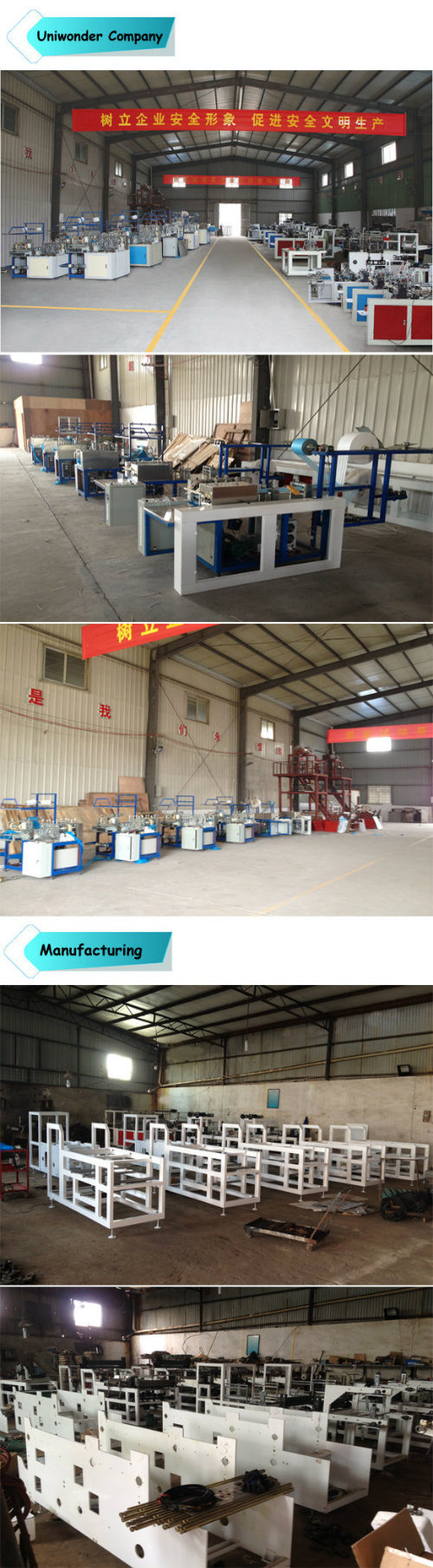

RUIAN UNIWONDER Machinery Co., Ltd. is located in the East China Sea south of Zhejiang historic city RUIAN; Which set packing machinery, plastic machinery, printing machinery, such as scientific research and development, manufacturing, sales and after-service in one of Omni-directional and multi-purpose new technology enterprise.
