Product Specifications
| Prod Model: |
SJ-50x3/FM1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Maximum Folding Width Of Film: |
1500mm |
| Screw Diameter: |
75mm |
| Machine Weight: |
4T |
| Type: |

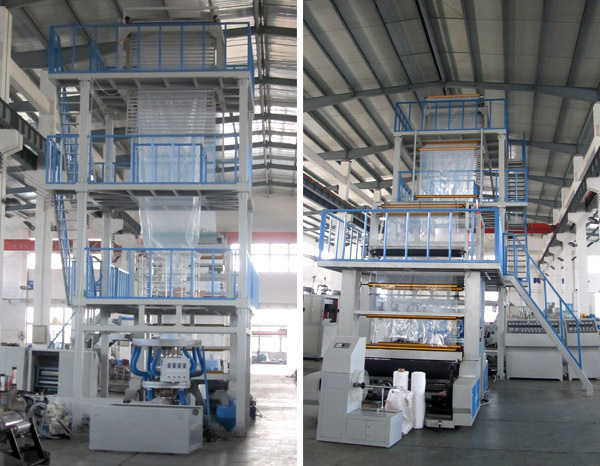

Multi-Layer Co-extrusion Film Blowing Machine |
| Certification: |
CE |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Raw Material: |
HDPE/LDPE/Plastic.etc |
Product Description
Use:
The lines are designed and developed by our corporation according to market command, they reach the advanced levels in the 90s, come up with analogous lines in Home. It is optimum Designed on the trends of preference of analogous lines in foreign and Home. The lines can be blown continuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, Baby horizontal extrusion up blown. The film has good in sudation, for instance holding temperature, anti-humid, ant-breeze, anti-rain, anti-roost, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt, vegetables, fresh milk and beverage.
Characteristics:
1. Die head is layer type spiral mandrel, continuous 360, rotation.
2. Screen pack changer Design is rational convenience, reliable, safe in operation.
3. Various functional parts may be installed to the lies, such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.
Model
|
SJ-45x3/FM1000
|
SJ-50x3/FM1200
|
SJ-55x3/FM1500
|
Screw Diameter
|
45mm
|
55mm
|
55mm
|
Screw Ratio
|
L/D30:1
|
L/D30:1
|
L/D30:1
|
Screw Speed
|
15-150r/min
|
15-150r/min
|
15-150r/min
|
Power of Main Motor
|
11Kwx3
|
15Kwx3
|
18.5Kwx3
|
Range of Die
|
130 180
|
130 250
|
130 300
|
die-sided Thickness of Film
|
0.01-0.10mm
|
0.01-0.10mm
|
0.01-0.10mm
|
Max. Folding Width of Film
|
1000mm
|
1200mm
|
1500mm
|
Electric Total Capacity
|
76Kw
|
88Kw
|
102Kw
|
Weight of Machine
|
4200kg
|
5300kg
|
6200kg
|
Overall Dimensions(L*W*H)
|
6600x4100x5000mm
|
6800x4300x6000mm
|
7000x4800x6800mm
|
XINYE, as it may be, A Level Industry & Trading Co., Ltd has a senior team, consisting of professionals engaged in this line for 20 years, and striving to offer the exceptional service to our clients who are located in 5 continents, more than 60 countries. Our products have gained ISO9000, CE certificates.
Major products:
1) bag making machine which can produce as following:
Soft loop handle bags, carry bags, patch bags, string-draw bags, envelope bags, pillow bags, PVC shrinkable bags, arc-shaped bags, flat bags, vest bags( t-shirt bags), bubble bags, rolling vest &flat bags, garbage bags, disposable glove.
2)Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE Dual-purpose Film Blowing Machine, High Speed Film Blowing Machine Unit; 2 and 3 layer co-extrusion film blowing machines
4) Others: Auto Slitting and Rewinding Machine, Hem Folding Machine, Material Cutting and Punch Machine., Grinder.
We are willing sincerely to execute extensive technical exchange and cooperation with users both at domestic and overseas, as well as supply the best productions and services to them.
