Zhejiang Bangtai Machine Co., Ltd. >> Three-Layers Common-Extruding Rotary Die Film Blowing Machine (3SJ-G1000) (CE)

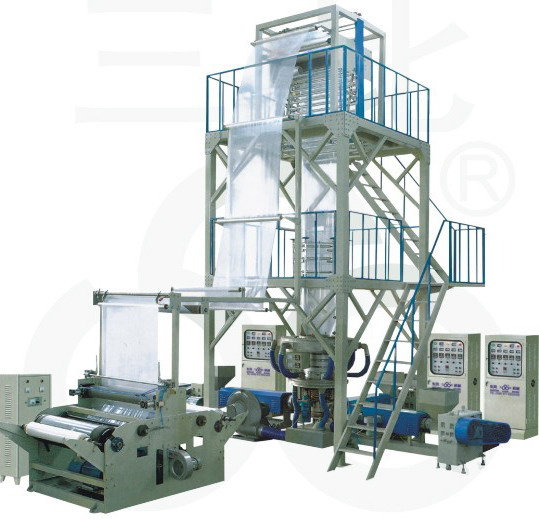

Three-Layers Common-Extruding Rotary Die Film Blowing Machine (3SJ-G1000) (CE)

Name: Three-Layers Common-Extruding Rotary Die Film Blowing Machine (3SJ-G1000) (CE)
Brand: china-manufacturer-directory.com
SKU: 606570874
Availability: InStock
Rating: 4.9 (145 reviews)

Supplier:	Zhejiang Bangtai Machine Co., Ltd.
Price:	US $ 50000-75000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	3SJ-G1000, SJ-G1200, SJ-G1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	PE Film Blowing Machine
Certification:	SGS
Automation:	Automatic
Raw Material:	PE
Computerized:	Computerized

Product Description

Film blowing machine:

Characteristics:

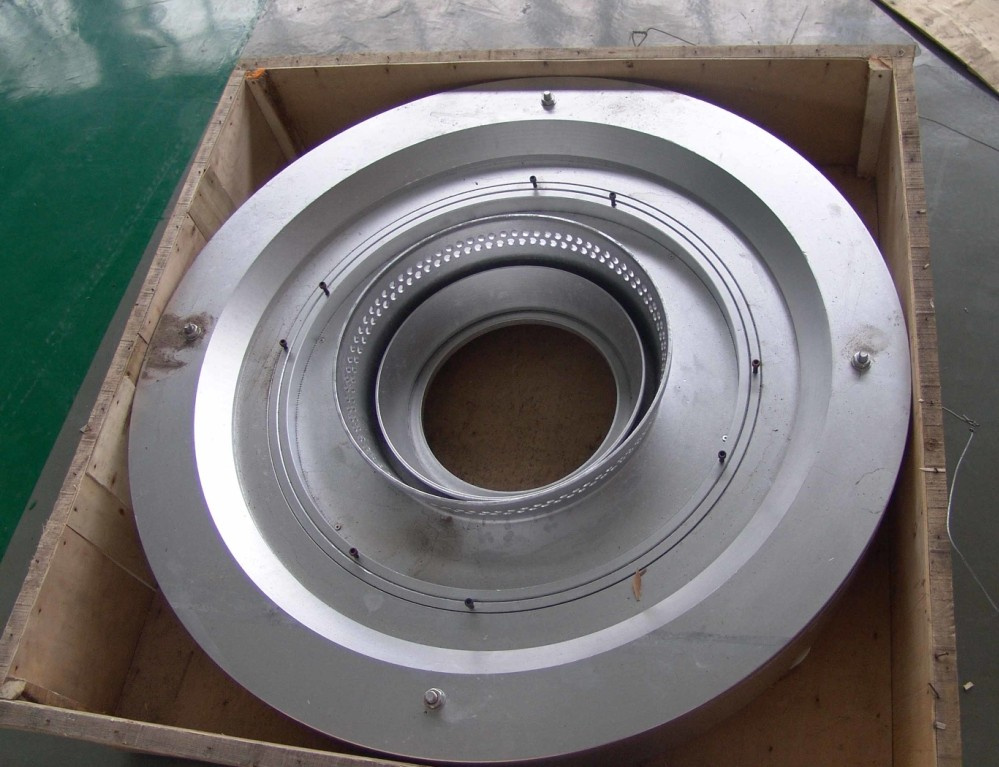

1. Die head is layer type spiral mandrel, continuous 3600 rotation.
2. Screen pack changer design is reliable, safe in operation and change the fitter
Screen easier.
3. Various functional parts may be installed to the lies., such as length counting
Device, vertical cutting device, cooling water row pipe, film spreading roller,
Scrap collecting device.

Use:
The Film blowing machine lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds of preference of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in fold width 0.08mm.
In the thickness packaging films, film has good insulation, for instance holding temperature, antihumid, antibreeze, anti-rain, anti-rost, insulation oxygen, oil.
Resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.

Model	3SJ-G1000	3SJ-G1200	3SJ-G1500
Screw Diameter	φ 55× 2 φ 60× 1	φ 60× 2 φ 65× 1	φ 65× 2 φ 70× 1
Screw Ratio L/D	28: 1	28: 1	28: 1
Screw Speed	15-150r/min	15-150r/min	15-150r/min
Main Motor Power	15KwX2 18.5Kw X1	18.5Kw X2 22Kw X1	22Kw X2 30KwX 1
Extrusion Output(Single)	50kg /h	80kg /h	100kg /h
Range of Die	φ 150 φ 200	φ 200 φ 250X1	φ 250 φ 300X1
Single-sided Thickness of Film	0.01 -0.10mm	0.01 -0.10mm	0.01 -0.10mm
Max. Folding Width of Film	1000mm	1200mm	1500mm
Electric Total Capacity	76Kw	88Kw	102Kw
Overall Dimension	6600X4100X 5000mm	6800X4300X6000mm	7000X4800X7500mm
Weight of Machine	4T	5T	6T

Zhejiang Bangtai Machine Co., Ltd. Was built in 1987, located in Zhejiang Ruian city --- the base of plastic packaging machines of China. Is a old and professional manufacturer for plastic packaging machines.

We are engaged in manufacturing Film Blowing Machine, Bag-making Machine, Printing Machine, bubble film making machine, Recycling Machine and so on complete sets of plastic packaging machines and equipments. Our machines have been exporting to East Europe, North America, South America, South-east Asian, Africa, the Middle East and so on, which without any exception, have been given good accomplishment by our customers and consumers.

Zhejiang Bangtai Machine Co., Ltd. Covers 14000 square meter, over 11000 square meter of which is building area, consisting

Over 200 staffs, 30 engineer for technical support. With the concept of "customers the first, reputation the life", we follow scientific management system in every proceeding, each machine is after strict testing before its delivery.

Our company is authorized CE Certificate and also ISO9001 certification. We have been also authorized to advanced enterprise in domestic market for 14 years. At the same time, Our registered Brand "SANBI"shows our efforts in Good Quality, Good Service and Good Price. Which is a famous brand in Zhejiang province.

Zhejiang Bangtai Machine Co., Ltd. Now win a big market both in domestic and overseas after 20 years efforts with powerful technical support and complete service system. We will sincerely do our best to offer best quality and service to every customer and consumer.
