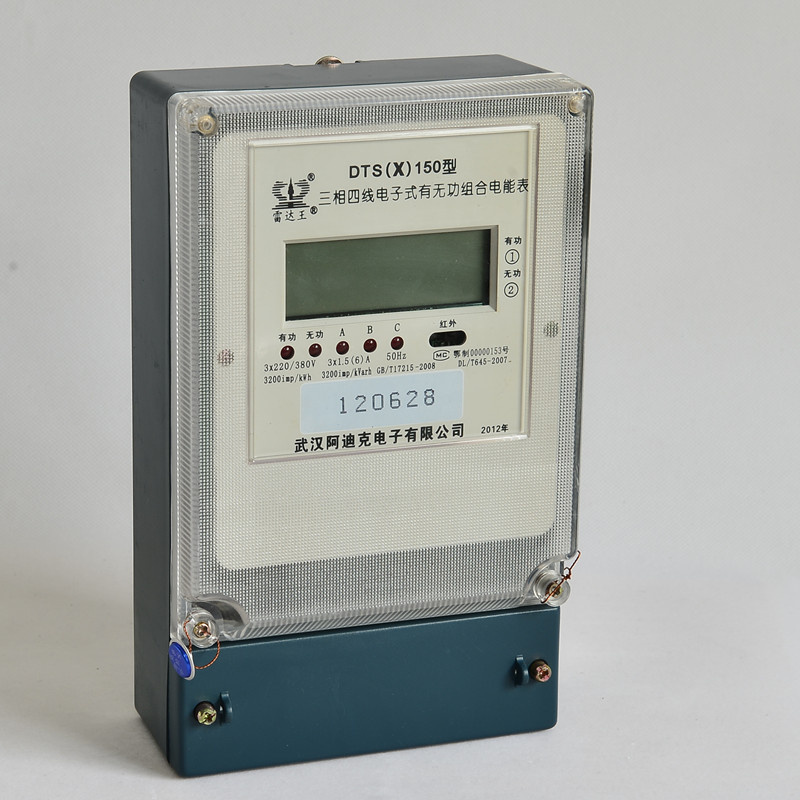

Three Phase Active and Reactive Energy Electric Kwh Meter
Product Specifications
| Prod Model: |
DTS(X)150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50Hz/60Hz |
| Voltage: |
3*220V/380V/Customized Data |
| Current: |
1.5(6)a/5(40)a/5(60)a/10(60)a |
| Accuracy Class: |
0.2s, 0.5s, 1.0(Active Power); 2.0(Reactive Power) |
| Power Consumption: |
Less Than 0.8W/Phase |
| Pulse Constant(Imp/Kwh): |
6400, 3200, 2400, 1600, 1200, 800, 400, 200 |
| Measurement: |
Positve Active and Reverse Active Power; Reactive |
| Display Method: |
LCD/LED |
| Communication: |
Infrared or RS485(Optional) |
| On-off Manner: |
Built in or External Switch Can Be Optional |
| Display: |
Digital |
| Installation: |
Direct Connected |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Pulse Peak |
| Type: |
Power Meter |
Product Description
Three phase Active&Reactive Energy Meter adopts the advanced special energy measuring chips and the multirate technology, using the date sampling and SMT technology. The product is designed and produced according to the practical situation of the dweller. All the elements inside the meter have the feature of long-life, high-reliance.
Function:- Measure PhaseA, B, C, total active power, total reactive power and total apparent power accurately;
- Measure the current and voltage of Phase A, B and C;
- Measure the average power of total active, total reactive and total apparent power respectively;
- Measure the total power factor and Phase A frequency;
- Controlled by Imported chip microcomputer and full-digitalized metering to realize anti-theft.
- Indicate overload current, overload voltage, the meter will be flashing when the voltage is over 380V or the current is over 1.25Imax;
- Three phase can supply power at the same time, the meter can work only one phase has power; also has the function of phase loss indicator;
- Have the function of remote digital impulsing output, configured with corresponding automatic meter reading system, monitor the working performance of meter in realtime.
- Power off memory function to ensure data last for 10 years;
- Consumption history recordable,and energy freeze function ;
- Communication Port: RS485 Or In-fared.
- Display Method: Backlit LED
| Applicable Standard | Active For GB/T17215-2002,
Reactive For DL/T645-1997 | Rated Voltage | 3*220V/380V |
| Working Voltage | 70-130% of Rated Voltage | Limited Working Voltage | 190% of Rated Voltage |
| Rated Current | 1.5(6), 5(20), 10(40), 15(60), 20(80)A | Rated Working Frequency | 50/60Hz |
| Impluse Constant | 3200, 800, 400imp/kWh | Accurancy Class | Class 0.5, 1.0 For
Active,Class 2.0 For Reactive |
| Power Consumption | ≤0.8W*3 | Starting Current | ≤0.004lb |
| Anti-creeping | Has the function of logical anti-creep | Size | 219mm*143mm*73mm |
Wuhan Radarking Electronics Corp. is a high-tech corporation which established in 2002. As professional manufacture in meters, our mainly products including: Full Digital IC Card Prepayment Electronic Meters, Smart Electronic Meters, IC Card Prepayment Water Meters, Gas Meters as well as Meter (network) Reading System. We are one of the few manufacturers in Hubei Province whose annual production of electronic meters and water meters can be up to 2.4 million sets.
Employee: There are more than 200 employees including 50 technicians, 10 senior technical staff and 70 employees who have already got college degree, 30 of them obtained metrological verification certificate. Production and technical staff all undergo a rigorous pre-service training, who are skilled and have a strong sense of quality.
Technology: We have a R & D group of 20 persons (About 10% of the company's employees).
Equipment: We have 260 sets of production and testing equipments, including 7 production lines, more than 20 units of the calibration device such as wave soldering machine, reflow soldering machine, automatic placement machine, plug-in assembly lines, assembly lines, packing lines and etc, which have all meet the production requirement.
Material: Materials are in strict accordance with the requirements of the meters and the procurement of national standards, we have already established a qualified supplier evaluation system, and developed a series of test standard. All the materials have to pass strict test before entering into factory, and then be used in production. Measures have been taken to prevent damp and static electricity to ensure the normal performance of the raw materials.
Craft: To make a variety of electronic meters in accordance with the production process, we have developed process documents, to ensure the quality of the products.
Test: We have electronic meter laboratory and full range of test equipments, such as EMC Equipment (ESD, EFTB, SURGE, RF, Attenuation Oscillasion Impulse, DIP, Impulse Current, Pulsed Voltage and etc), Environmental Test Equipment (Alternating Temperature Humidity Test Chamber, Dust Test Devices, Waterproof Test Device, Shock Test Device, Vibration Test Device and etc), R&D Testing Equipment. We make a variety of electronic meters in accordance with the test and develop our test documents to ensure the quality of the products.
Environment: Our production base covers an area of 30 acres, and self-building workshop covers an area of 7000 square meters, production and storage area covers more than 5000 square meters.
Management: We have a high efficiency, innovative, serious management team, and the factory has already passed ISO9001-2008 QMS.
