Product Specifications
Prod Model: |
SEM131 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand Name: |
Saip |
Model Number: |
Sem131jc/Mc/MB/Oc |
Phase: |
Single |
Frequency: |
50/60Hz |
Rated Impulse Voltage: |
6kv |
Type: |
Energy Meter |
Display: |
Digital |
Electric Equipment: |
Single-phase |
Theory: |
Electronic Meter |
Usage: |
Standard Electric Energy Meter |
Measured Signal: |
Continuous Wave |
Power Meter Connection: |
Terminal |
Installation: |
DIN Rail |
Product Description

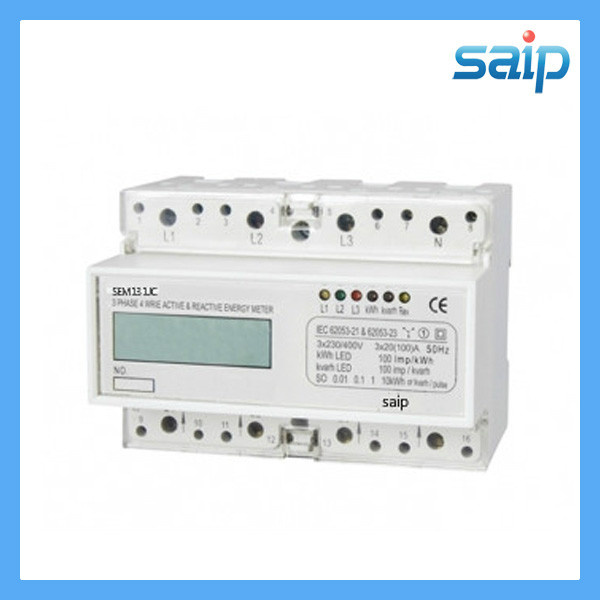

Three Phase Active & Reactive Integration Energy Meter (SEM131)
1. Application
The SEM131 series electricity energy meter is DIN rail three phase electronic active & reactive integration energy meters. SEM131 series electricity energy meter adopts many advanced technologies of research and development, like microelectronic-techniques, specialized large-scale IC (integrated circuit), digital sampling and processing technology, SMT technique, and so on. SEM131 series electricity energy meter technical performances completely conform to International Standards IEC 62053-21 for Class 1 three phase active energy meter and International Standards IEC 62053-23 for Class 2 three phase reactive energy meter. SEM131 series electricity energy meter can accurately measure the load active energy and reactive energy in three phase four wire AC networks of rated frequency 50Hz or 60Hz. The SEM131 series electricity energy meter has multiple configurations for option, to be suitable with the various market demands. SEM131 series electricity energy meter has features with excellent long-term reliability, small volume, light weight, perfect appearance, easy installation, etc.
2. Functions and Features
√ SEM131 series electricity energy meter; Available as 35mm DIN standard rail mounted, conforming to Standards DIN EN 50022, as well as front PANEL mounted (the center distance between two mounting holes is 63mm). Two mounted methods above are optional for user.
√ SEM131 series electricity energy meter; 10 pole width (modulus 12.5mm), complying with Standards JB/T7121-1993.
√ SEM131 series electricity energy meter; Can select the inside far infrared data communication port and RS485 data communication port. The communication protocol complies with Standards DL/T645-1997. The other communication protocol can also be option.
√ SEM131 series electricity energy meter; S-connection (inlet wire from bottom and outlet wire on top) has two types: Direct connection and CT connection for option. For CT connection, there are 27 kinds CT rates to set, after setting CT rate, we can read the meter directly, no need multiplying the CT rate.
√ SEM131 series electricity energy meter; The direct connection meter is 6+1 digits (999999.1) LCD.
√ SEM131 series electricity energy meter; The CT connection meter is 7 digits LCD display: 5+2 digits (only at CT rate is 5: 5A) or 7 integers, depended on the setting CT rate.
Model |
Accuracy |
Reference
voltage (V) |
Current
specification (A) |
Starting
current (A) |
Insulation
performance |
SEM131JC/JB/MC/MBNC/OC |
Active Class 1
Reactive Class 2 |
3×400
3×230/400 |
CT/5
10(60)
20(120) |
0.01
0.04
0.08 |
AC voltage test 4kV for 1 minute, 1.2/50us waveform impulse voltage test 6kV. |
