Three Phase Digital Energy Meter (ADM100TCR)

Product Specifications

Prod Model:	ADM100TCR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Width:	12.5mm
Type:	Energy Meter
Display:	Indicator
Electric Equipment:	Single-phase
Theory:	Electronic Meter
Installation:	Direct Connected
Usage:	Watt-Hour Meter
Measured Signal:	Continuous Wave
Power Meter Connection:	Terminal

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Application

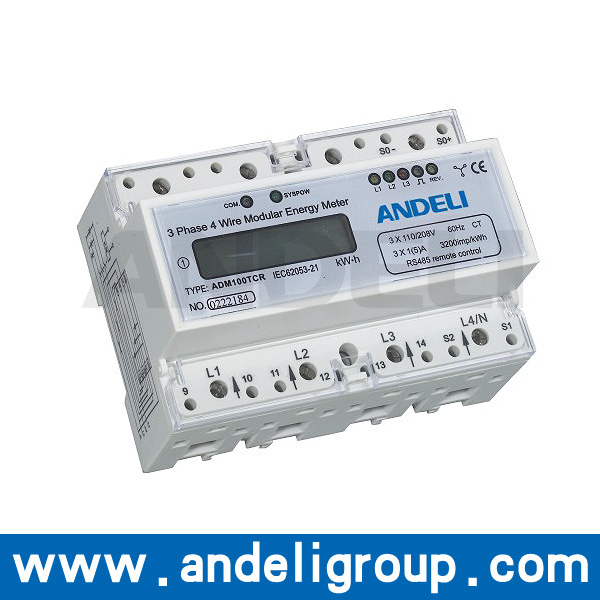

Type ADM100TCR three phase four wire electronic Din rail active energy meter is a kind of new style three phase four wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit. Use advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights, The meter completely accord with relevant technical requirements of class one three phase active energy meter stipulated in international standard IEC 62053-21, It can accurately and directly measure 50Hz or 60Hz active energy consumption from two phase three wire AC electricity net. This meter has seven digits LCD displays shows the active energy consumption., And with far infrared and RS485 communication module. And convenient to all kinds of AMR system connection, It has following features: Good reliability, amall volume, light weight, specious nice appearance, convenient installation, etc.

Functions and features

- 35mm standard DIN rail installation, complying with standard DIN EN50022. Or front board setting (mounting holes center distance 63mm), users can choose any one by themselves.
- 10 pole width (Modules 12.5mm), complying with standard JB/T7121-1993
- May select 6+1 digits diaplay (99999.1 kWh) or 5+2 LCD displays. Setting the far infrared or RS485 data communication port by the users. May select backlight function.
- With RS485 interface, with remote power managenment control function. Remote cut-off function, the customer may develop the secondary epistatic machine software to realize intelligent terminal application.
- Equipped with a far infrated data communication port and a RS485 data communication port, the standard communication protocol configuration with DL/T645-1997 standard, can choose other communication protocol.
- Five LED respectively indicating power state and close power pulse signal and remote power pulse signal and data communication state.
- Automatic Detecting the direction of the trend of load current, And instructions by separate LED.
- Single direction two elements measure two phase two wire active power consumption. It is nothing with direction of the trend of load current. Complying with standard IEC 62053-21
- Standard configuration type S wiring (Inlet from bottom, outlet from top) for direct connect operation, we can also choose another type of connection, and use CT (product configuration code is IC) and PT& CT (product configuration code is HC) for operation.
- Standard configuration short terminals cover.
