Product Specifications
| Prod Model: |
DTSD726 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage(V): |
220/240 |
| Rated Current(a): |
3X1.5(6),3X5(20),3X10(40),3X15(60) |
| Rated Frequency(Hz): |
50 or 60 |
| Accuracy Class: |
Class 1 or Class 2 |
| Way Of Display: |
Register,LCD,Digital |
| Interface: |
RS485 |
| Weight(Kg): |
0.5-0.6 |
| Volume(Mm): |
155.5X110X167 |
| Type: |
Energy Meter |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Installation: |
Portable Precise |
| Usage: |
Watt-Hour Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
| Display: |
LCD |
Product Description

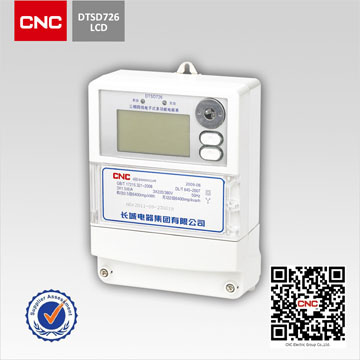

Three-phase Electronic Multi-function Watt-hour Meter DTSD726
Key Words: Watt-Hour Meter, meter, power meter, multi meter, electronic meter, kwh meter, Multi-Function Watt-Hour Meter, multi-function meter, energy meter, three phase meter.
General
The DTSD726,DSSD726 type three-phase electroic multi-function watt-hour meter is a new type of multi-function meter;
It accords with the correlative standard, rules of the nation. It has the function as high-accuracy, well stability, advanced technology
and easy operation.
Function and features
2.1 Forward direction, reverse direction and 4 quadrants are reactive power and max demand, the time of max demand;
2.2 Spit phase measuring;
2.3 4 rates, 4 time zones, 6 time period, 10 day time, 12 pubic holidays;
2.4 Measuring power, demand, power factor at current time;
2.5 The data can be congeal automatically and recording data within 12 months;
2.6 The active forward & reverse direction and the reactive 4 quadrants output via pulse. The pulse width can be setup by controller or Rs485;
IEC61036 and IEC61038 standards.
1) Voltage range: Sing phase 220V/ three phases 380V
A) Specified operating range: 0.85Un~1.1Un
B) Limit range of operation: 0.75Un~1.15Un
2) Rated frequency: 50Hz
3) Starting current: 0.004Ib
4) Power consumption in voltage circuit: ≤ 2W or 2.5VA
5) Power consumption in current circuit: ≤ 2.5VA
6) Dimensions (L x W x H): 164.5 x 112 x 71mm
7) Net weight: 0.7kg
8) Clock accuracy: Daily timing error less than 0.5s (reference temperature)
9) Battery capacity: ≥ 1, 000mAh
10) Data preservation: ≥ 10 years
11) Temperature range:
12) Specified operating range: -25 ~ +55 C
13) Limit range of operation: -40 ~ +70 C
Rated current (A) |
3X1.5(6), 3X5(20), 3X10(40), 3X15(60), 3X20(80), 3X30(100) |
Rated voltage (V) |
Three-phase three-wire 3× 100V or 3× 380V Three-phase four-wire 3× 220/380V or 3× 57.7/100V |
Rated frequency (Hz) |
50 or 60 |
Accuracy class |
Active: 0.5 Reactive: 1.0 or Active: 1.0, Reatctive: 2.0 |
Clock error |
≤ 0.5sec/per day(reference temperature); ≤ 1.0ssec/ per day(the backup lithium battery working time) |
Battery |
Imported lithium battery: Voltage: 3.0V or 3.6V: Capacitance≥ 1000mAh; 1200bps~19200bps. It has the program both inside
and outside; Update the date per0.01 degree; Two sets of battery keep the clock and relative date: setup the alarm data of the
battery. Loss and press blanking timing and electric consumption rate switches over time in the minimum interval for one minute. |
