Product Specifications
| Prod Model: |

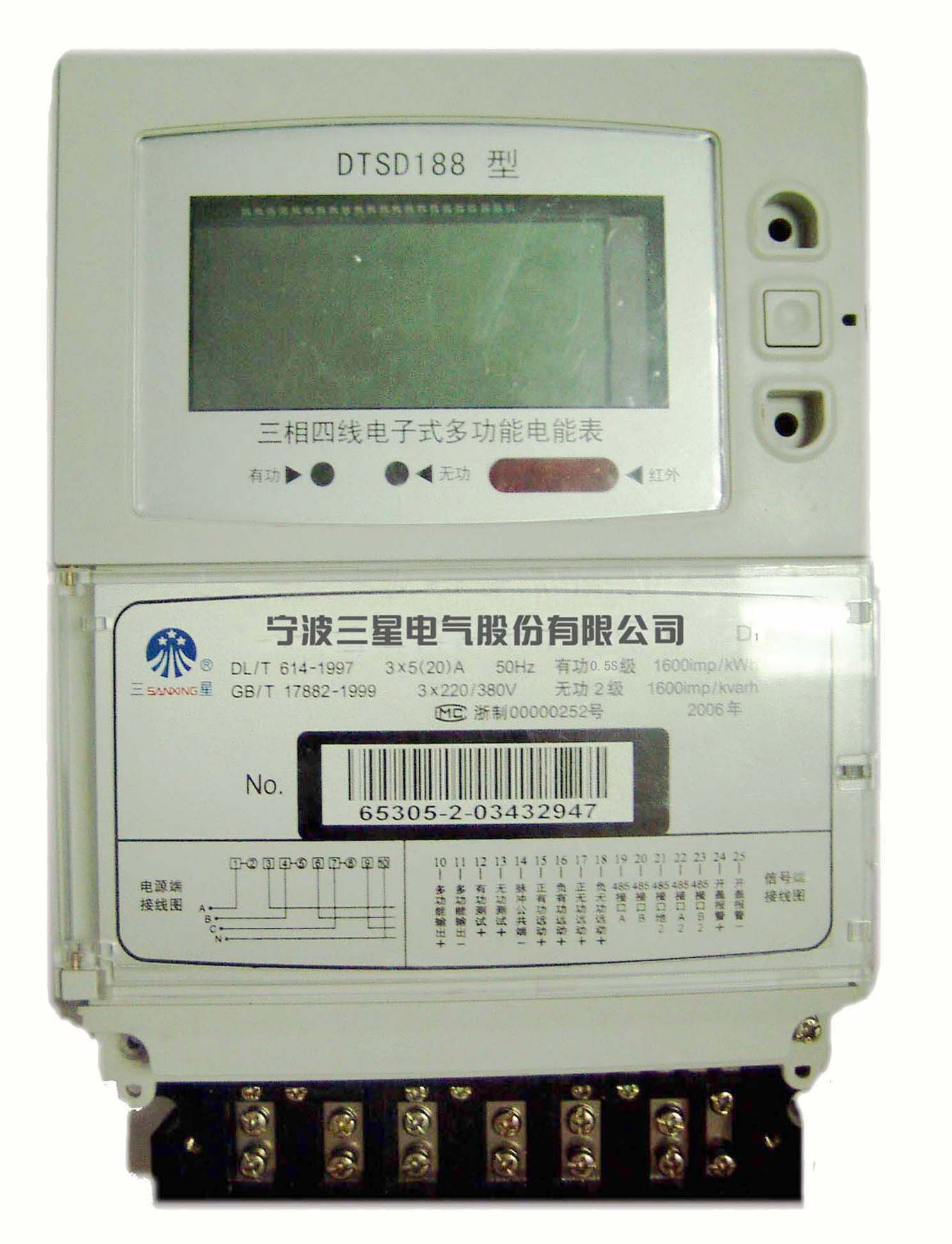

DTSD188 D1 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Electric Equipment: |
Three-phase Four-wire |
| Installation: |
Direct Connected |
| Power Source: |
AC Meter |
| Theory: |
Static Meter |
| Usage: |
Multi-rate Watt-hour Meters |
Product Description
Conformed Standards
@IEC 60687: 1992: Alternating Current Static Watt-Hour Meters for Active Energy (classes 0.2S and 0.5S)
@IEC 62053-23: 2003: Static Meters for Reactive Energy (classes 2 and 3)
@DL/T645-1997: Multi-Function Watt-Hour Meter Communication Protocol
@DL/T614-1997: Multi-Function Watt-Hour Meter
@IEC60529: Degrees of Protection Provided by Enclosures IP code
Main Features
@Forward/reverse active/reactive energy measurement, total active/reactive energy measurement, 4-quardrent reactive energy measurement
@Independent phase energy and tariff energy (active/reactive) measurement
@Forward/reverse active/reactive MD measurement with programmable demand interval
@Programmable tariff (peak/off-peak/valley), TOD, season, and holidays
@Accurate RTC (real-time clock & calendar) with optional temperature compensation
@Instantaneous parameter measurement: RMS voltage, RMS current, power factor, frequency, power
@Event detection and record: Potential missing, current missing, over voltage, over load, voltage qualification rate, meter configuration, MD reset, power on and off, cover opening, imbalanced current, etc
@Meter awaking by push-button or IR under power failure condition and accessible, current detection when all phase voltages failure, scroll-display and push-button display
@Load profile: 7 types of data(refer to User Manual), up to 12 months' demand and energy data records
@Insulated double RS485, remote IR, second pulse output for RTC accuracy verification, energy pulse output for accuracy verification, remote load controller, the demand interval and TOD switching pulse output
@Instantaneous and periodically energy consumption reset, forward active energy frozen when season switching, operational time of backup battery record
@Data Security: Multiple passwords authorization management
@For details, please refer to User Manual
Accuracy Class
| Active
| 0.5S
| Starting Current
| 0.001In(Active 0.5)
|
Reactive
| 2.0
| 0.003In(Reactive2.0)
|
Rated Voltage
| 3×100V 3×57.7V/100V 3×220V/380V
| RTC Accuracy
| 0.5s/d(23)
|
Backup Battery
| 3.6VDC,Cap.≥1000mAH
|
Normal Operational Voltage
| 0.7Un~1.2Un
| Fast Transient Burst
| 4kV
|
Limited Operational Voltage
| 0~1.3Un
| AC Voltage Test
| 2 kV
|
Current Specification
| 1.5(6)A , 5(20)A, 10(40)A, 15(60)A ,20(100)A
| Impulse Voltage Test
| 6kV
|
Surge Test
| 4kV
|
Power Consumption
| Voltage Circuit
| ≤1W/5VA
| ESD
| 8kV
|
Current Circuit
| ≤1VA
| Operational Temperature
| -25~55
|
Reference Frequency
| 50/60Hz
| Limited Temperature
| -40~70
|
Display
| LCD with optional backlight
| Storage Temperature
| -40~70
|
Net Weight
| ≈3.8kg
| Average Rel. Humidity
| ≤85%
|
Server Life
| 10 years
| Dimension
| 274mm×165mm×70mm
|
Ningbo Sanxing Electric Co., Ltd. Is a key branch company of the AUX Group, which was founded in 1986. With more than 4, 000 employees, Sanxing is one of the largest electric meter manufacturers in the world. Our production capacity is up to 25, 000, 000 pieces and our market share in China has reached 30%.
With more than 250 professional engineers and 8% of our total sales revenue invested in R&D, we were accredited as one of the National Technology Centers, which has developed various products and services from long-life mechanical meters to various kinds of digital meters, AMR and prepaid systems, and innovative project solutions. Sanxing prepaid systems have dominated the domestic market.
Sanxing has accelerated information processes. We have introduced Office Automation Systems, Enterprise Resource Planning Systems, Enterprise Human Resource Systems and Financial Management Systems to improve efficiency, and we have been named as a benchmarking enterprise by the Ministry of Information Industry of the PRC.
Having passed ISO9001-94 certification in 1997, ISO9001: 2000 certification in 2003 and KEMA certification in 2004, with a distinguished brand image and strict quality management system, Sanxing has established sales and service networks all over the country. Now, we export our products to many countries and regions, such as Asia, Africa, South America, and Europe.
We are looking forward to being the best supplier for you. We believe that with excellent corporate culture, Sanxing will develop into a well-known multi-national manufacturer in the electronics field.
