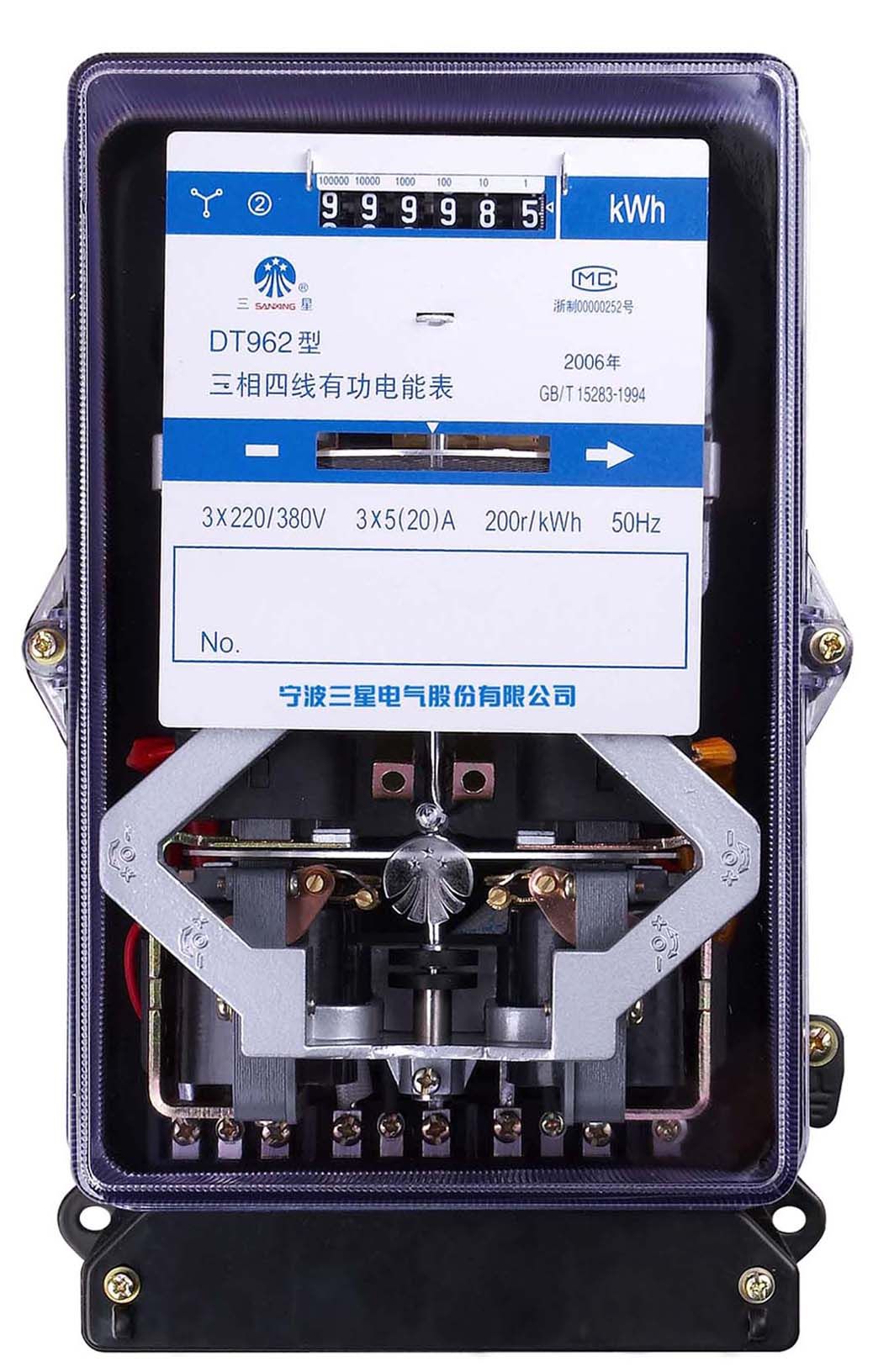

Product Specifications
| Prod Model: |
DT962 |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Electric Equipment: |
Three-phase Three-wire |
| Installation: |
Direct Connected |
| Power Source: |
AC Meter |
| Theory: |
Machine-electric Type |
| Usage: |
Meter for Industry and Home Use |
Product Description
Conformed standards
@iec 60521: 1988: Class 0.5, 1 and 2 alternating-current watt-hourmeters
@iec60529: Degrees of protection provided by enclosures
Technical data of dt962
Mechanical meters, energy meters, kwh meters
Model
| DT962
|
Current Specification
| 1.5(6)A,3(6)A,5(20)A,10(40)A,15(60)A,20(80)A,30(100)A
|
Rated Voltage
| 3×220/380 V 3×230/400V 3×240/415V
|
Rated frequency
| 50Hz
|
Starting current
| ≤0.005Ib
|
Basic revolution r/min
| 13.3r/min
|
Maximum impulse voltage
| 6KV
|
Power loss of voltage coil
| <1.4W 6VA
|
Accuracy class
| Class 2.0
|
Temperature range
| -30~55
|
Relative humidity
| 95
|
Outside dimensions
| 320mm×185mm×140mm
|
Life
| More than 20 years
|
Net weight
| 3.654kg
|
Ningbo Sanxing Electric Co., Ltd. Is a key branch company of the AUX Group, which was founded in 1986. With more than 4, 000 employees, Sanxing is one of the largest electric meter manufacturers in the world. Our production capacity is up to 25, 000, 000 pieces and our market share in China has reached 30%.
With more than 250 professional engineers and 8% of our total sales revenue invested in R&D, we were accredited as one of the National Technology Centers, which has developed various products and services from long-life mechanical meters to various kinds of digital meters, AMR and prepaid systems, and innovative project solutions. Sanxing prepaid systems have dominated the domestic market.
Sanxing has accelerated information processes. We have introduced Office Automation Systems, Enterprise Resource Planning Systems, Enterprise Human Resource Systems and Financial Management Systems to improve efficiency, and we have been named as a benchmarking enterprise by the Ministry of Information Industry of the PRC.
Having passed ISO9001-94 certification in 1997, ISO9001: 2000 certification in 2003 and KEMA certification in 2004, with a distinguished brand image and strict quality management system, Sanxing has established sales and service networks all over the country. Now, we export our products to many countries and regions, such as Asia, Africa, South America, and Europe.
We are looking forward to being the best supplier for you. We believe that with excellent corporate culture, Sanxing will develop into a well-known multi-national manufacturer in the electronics field.
