Yueqing Maxwel Electric Co., Ltd. >> Three Phase Low Voltage Power Capacitor

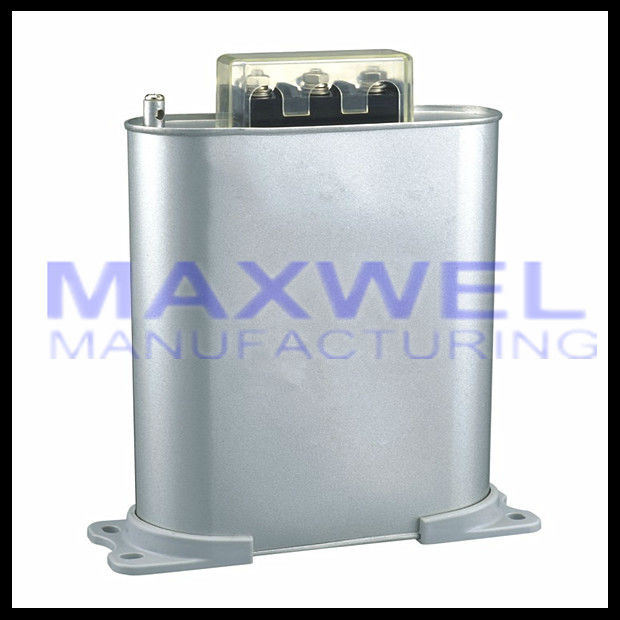

Three Phase Low Voltage Power Capacitor

Name: Three Phase Low Voltage Power Capacitor
Brand: china-manufacturer-directory.com
SKU: 742096845
Availability: InStock
Rating: 4.6 (92 reviews)

Supplier:	Yueqing Maxwel Electric Co., Ltd.
Price:	US $ 5/Roll
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	BSMJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-25~50 Deg C
Humidity:	Less Than 85% Rh
Altitude:	Lower Than 2000m
Capacity:	2.5kvar-50kvar
Type:	Polypropylene Capacitor
Application:	Power
Capacitance:	50-100uf
Package Type:	Surface Mount
Manufacturing Material:	Zn-Al Complexed Metallized Film

Product Description

Three phase low voltage power capacitor

Our self-healing type low voltage shunt capacitor, applied the advanced Zn-Al complexed metallized film, adopted foreign advanced production techology techniques and international IEC831-1(1996) Standards. The products are mainly suitable for low voltage electric
Network to improve power factor, reduce reactive loss, and improve the voltage quality.

Service condition:
Use indoor
Temperature range: -25° C~50° C
RH(humidity: Less than 85% RH)
Altitude: Lower than 2000m
Mounting Ambient: No harmless gas and steamed gas. No inductive and explosive dust, no violent vibration;

Models	NO minal voltage(KV)	Nominal capacity(kval)	Capacitance(UF)	Nominal current(A)	L	W	W	Contour Andreight(mm)
BSMJ0.4-5-3	0.4(50Hz)	5	9	7.2	170	57	110	85×40
BSMJ0.4-7.5-3		7.5	149	10.8	170	57	130	185×40
BSMJ0.4-10-3		10	199	14.4	170	57	180	185×40
BSMJ0.4-12-3		12	239	17.3	170	57	180	185×40
BSMJ0.4-14-3		14	278	20.2	170	57	210	185×40
BSMJ0.4-15-3		15	298	21.7	170	57	210	185×40
BSMJ0.4-16-3		16	318	23.0	170	57	210	185×40
BSMJ0.4-18-3		18	358	26.3	170	57	240	185×40
BSMJ0.4-20-3		20	398	28.9	170	57	240	185×40
BSMJ0.4-25-3		25	498	36.0	170	85	210	200×60
BSMJ0.4-30-3		30	598	43.3	170	85	250	200×60
BSMJ0.4-40-3		40	796	57.7	270	120	210	285×85
BSMJ0.4-50-3		50	995	72.2	270	120	230	285×85
