Accuracy:0.05%RG
AC Voltage Output:380V/220V/100V/57.7V
AC Current Output:20A/5A/2A/1A
Power Factor Output:-1~0-+1
Frequency Range:45Hz~60Hz
DC Voltage Output:600V/300V/100V/10V/75mV
DC Current Output:20mA/10mA/1mA
DC Voltage Input Test;±10V/±5V
DC Current Input Test:±20mA/±1mA
Working Temperature:0ºC~40ºC
Auxiliary Power:AC220V±15%
Dimension:3U:440mm*132mm*436mm
4U:440mm*177mm*370mm
Weight:3U:15kg
4U:19.5KG
Characteristic:

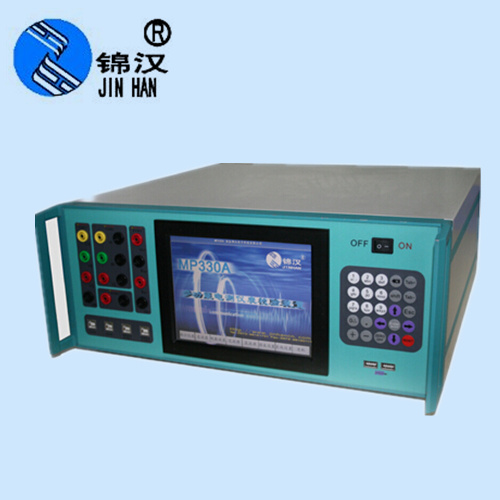

MP330A Three Phrase Multifunction Energy Meter Test Branch could test all kinds of meters as follows:
Electric Quantity Transducer:ac voltage/current transducer, 3p3w/3p4w watt transducer,var transducer,power factor transducer,frequency transducer,dc voltage/current transducer etc.
Electric power meter:single/3p3w/3p4w active/reactive power meter

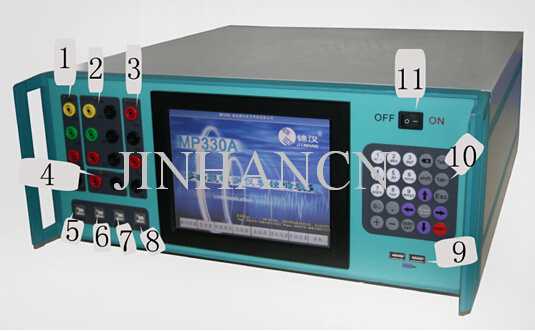

1.AC Voltage Output2.AC Current Output3.DC Voltage Output4.DC Current Output5.RS485 communication interface6.DC Test Input7.Measured Pulse Input8.Standard Electric Pulse Output9.Multifunction USB interface10.Multifunction keyboard11.Power Switch
Welcome to contact us for more detail information.
