| Supplier: | Hangzhou Tuozhi Electronic Co., Ltd |
|---|---|
| Price: | US $ 23/Piece |
| Min Order: | 1/Piece |
| Quantity:: | |
| Trade Terms: | FOB |
|
|

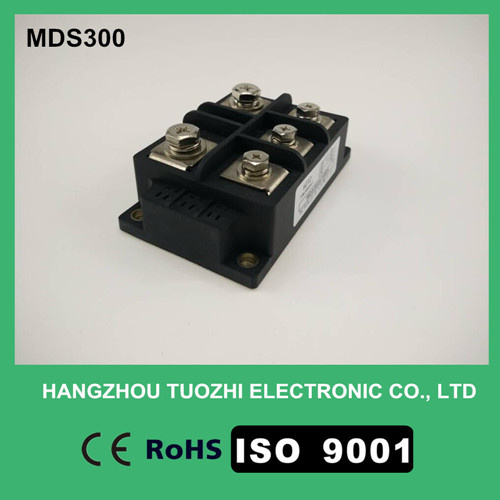

| Prod Model: | MDS300 |
|---|---|
| Enter Attribute Here (e.g.: Size): | Enter Value Here (e.g.: 12 Inches) |
| Symbol | Definition | Test condition | Junction temp.Tj (ºC) | Value | Unit | ||
| Min | Typical | Max | |||||
| IO | DC Output Current | Three phase full wave rectified current, Tc=100ºC | 150 | 300 | A | ||
| VRRM | Reverse repetitive peak voltage | VRRM tp=10ms VRSM=VRRM+200V | 150 | 1200 | 1600 | 1800 | V |
| IRRM | Reverse repetitive peak current | VRM=VRRM | 150 | 5 | mA | ||
| IFSM | On-state non-repetitive surge current | 10ms bottom width, sine half-wave | 150 | 3.9 | KA | ||
| I2t | surge current average time integration | VR=0.6VRRM | 150 | 7.75 | 103A2S | ||
| VFO | threshold voltage | 0.8 | V | ||||
| rF | slope resistance | 150 | 2.8 | mΩ | |||
| VFM | On-state peak voltage | IFM=300A | 25 | 1.15 | 1.35 | V | |
| Rth(j-c) | thermal impedance junction to case | 180°sine half-wave, Single-sided heat dissipation | 0.1 | ºC/W | |||
| Rth(c-h) | thermal impedance case to heatsink | 180° sine half-wave, Single-sided heat dissipation | 0.07 | ºC/W | |||
| Viso | Insulation voltage | 50HZ, R.M.S, t=1min Iiso:1Ma(max) | 2500 | V | |||
| Fm | mounting torque(M5) mounting torque(M6) | 4.0 6.0 | N·m N·m | ||||
| Tsbg | Storage temperature | -40 | 125 | ºC | |||
| Wt | weight | 700 | g | ||||
