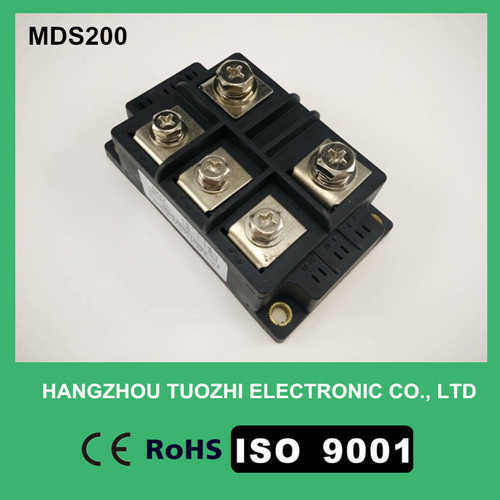

Three Phase Rectifier Bridge Module Mds200A 1600V

Name: Three Phase Rectifier Bridge Module Mds200A 1600V
Brand: China-Manufacturer-Directory.com
SKU: 705243792
Availability: InStock
Rating: 4.4 (132 reviews)

Supplier:	Hangzhou Tuozhi Electronic Co., Ltd
Price:	US $ 15/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	MDS200A
Enter Attribute Here (e.g.: Size):	Enter Value Here (e.g.: 12 Inches)

Product Description

Style No.: MDS200

Features:
Isolation voltage: 2500V~
Planar passivated chips.
Low forward voltage drop.
Package with screw terminals, space and weight saving.
Improved temperature and power cycling.

Application:
PWM frequency converter rectifying power, DC Power, Rectifying power, Battery Charging DC power etc.

Specification:

Symbol	Definition	Test condition	Junction temp.Tj (ºC)	Value			Unit
Symbol	Definition	Test condition	Junction temp.Tj (ºC)	Min	Typical	Max	Unit
IO	DC Output Current	Three phase full wave rectified current, Tc=100ºC	150			200	A
VRRM	Reverse repetitive peak voltage	VRRM tp=10ms VRSM=VRRM+200V	150	1200	1600	1800	V
IRRM	Reverse repetitive peak current	VRM=VRRM	150			15	mA
IFSM	On-state non-repetitive surge current	10ms bottom width, sine half-wave	150			2.1	KA
I2t	surge current average time integration	VR=0.6VRRM	150			22.1	103A2S
VFO	threshold voltage					0.8	V
rF	slope resistance		150			2.8	mΩ
VFM	On-state peak voltage	IFM=200A	25		1.15	1.35	V
Rth(j-c)	thermal impedance junction to case	180°sine half-wave, Single-sided heat dissipation				0.1	ºC/W
Rth(c-h)	thermal impedance case to heatsink	180° sine half-wave, Single-sided heat dissipation				0.07	ºC/W
Viso	Insulation voltage	50HZ, R.M.S, t=1min Iiso:1Ma(max)		2500			V
Fm	mounting torque(M5) mounting torque(M6)				4.0 6.0		N·m N·m
Tsbg	Storage temperature			-40		125	ºC
Wt	weight				420		g

Hangzhou Tuozhi Electronic Co., Ltd is a specialized manufacturer of electric elements. We have Advanced DC electrical components research and development laboratories and reliability experiment platform.

Hangzhou Tuozhi Electronic Co., Ltd located in Hangzhou, Zhejiang, China, have been specialized in semiconductor area almost 10 years, and we have got ISO9001, ISO14001, RoHS and CE certificate.

The main products include:

Thyristor module

Rectifier module

Thyristor/Diode module

Single-phase rectifier/three-phase rectifier

Bridge Rectifiers

Super Fast Recovery Rectifiers

Quick thyristor

MOS relay

Solid State Relay

Three-phase solid state relay elements

Smart voltage adjustment module

SCR phase-shift voltage regulator

Heatsinks

Instrument and apparatus

Photovoltaic defence-attack diode module
