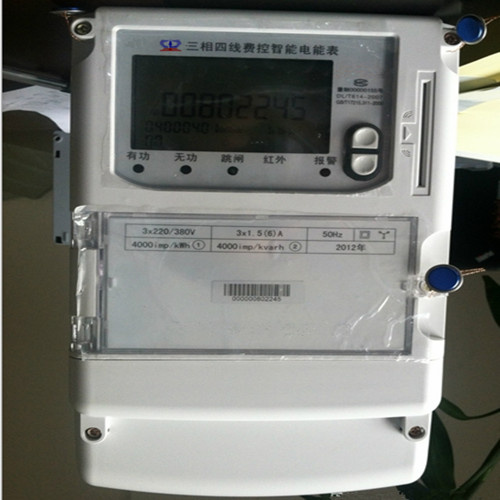

This kind of meter adopts large-scale IC circuit, RS485 communication ports with isolation, infrared communication port, LCD display with large screen and wide temperature scope, real-time clock chip, electromagnetic compatibility (EMC) and advanced SMT electronic components assembling technique. Based on fully consideration of user's power-consuming status and the EMC of power equipment, this new energy-measuring instrument is elaborately designed and manufactured in accordance with IEC standards, national standards and ISO9001 quality assurance system.
Measurement Function:
Time-Of-Use Measurement
1. Display and read instantaneous total energy of positive-active, reversal-avtive, positve-reactive, reversal-reactive and 4-quadrant reactive. TOU measurment for various total energy at maximum 8 tariffs.
2. Read total energy of positive-active and reversal-active for the current and previous 12 months. TOU measurment for various total energy at maximum 8 tariffs.
3. Display total energy and various tariffs energy of positive-active, reversal-avtive, positve-reactive, reversal-reactive and 4-quadrant reactive for current month, last month and month before last month.
4. Display and read the time of instantaneous freezing and zero-hour freezing and the total energy energy and various tariffs energy of positive-active, reversal-avtive, positve-reactive and reversal-reactive when freezing occurs.
Time-Of-Use measurement of Maximum Demand
Display and read the total maximum demand and various tariffs maximum demands and their occurrence dates and times of positive-active and reversal-avtive for current month, last month and month before last month.
Display and read the total maximum demand and the occurrence date and time of positive-reactive, reversal-reavtive and the 4-quadrant reactive for current month, last month and month before last month.
Balance Power Alarm
1. Two programmable alarm levels: Balance power alarm and balance power emergency alarm.
NMeter Event Recording
2. Detection and recording of cover opening, timing recording, programming event recording, maximum demand recording, time zone modifying recording, power purchasing recording, alarm recording and emergency alarm recording.
Power Grid Event Recording
Voltage loss recording, current loss recording, voltage failure recording, phase failure recording, unbalanced voltage recording and unbalanced current recording.
Power Freezing
Monthly freezing, daily freezing, hourly freezing and instantaneous freezing
Load control Function
Overload disconnection control, programmable threshold of load and maximum overload disconnection times.
Security Management Function
All programmes(excepts communication address, baud rate, timing broadcast or freezing) can only proceeded under the permission status. Builds with a three-level password protection and automatic wrong password lock-down mechanism.
Selectable Extended and Unextended Terminal Cover (Optional)
| Rated Voltage | 3×100V/3×220V/3×57.7V/3×230V/3×240V |
| Rated Current | 1A/5A |
maximum current
| 5(60)A/5(80)A/5(100)A |
| Rated Frequency | 50Hz |
| Class | class0.5s,2.0 |
| Communication | Optical/RS485 |
| Insulation protection grade | II |
| IP Lecel | IP 54 |
Display
| LCD |
| Range Temperature | Work Temperature -25-+65 centigrade
Storage Temperature -400-+70 centigrade |
Wuhan Radarking Electronics Corp. is a high-tech corporation which established in 2002. As professional manufacture in meters, our mainly products including: Full Digital IC Card Prepayment Electronic Meters, Smart Electronic Meters, IC Card Prepayment Water Meters, Gas Meters as well as Meter (network) Reading System. We are one of the few manufacturers in Hubei Province whose annual production of electronic meters and water meters can be up to 2.4 million sets.
Employee: There are more than 200 employees including 50 technicians, 10 senior technical staff and 70 employees who have already got college degree, 30 of them obtained metrological verification certificate. Production and technical staff all undergo a rigorous pre-service training, who are skilled and have a strong sense of quality.
Technology: We have a R & D group of 20 persons (About 10% of the company's employees).
Equipment: We have 260 sets of production and testing equipments, including 7 production lines, more than 20 units of the calibration device such as wave soldering machine, reflow soldering machine, automatic placement machine, plug-in assembly lines, assembly lines, packing lines and etc, which have all meet the production requirement.
Material: Materials are in strict accordance with the requirements of the meters and the procurement of national standards, we have already established a qualified supplier evaluation system, and developed a series of test standard. All the materials have to pass strict test before entering into factory, and then be used in production. Measures have been taken to prevent damp and static electricity to ensure the normal performance of the raw materials.
Craft: To make a variety of electronic meters in accordance with the production process, we have developed process documents, to ensure the quality of the products.
Test: We have electronic meter laboratory and full range of test equipments, such as EMC Equipment (ESD, EFTB, SURGE, RF, Attenuation Oscillasion Impulse, DIP, Impulse Current, Pulsed Voltage and etc), Environmental Test Equipment (Alternating Temperature Humidity Test Chamber, Dust Test Devices, Waterproof Test Device, Shock Test Device, Vibration Test Device and etc), R&D Testing Equipment. We make a variety of electronic meters in accordance with the test and develop our test documents to ensure the quality of the products.
Environment: Our production base covers an area of 30 acres, and self-building workshop covers an area of 7000 square meters, production and storage area covers more than 5000 square meters.
Management: We have a high efficiency, innovative, serious management team, and the factory has already passed ISO9001-2008 QMS.
