Product Specifications
| Prod Model: |
XL3000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Energy Meter |
| Display: |
Digital |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Installation: |
Direct Connected |
| Usage: |
Multi-Functional Energy Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
Product Description

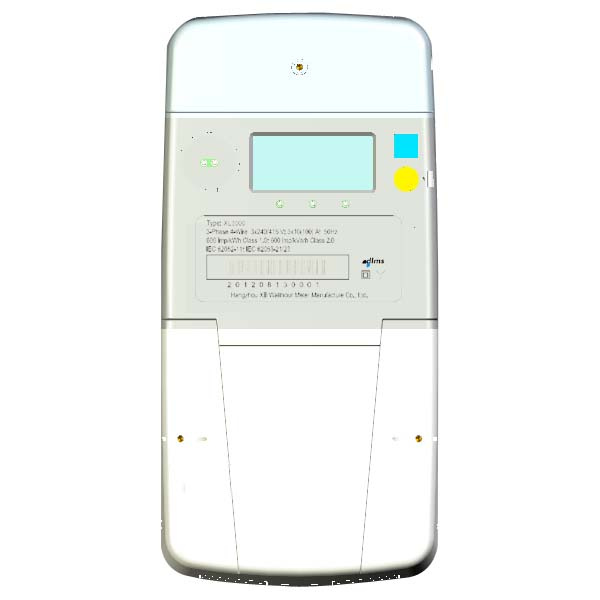

The XL3000 is a key component of any advanced metering or smart grid initiative, this design is a truly smart device used to collect, process and transmit vital energy information to Utility systems. With two-way communication based on open standard the XL3000 Meter enables remote management, load disconnection and reduced operating costs.
The XL1000 includes a separate compartment for exchangeable communication module from GPRS/CDMA to PLC, RF/Zigbee etc.
Key Features
Voltage: Optional auto-ranging power supply
Current 1 to 10 A (CT), 5 to 100 A ( DC)
Active & Reactive energy four-quadrant measuring
Network types: 3 or 4-wire meter configuration
Accuracy: Class 0.5 (CT); Class 1 (DC) Reactive energy: Class 2
Frequency: 50Hz or 60 Hz
Up to 3 outputs, Optical or RS 485 interface
Separate compartment for exchangeable communication module
Time Of Use and High resolution load profiling.
Complete revenue protection & anti-tamper feature set
Flexible configuration
Optional integrated latching relay for over load and/or remote control
Main Benefits
Compliant with DLMS/COSEM protocol
Two-way communication to enable advanced control capabilities.
Communication based on open Standards providing a secure and reliable approach to data collection.
Plug & play and easy field installation for improved operational efficiency.
Bi-directional metering for distributed energy resources.
Power Quality Monitoring.
Local management of Water, Gas, Heat Meters for Multi-Utility integration.
Local and Remote device configuration and firmware upgrade capability.
