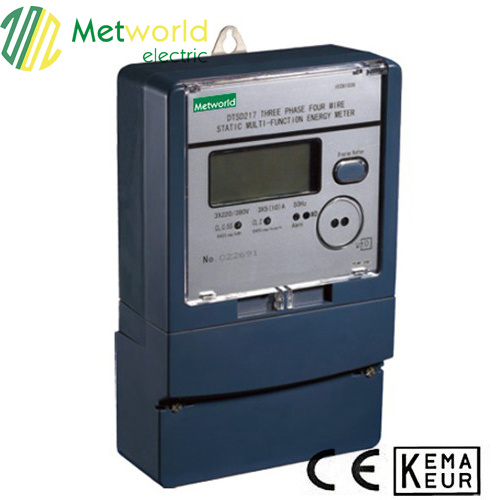

Three Phase Static Multifunction Energy Meter

Product Specifications

Prod Model:	DSSD217, DTSD217, etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Phase:	3
Class:	0.5,1.0,2.0
Operation Humidity:	≤100%Rh
Power Consumption:	<=2W
Clock Accuracy:	<=0.5s
Battery Capacity:	>=1000mAh
Category:	Thee Wire or Four Wire
Outlines:	293*175*80mm
Dimension:	Customized
Weight:	2.5kg
Display:	Digital
Installation:	Direct Connected
Usage:	Maximum Demand Meter
Electric Equipment:	Three-phase Three-wire
Theory:	Electronic Meter
Power Meter Connection:	Terminal
Measured Signal:	Continuous Wave
Type:	Energy Meter

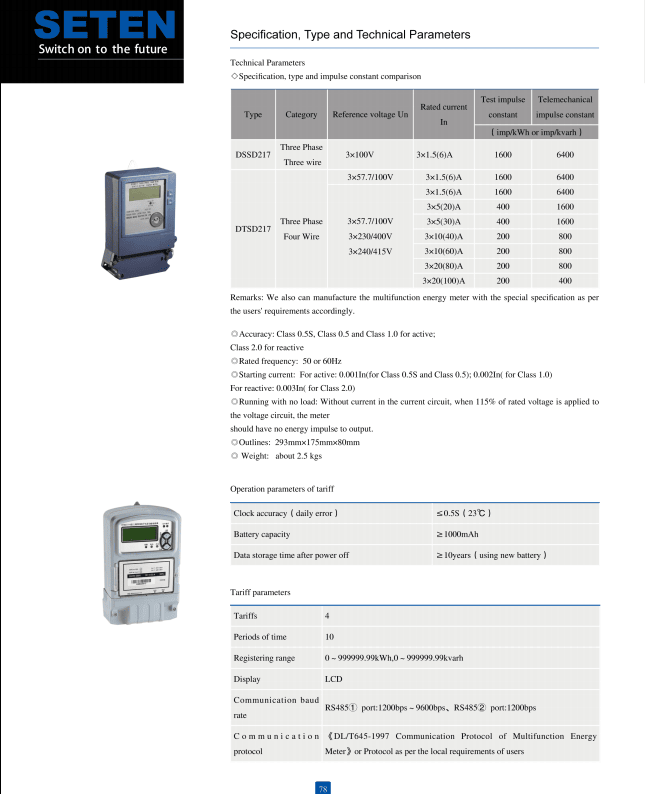

Product Description

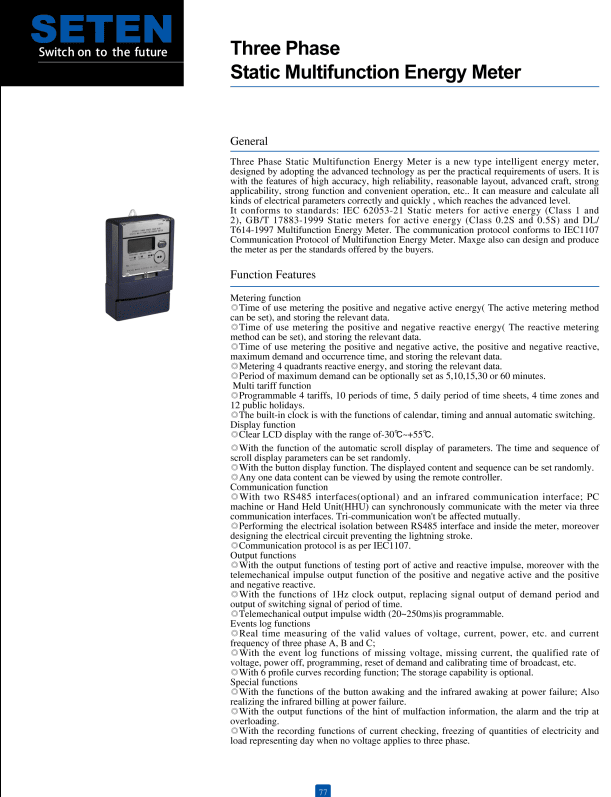

General
Three Phase Static Multifunction Energy Meter is a new type intelligent energy meter, Designed by adopting the advanced technology as per the practical requirements of users. It is With the features of high accuracy, high reliability, reasonable layout, advanced craft, strong Applicability, strong function and convenient operation, etc...It can measure and calculate all Kinds of electrical parameters correctly and quickly, which reaches the advanced level. It conforms to standards: IEC 62053-21 Static meters for active energy (Class 1 and 2), GB/T 17883-1999 Static meters for active energy (Class 0.2S and 0.5S) and DL/ T614 -1997 Multifunction Energy Meter. The communication protocol conforms to IEC11 07 Communication Protocol of Multifunction Energy Meter. Maxge also can design and produce The meter as per the standards offered by the buyers.

Phase	3
Class	0.2S and 0.5S
