Three Phase Static Prepaid Energy Meter Series

Product Specifications

Prod Model:	DDSY217, DTSF217
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation Voltage:	0.7un~1.3un
Rated Frequency:	50 or 60 Hz± 5%
Maximum Display Values:	999999.9
Porisesunr Consumption:	≤2.0W
Color:	White ,Grey
Material:	Customized
Standards:	IEC
Brands:	Metworld
Lifetime:	>10 Years
Category:	LCD or LED
Display:	Digital
Installation:	Direct Connected
Usage:	Maximum Demand Meter
Electric Equipment:	Three-phase Four-wire
Theory:	Static Meter
Power Meter Connection:	Feed-through Type
Measured Signal:	Continuous Wave
Type:	Energy Meter

Product Description

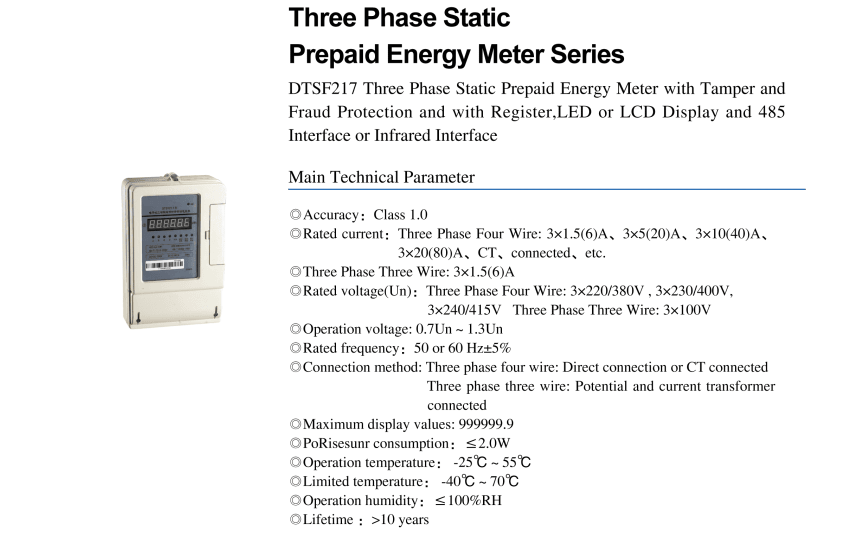

DTSF217 Three Phase Static Prepaid Energy Meter with Tamper and
Fraud Protection and with Register, LED or LCD Display and 485
Interface or Infrared Interface
Main Technical Parameter
Accuracy: Class 1.0
Rated current: Three Phase Four Wire: 3× 1.5(6)A, 3× 5(20)A, 3× 10(40)A,
3× 20(80)A, CT, connected, etc.
Three Phase Three Wire: 3× 1.5(6)A
Rated voltage(Un): Three Phase Four Wire: 3× 220/380V, 3× 230/400V,
3× 240/415V Three Phase Three Wire: 3× 100V
Operation voltage: 0.7Un~1.3Un
Rated frequency: 50 or 60 Hz± 5%
Connection method: Three phase four wire: Direct connection or CT connected
Three phase three wire: Potential and current transformer
Connected
Maximum display values: 999999.9
PoRisesunr consumption: ≤2.0W
Operation temperature: -25~55centigrade
Limited temperature: -40~70centigrade
Operation humidity: ≤100%RH
Lifetime: >10 years

Model	Phase	Accuracy	Rated current
DTSF217	three	1.0	3*1.5(6)A,3*5(20)A,3*20(80)A,etc.
