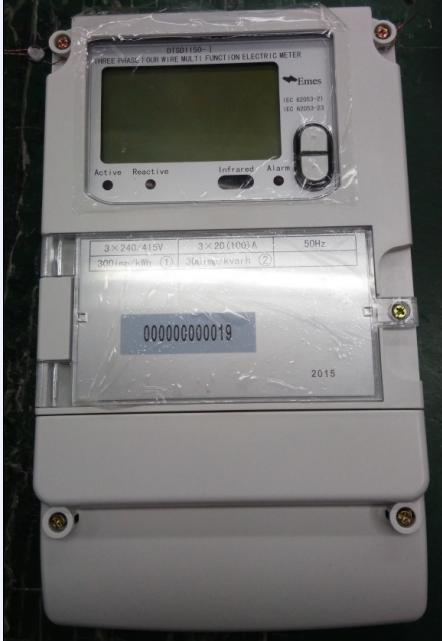

Product Specifications
| Prod Model: |
DSSD1150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Applicable Standard: |
IEC62053-21 |
| Accuracy Class: |
1.0 or 2.0 |
| Output Voltage: |
3X220/380V |
| Rated Current: |
1.5(6)a |
| Operating Temperature: |
-25~+60 |
| Max Current: |
100A |
| Measuring Energy Range: |
Active or Reactive |
| Display Type: |
Digital Only |
| Communication: |
RS485 and Infrared |
| Brand Name: |
OEM/Radarking |
| Display: |
Indicator |
| Installation: |
Direct Connected |
| Usage: |
Maximum Demand Meter |
| Electric Equipment: |
Three-phase Three-wire |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
Product Description
Specifications
1)DSSD150 multifunction meter
2)Output: 3000pcs/day
3)CE, ISO9001, 14001, IEC
4)OEM
Function and characteristic:
1. Measure ford direction, reverse direction and 4 quadrants reactive power and max demand, the time of max demand occurs
2. Spit phase power measuring
3.4 rates, 4 time zones, 6 time period, 10 day time, 12 public holidays
4. Record loss voltage, loss current
5. The data can be congeal auto and record data of l2 months
6. The active forward & reverse direction and the reactive 4 quadrants output via pulse. The pulse width can be setup by controller or Rs485
7. The infrared controller will display the item
9. It can be mounted the meter key stoke-display or circule-display when power is off A11 the data can be setup by controller of software
10. Recording affairs parameters function
11. Meter reading function at power off
12. Recording the load
13. It is easier of electric department centralized management
14. Alarming overload function
15. Transformer magnification can be setu
16. A11 the data and information can be displayed via LCD
17. Measuring the voltage, current, power of the each meter all the time
18. It has the recording feature of loss voltage, loss current, coincidence rate of the voltage, power off, programmer, adjust the time and so on
19. It has the function of program forbid and demand replacement
20. Power break awakening function
21. Two sets of Battery, one(3.6V)is used for keeping data, and another(6V)is used for copying They are easier to change
| Applicable Standard | IEC62053-21 |
| Accuracy Class | Class1.0, Class2.0 |
| Operating Temperature | -25~60 centigrade |
| Rated Voltage | 3×220/380V |
| Starting Current | Current transformer input0.2%Ibclass1.0, 0.3%Ibclass2.0
Direct input0.4%Ibclass1.0, 0.5%Ibclass2.0 |
| Rated Current | Current transformer input3×1.5(6)A
Direct input3×5(20)A,3×10(40)A ,3×15(60)A,3×20(80)A,3×30(100)A |
| Voltage Loop Consumption | ≤1.5W (5VA) |
| Current Loop Consumption | ≤1VA |
