Product Specifications
| Prod Model: |
XY-3I1400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
General Rubber Machinery |
| Type Of General Rubber Machinery: |
Rubber Calender |
| Type Of Tire Machinery: |
Rubber Regeneration Machinery |
| Version: |
Xy-3I1400 |
| Quality Guarantee: |
Two Years Life |
| Colour: |
Bule or as Per Customer's Requirements |
| Advantage1: |
High Working Pressure |
| Advantage2: |
High Producing Efficiency |
| Certification: |
ISO9001: 2008/CE/SGS |
Product Description

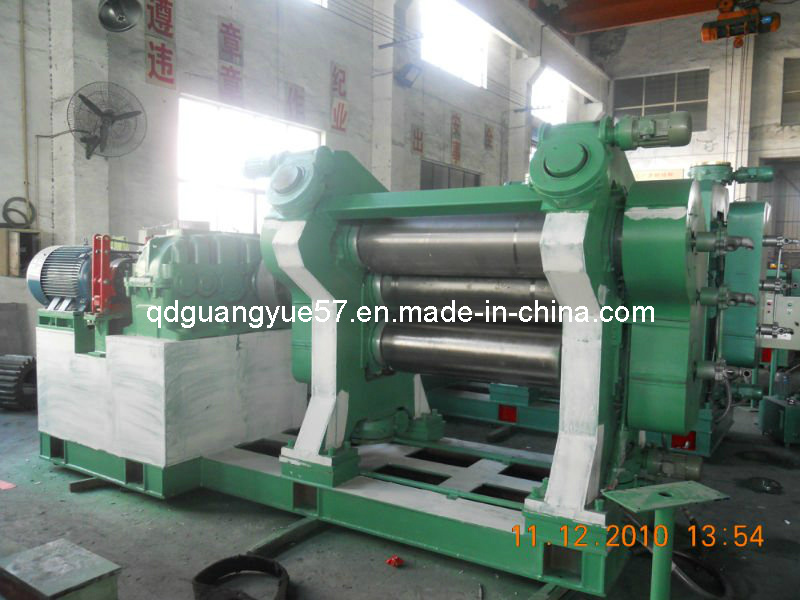

Three Roll Calender Machine For Rubber(XY-3l1400)
Three-roller calender is mainly used for glabrous pressing for high temperature fusible Objects and shaped products.
According to the configurable model, the three roller calender has three forms: Straight,Diagonal, horizontal.
According to the driving mode of three rollers, it can be fallen into chain driving,Worm wheel worm driving and independent driving.
User can accord to productive product, operating usage and economy to choose model.Customization services are available
If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to our factory to visit and inspect.
Model
Item | XY-3I 630
XY-3L 630
| XY-3I 1120A
XY-3 1120A
| XY-3I 1400 | XY-3I 1500 | XY-3I 1730 | XY-3I 2130 | XY-3I 2430 |
Roll dia | mm | 230 | 360 | 400 | 450 | 610 | 710 | 810 |
Roll working length | mm | 630 | 1120 | 1400 | 1500 | 1730 | 2130 | 2430 |
Roll ratio |
| 1: 1: 1
1: 1.42: 1 | 1: 1: 1
0.733: 1: 1
0.733: 1: 0.733 | 1: 1: 1
1: 1.383: 1.383
1: 1.383: 1 | 1: 1: 1
1: 1.5: 1 | 1: 1: 1
1: 1.4: 1 | 1: 1: 1 | 1: 1: 1
1: 1.5: 1 |
| Middle-roll linear speed | m/min | 0.8-8 | 3-21.06 | 3-26.39 | 2.62-26.2 | 5.4-54 | 8-50 | 2-20 |
| Adjusting nip range | mm | 0-7 | 0-10 | 0-10 | 0-6 | 0-20 | 0-20 | 0.5-25 |
Min. Calendering product thickness | mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | 0.5 |
Calendering product width | mm | 100-500 | 500-920 | 1200 | 1400 | 1500 | 1900 | 2150 |
Motor power | kW | 7.5 | 45 | 55 | 75 | 132 | 185 | 220 |
Overall dimensions
|
L | mm | 3168 | 5550 | 6500 | 7420 | 7010 | 7650 | 9300 |
H | mm | 890 | 1640 | 1500 | 2200 | 3950 | 4560 | 3150 |
W | mm | 1830 | 2120 | 2440 | 2900 | 3730 | 4080 | 5200 |
About weight | t | ~2.6 | ~16 | ~17.5 | ~19 | ~52 | ~67 | ~94 |
