Product Specifications
| Prod Model: |
XY-3I(r)360/400/450/550/610/710 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Use: |
Rubber Sheet |
| Colour: |
as Require |
| Company: |
We Are Manufacturer |
| Certificate: |
ISO,CE |
Product Description

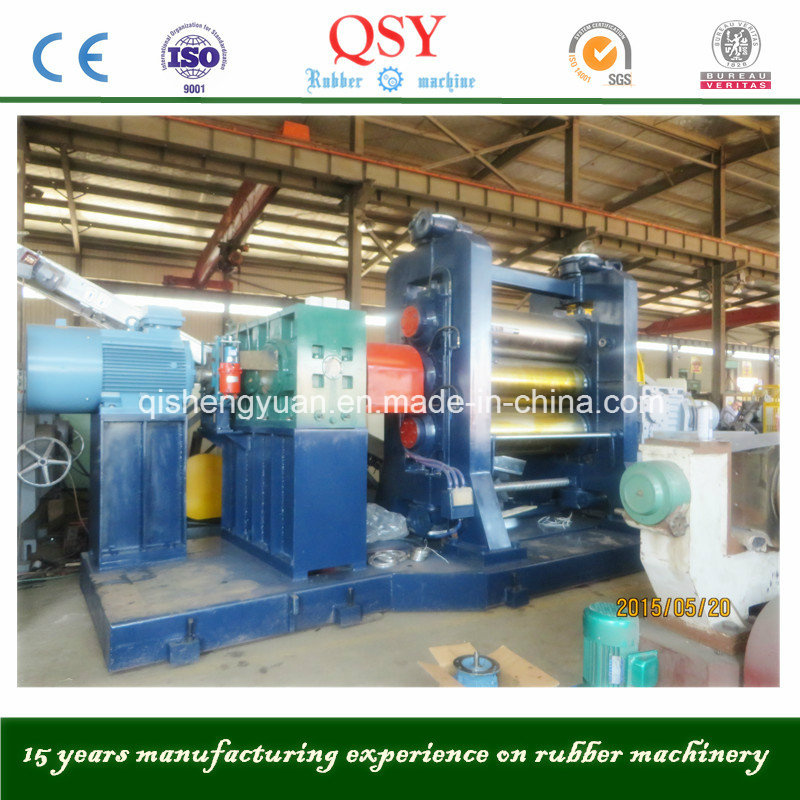

3 Roll rubber calender machine/Rubber sheet making machine
Type |
Dia.x Length of roll (mm) |
Linear speed of mid.roll (m/min) |
Min thickness of calendered product (mm) |
Width of calendered product(mm) |
Motor Power(KW) |
LxWxH(mm) |
Weight (t) |
XY-3I1120 |
360x1120 |
7.5-22.5 |
≥0.20 |
900 |
13.3/40 |
6050x1500x2240 |
11.6 |
XY-3I1400 |
400x1400 |
8.8-26.39 |
≥0.20 |
1200 |
18.3/55 |
5600x1410x2385 |
15 |
XY-4F1120 |
360x1120 |
7-21 |
≥0.20 |
900 |
18.3/55 |
6100x1660x2330 |
13 |
XY-4F1400 |
400x1400 |
8.8-26.39 |
≥0.20 |
1200 |
25/75 |
6350x1850x2490 |
18 |
XY-3L1120 |
360x1120 |
2-20 |
≥0.20 |
900 |
37 |
5500x1700x2300 |
11.7 |
XY-5T635 |
240x635 |
9 |
≥0.50 |
550 |
7.5 |
1400x1000x1870 |
2 |
XY-5T700 |
230x700 |
1.5-13 |
≥0.50 |
600 |
7.5 |
3600x1620x1030 |
3.5 |
XY-4r1730 |
610x1730 |
5.4-54 |
≥0.15 |
1500 |
180 |
7050x4110x3750 |
64 |
XY-4r1830 |
610x1830 |
6-60 |
≥0.10 |
1600 |
67x4 |
8250x3860x4640 |
68
|
Main Parameters:
Three -roll rubber calender
1. Application :
Rubberizing and fractioning of textile material, rubberizing of wirecord fabric, sheet, and counter plate(embossed) of rubber material, separation of fabric and film, as well as joint of multi-layer laminate film.
2. General design:
It mainly contains roller, rack, backplane, adjustment, device, transmission system, roller temperature control device, security device, lubricating device, etc.
3. Features:
The roller is made of chilled cast iron alloys, whose work surface has high hardness, wear-resistent and durable life. Steam, cooling water, and heat-conducting oil can pass into the rollers cavity, so that the working temperature can be adjusted in order to meet the technical requirements.
Roll spacing can be adjusted both by manual or electric mode.
Roller bearings lubricating can adopt drier oil or dilute oil.
1.Are you manufacturer?
Yes,we are BV approved rubber products manufacturer in China.
2.Can you design new product for us?
Yes,we have a professional development team that make new products according to your requirements.
3.Can you supply sample?
Yes,we can supply you free small samples,but air cost will be paid by customers.
4.What's your payment term?
Common is 30% deposit by T/T,the balance paid against shipping documents.
Or L/C at sight.
5.Are you near to Qingdao airport?
Yes,only within 1 hours.
And within 1 hour to Qingdao sea port.
50 minutes to Qingdao Railway Station.
6.Do you have any certificate of your products?
Yes, CE, BV, SGS, REACH.
7.Do you have any certificate of your company?
Yes, ISO 9001:2000.
8.Did your products apply the patent?
Yes,we have various kind of vulcanizing machine , mixing machine , tyre recycling machine patent.
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
