Zhejiang Yonjou Technology Co., Ltd. >> Three Screw Rod Pump

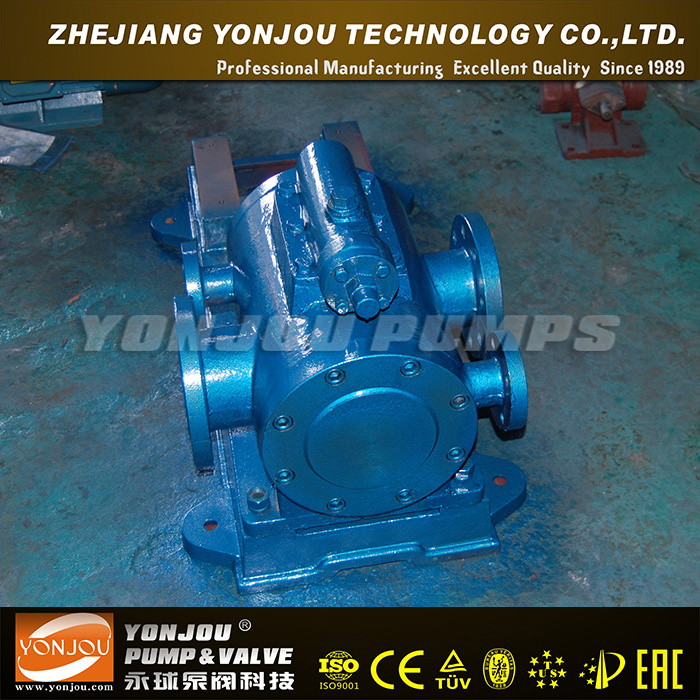

Three Screw Rod Pump

Name: Three Screw Rod Pump
Brand: China-Manufacturer-Directory.com
SKU: 770781785
Availability: InStock
Rating: 4.8 (38 reviews)

Supplier:	Zhejiang Yonjou Technology Co., Ltd.
Price:	US $ 329/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LQ3G
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China
Brand Name:	Yonjou
Model No:	Lq3g-150
Usage:	High Viscosity Goods
Standard Or Nonstandard:	Standard
Pressure:	Low Pressure
Packing Standard:	Standard Export Plywood Case
MOQ:	1 Set
Theory:	Screw Pump
Structure:	Gear Pump
Screw Number:	Multi Screw Pump
Screw Suction Method:	Single Suction
Pump Shaft Position:	Horizontal
Application:	Bitumen
Certification:	CE/ISO2001:1998

Product Description

Triple Screw Pump/ Three -Screw Pump

Brief Technical data:
1. Capacity: 4.5m3/h~252m3/h
2. Head: 60m~250m
3. Viscosity: 3.0~760mm2/s
4. Medium temperature: <350 Centigrade

LQ3G type horizontal Triple Screw pump:

LQ3G type Three screw Pumps are applicable to pump a variety of substance with temperature bellow 350 celsius degree and high viscosity of 30-760mm2/s.

LQ3G type horizontal Three Screw pump:
Wide Usage:
1. Pump fuel oil, crude oil, heavy oil, asphalt, rubber, resin such various types of lubrication oil-type liquid in industries of petroleum
2. Chemical fiber, metallurgy, road construction, electricity, mining, shipbuilding, glass etc.
3. The double jacket casting allows the heat preservation liquid passing to keep or cool the thermal of media pumped.

Model	Capacity (m3/h)	Pressure (bar)	Speed (r/min)	Power (kw)	Inlet Dia. (mm)	Outlet Dia. (mm)
Model	Capacity (m3/h)	Pressure (bar)	Speed (r/min)	Power (kw)	Inlet Dia. (mm)	Outlet Dia. (mm)
LQ3G45*2-46	4.5	6	960	1.5	40	40
	4.2	10	960	2.2
	6.5	6	1450	2.2
	6.2	10	1450	3
LQ3G50*2-46	8	8	960	2.2	50	50
	8.6	10	960	3
	15	6	1450	4
	14	10	1450	5.5
LQ3G80*2-46	17	8	960	7.5	80	65
	25	6	1450	7.5
	25	10	1450	11
LQ3G90*2-46	34	8	960	11	100	100
	55	6	1450	15
	53	10	1450	18.5
LQ3G100*2-46	48	8	960	15	125	125
	75	6	1450	18.5
	72	10	1450	22
LQ3G110*2-46	62	6	960	18.5	150	150
	60	10	960	30
	100	6	1450	30
	98	10	1450	45
LQ3G120*2-46	85	6	960	22	200	200
	80	10	960	37
	130	6	1450	37
	125	10	1450	55
LQ3G150*2-46	160	6	960	45	300	250

ZheJiang YonJou Technology Co., Ltd is specialized in industrial pumps and valves since1989. Now YONJOU has three bases for the production. The pumps are exported to 150 countries and regions.

YONJOU pumps and valves cover petrol chemical industry, agriculture, metallurgical industry, electric power industry, shipbuilding industry etc. The company's success is also confirmed by the ISO9001: 2008, CE, EAC and other certificates.

Now YONJOU is ICBC"AAA"grade credit enterprise with good reputation, ZheJiang good faith enterprise, Wenzhou well-known trademark, YongJia famous brand, ZheJiang Pump&Valve premium brand, Wenzhou innovative technology enterprise.

YONJOU follows the purpose of "Developing by technology, Living by quality, Benefitting by customer, Seek to supply customers with qualified products and satisfied service".

Welcome to YONJOU.
