Shenzhen Jinhuali Refrigeration Plant Co., Ltd. >> Three Speed Fan Controller Coils Vertical Fan Coil Unit*

Three Speed Fan Controller Coils Vertical Fan Coil Unit*

Name: Three Speed Fan Controller Coils Vertical Fan Coil Unit*
Brand: china-manufacturer-directory.com
SKU: 745471025
Availability: InStock
Rating: 4.5 (92 reviews)

Supplier:	Shenzhen Jinhuali Refrigeration Plant Co., Ltd.
Price:	US $ 99/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	HLC-34VE
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	Hlc-85g
Brand Name:	Huali
Power Supply:	AC220V/50Hz
Certificate:	CE
Cooling Water Temperature:	7oc-12oc
Hot Water Temperature:	40oc-60oc
Type:	Central Air Conditioners
Usage:	Room
Indoor Machine Noise:	24-35dB
Certification:	CE
China Energy Efficiency Standard:	Level 1
Cooling/Heating:	Cooling/Heating
Power Source:	Electrical
Power Type:	AC
Condition:	New
Capacity:	9000BTU to 2000BTU

Product Description

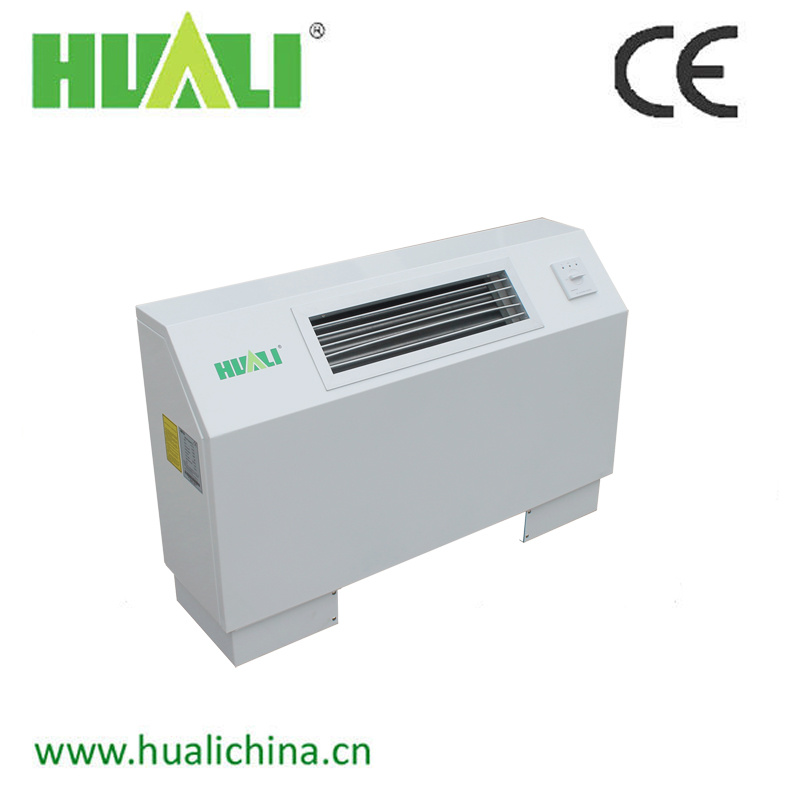

Vertical fan coil unit, FCU:
Low noise
Easy installation
Special design of air filter

Test condition for rated refrigerating output of fan coil unit:
Temperature of dry ball: 27 degree
Temperature of wet ball: 19.5 degree
Temperature of inlet water: 7 degree
Temperature difference between inlet water and outlet water: 5degrree

Test condition for rated heating output of fan coil unit:
Temperature of dry ball: 21 degree
Temperature of inlet water: 60 degree

Rated water volume is same as in test condition of rated refrigerating output
Items marked with refers to single-shaft motor.

Parameter of fan coil unit

Vertical Expose Fan Coil Unit
Model HLC~			34VE	51VE	68VE	85VE	102VE	136VE	170VE	204VE	238VE
Air flow (m3/h)	High speed		340	510	680	850	1020	1360	1700	2040	2380
	Medium speed		255	383	510	638	765	1020	1275	1530	1785
	Low speed		170	255	340	425	510	680	850	1020	1190
Cooling capacity	High	W	1800	2700	3600	4500	5400	7200	9000	10800	12600
	High	BTU	6143	9215	12287	15359	18430	24574	30717	36860	43004
	Medium	W	1620	2440	3290	4120	4850	6550	8190	9730	11580
	Medium	BTU	5529	8328	11229	14062	16553	22355	27952	33208	39523
	Low	W	1310	2010	2650	3320	3900	5300	6610	7860	9350
	Low	BTU	4471	6860	9044	11331	13311	18089	22560	26826	31912
Heating capacity	High	W	2700	4050	5400	6750	8100	10800	13500	16200	18900
	High	BTU	9215	13823	18430	23038	27645	36860	46076	55291	64506
	Medium	W	2350	3520	4530	6040	6850	9260	11740	14140	16360
	Medium	BTU	8021	12014	15461	20615	23379	31604	40069	48260	55837
	Low	W	1620	2470	3130	4170	4740	6500	8180	9710	11290
	Low	BTU	5529	8430	10683	14232	16178	22185	27918	33140	38533
Cooling water temperature			7ºC-12ºC
Hot water temperature			40ºC-60ºC
Power supply			AC220V/50Hz
Heat Exchanger	Type		,2.2mm copper pipes covered into aluminum fins, fin pitch 2.2mm
	Water supply kg/h		324	482	655	814	936	1278	1602	1915	2178
	Water resistance kPa		30	30	30	30	40	40	40	40	50
	Working pressure		1.6MPa
Low static pressure FCU		Input power w	37	52	62	76	96	134	152	189	228
Low static pressure FCU		Motor power w	10	16	20	25	30	20×2	25×2	30×2	40×2
High static pressure FCU	Static pressrue 30Pa	Input power w	44	59	72	87	108	156	174	212	253
	Static pressrue 30Pa	Motor power w	12	20	25	30	40	25×2	30×2	40×2	50×2
	Static pressure 50Pa	Input power w	49	66	84	100	118	174	210	250	300
	Static pressure 50Pa	Motor power w	16	25	30	40	50	30×2	40×2	50×2	60×2
Fan motor quantity			1	2	2	2	2	3	4	4	4
Noise dB(A)	Low static pressure		≤37	≤39	≤41	≤43	≤45	≤46	≤48	≤50	≤52
	High static pressure 30Pa		≤40	≤42	≤44	≤46	≤47	≤48	≤50	≤52	≤54
	High static pressure 50Pa		≤42	≤44	≤46	≤47	≤49	≤50	≤52	≤54	≤56
Pipe	Inlet/outlet water pipe		3/4 " internal thread
Pipe	Condensation water pipe		3/4" external thread
Dimension		L mm	1000	1000	1200	1300	1400	1600	1900	2100	2100
		W mm	270	270	270	270	270	270	270	270	270
		H mm	645	645	645	645	645	645	645	645	645
20GP 20GP container loading quantity			189	189	158	146	135	118	100	90	90
40GP 40GP container loading quantity			373	373	311	287	267	233	196	178	178
Main materials
Aluminium thickness:0.014mm, Copper tube thickless:0.35mm, Galvanized sheet: 1mm, Packing: Carton

Shenzhen Jinhuali Refrigeration Plant Co., Ltd. Was established in 2008. There are more than 150 staffs in our company, 80 % employees have a college degree or above. Our company specializes in the production, research and development, engineering design, installation, maintenance and repair of central air conditioner and refrigeration equipment. Our company adheres to the business philosophy of quality first, customer respect. We have established an honest, dedicated, pragmatic, innovative technology and management team, can more easily provide products to our clients with more advanced technology, more reasonable prices and better service, and serve to provide users a full range of integrated services in product introduction, equipment installation and commissioning, technical training and after-sales services.

We found the Domestic Market Department, Overseas Markets Department,

Research & Development Department in December, 2008.

We applied for CE certification and passed in 2009.

We applied for 6 software registration rights in 2010.

We applied for 3 utility model patents in 2011.

Our company was approved as a national high-tech enterprise on November 5, 2012.

Our company has owned customers' approval with advanced technical performance, reliable product quality, timely and thoughtful customer service since it has been founded. Our products have been widely applied in medicine, electronics, chemicals, plastics, electroplating, and other industries and commercial sites. We have agents or after sale service departments in the Chinese first-tier cities. Our products have been exported to many countries and regions of Europe, the Americas, Oceania, Africa, Asia.
