Three Traks Aluminum Sliding Window with Flyscreen

Name: Three Traks Aluminum Sliding Window with Flyscreen
Brand: china-manufacturer-directory.com
SKU: 743397445
Availability: InStock
Rating: 4.8 (51 reviews)

Supplier:	Guangzhou Tiansheng Building Material Business Department
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	TS-1024
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Finishing:	Finished
Position:	Exterior
Wind Resistance Performance:	4.5≤P3<5.0
Section Bar Type:	multiple-Cavity
Customized:	Customized
Security Level:	A
Color:	Single Color
Style:	European
Opening Pattern:	Horizontal
Function:	Insect-proof
Open Style:	Sliding

Product Description

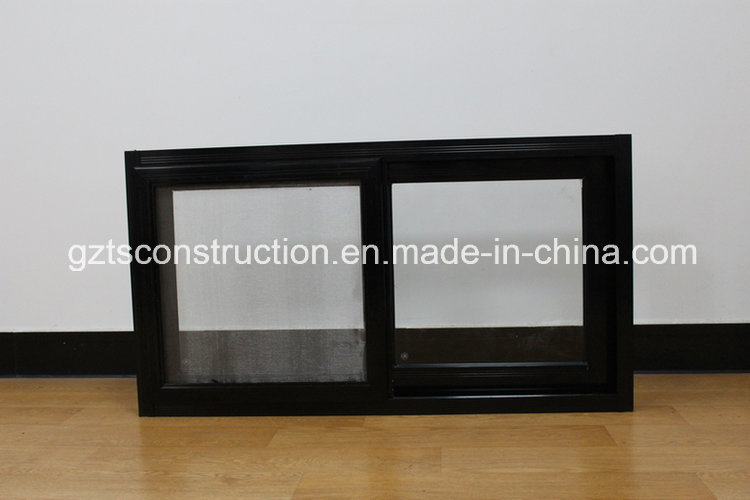

Three traks aluminum sliding window with flyscreen

1, Window specialist
2, AS2047 certificate
3, Perfect after-sale service

Double glazed sliding window is a perfect solution to save the outdoor/indoor space if the window fully opening.

Our durable roller and new-generation bottom track decrease the touching area between roller and track, they always glide smooth and true, even much better than other traditional single glazed sliding windows.

Tiansheng optional sliding flyscreen provides a good solution for anti-insect of sliding window. Also, for safety consideration, quality sliding security door is available for any size of sliding windows.

Features of Sliding window
--------------------------------------------------------------------------------------
1, 95mm frame width for two track sliding window system.
2, Sliding flyscreen or fixed screen can be installed.
3, Can be with crescent type locks/coupler locks/handle locks/key locks.
4, Popular window choice, offering quick and effective ventilation. Labour-saving operation.
5, Triple glass is not available usually.
6, Quality anti-scratch protective wrapping is optionable for all Yokor products.
7, Glazing bar/colonial bar between the double glazing or attaching the surface is optional.
Maximum window height is 1500mm
Maximum panel width is 800mm
Maximum door width is 3000mm

Any questions, do not hesitate to contact us!

Item name	Aluminium sliding window with AS2047 standard
Aluminium profile	Standard aluminium profile with 1.4mm thickness
Profile surface treatment	powder coating(with 70um thickness) Anodized(with 15um thickness) Electrophoresis(with 25um thickness) PVDF(with40um thickness)
Safety glazing options	A: single glazed like 5mm or 6 mm glass B: double glazed like 5+6/9/12+5mm. C: Laminated glazed like 5+0.38/0.76/1.52+5mm D: Low-e /tinted /frosted/obscure glazed
Glass seal	Rubber(EPDM) or silicone sealant.
Screen fly net	Nylon/Fiber glass/metal material
Window color	Any color is available
Hardware	Black hardware is supplied as standard
Packing	Cardboard + Iron pallet.
Lead time	6-8 week
Performance Parameters ( based on 00*00mm) Ps:Parameters can be achievable according to your requirement to choose different Configuration.	1.Soud insulation:over 36 db 2.Wind pressure resistance: 3.Air permeation resistance: 4.Water resistance: 5.U-Value< w/m2.k

Tiansheng Industry & Trade (HK) Co., Ltd /Guangzhou Tiansheng Building Materials Co., Ltd is a professional manufacturer of windows, doors and curtain wall.

With so many years' experience, good quality, fast delivery time, best after-sale service, pretty competitive price and continuously development of new products, have established long-term business relationship with so many customers from all over the world.

Our mainly products are as followings: Windows and door, curtain wall, framless glass door, sun room/green house, wrought iron railing/fence/gate, garage door. Our products are widely applied in thousands of projects, including commercial & high-end residential, house, villas, school, hotel, hospital, offices. As our products are customized, please give your window/door measurements, drawings and requirements to us, we will provide you with the best solutions.

We are here waiting for your inquiries. If you are interested in our products, please don' t hesitate to contact us by sending inquiry or calling. We sincerely hope to establish business relationship with you from all over the world based on the principle of Mutual Benefits!
