Product Specifications
| Prod Model: |
LLR313URC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
3mm |
| Emitting Color: |
Red, Green, Blue.... |
| Pin Length: |
16 or 25mm |
| Case: |
Water Clear |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
P-type Semiconductor |
| Package: |
DIP(',Dual In-line Package) |
Product Description

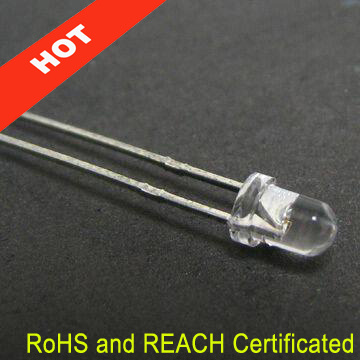

High brightness 3mm round LEDs with water clear case.
This is a 2-pin super bright LED
Available emitted color: Red, green, amber, yellow, blue or white.
Features:
Ultra bright output
Large view angle
Low power consumption
High reliability and long life
Descriptions:
Device Outline: 3mm oval Type
Lens type: Water clear
Viewing agnle: 15-60 deg.
One of available items:
Absolute maximum ratings (Ta=25ºC)
| Parameter | Symbol | Test Condition | Values | Unit |
| Min | Max |
| Reverse Voltage | VR | IR=30μA | 5 | --- | V |
| Forward Current | IF | --- | --- | 30 | mA |
| Power Dissipation | Pd | --- | --- | 90 | mW |
| Pulse Current | Ipeak | Duty=0.1mS, 1kHz | --- | 100 | mA |
| Operating Temperature | Topr | --- | -40 | +85 | ºC |
| Storage Temperature | Tstr | --- | -40 | +100 | ºC |
Electrical and optical characteristics (Ta=25ºC)
| Parameter | Symbol | Test Condition | Values | Unit |
| Min. | Typ. | Max. |
| Forward Voltage | VF | IF=20mA | --- | 3.2 | 3.6 | V |
| Reverse Current | IR | VR=5V | --- | --- | 30 | μA |
| Dominate Wavelength | λ d | IF=20mA | --- | 470 | --- | nm |
| Peak Wavelength | λ P | IF=20mA | --- | 468 | --- | nm |
| Spectral Line half-width | λ | IF=20mA | --- | 20 | --- | nm |
| Luminous Intensity | IV | IF=20mA | --- | 4000 | --- | mcd |
| Viewing Angle | 2θ1/2 | IF=20mA | --- | 20 | --- | Deg. |
For more information, please contact us!
Wuxi ARK Technology Electronic Co., Ltd., is located in Jin Zhangzhu LED Industrial Park in Yixing, Jiangsu (Jin Zhangzhu Industry Zone) which is well known throughout the country.
Following the development concept of "Technology-centered, People-oriented", and the business concept of "Quality First, Credit & Pragmatism", Ark Technology has grown into a large manufacturer of numeric LED displays, alphanumeric LED displays, DOT matrix displays, LED light bar and customized LED display, with an annual production capacity of one billion units. These products are exported to more than 20 countries and regions including the United States and European countries, and widely used in large and medium-sized enterprises of instruments and panel displays for home appliances and elevators. The company now employs more than 380 employees, including more than 80 senior and intermediate management staff.
The company, implementing the ERP system, is certified to the ISO9001-2008 quality management system and the RoHS product environmental protection standard. The plant covers a total area of 15, 000 square meters, including clean and anti-static areas of 4, 500 square meters. Moreover, the company is equipped with highly automated machines, including the industry-leading automatic ASM wafer process equipment and ASM wire bonders.
Look forward to the future, with the expanding demands for LED products in international markets, the company is making constant efforts to grow its business, build up its "Ark Technology" brand, and contribute to the progress of the Chinese LED industry by resorting to the instruments of outstanding quality control and technical innovation, and following an excellent corporate culture.
