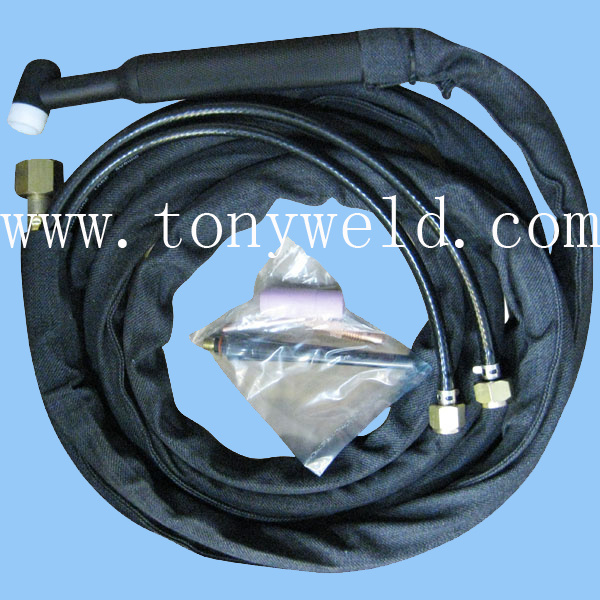

TIG Welding Gun/Weldcraft Welding Torch (WP-20)
Product Specifications
| Prod Model: |
WP-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. TIG welding gun wp-20, 20p weldcraft water cooled welding torch.
2. Rating: 250amps argon gas,
3. Duty cycle 100%.
4. Electorde diameter: 0.5-3.2mm.
5. Packing: 1set/box, with neutral packing or as per customers requirement.
6. Connector: M16*1.5 nut, 7/8''-14 or fast connector.
7. Length: 4m(12ft), 8m(25ft).
8. Type: Water cooled
9. Supply all TIG welding parts and welding accessories including torch head, back cap, cup gasket, collet, collet body, gas lens body, cable fittings, alumina nozzle, power cable adapters, switch, torch body and other welding consumables and welding spares.
10. Any samples are welcome to copy here.
|
Description of Goods |
Standard No. |
|
WP-20 Torch |
WP-20(4M) |
|
WP-20 Torch |
WP-20(8M) |
|
Torch Body |
WP-20 |
|
Torch Body(Flexible) |
WP-20F |
|
Torch Body(Pencil) |
WP-20P |
|
Long Back Cap |
41V24 |
|
Medium Back Cap |
41V35 |
|
Short Back Cap |
41V33 |
|
Collet |
13N20, 0.5mm |
|
Collet |
13N21, 1.0mm |
|
Collet |
13N22, 1.6mm |
|
Collet |
13N22M, 2.0mm |
|
Collet |
13N23, 2.4mm |
|
Collet Body |
13N25, 0.5mm |
|
Collet Body |
13N26, 1.0mm |
|
Collet Body |
13N27, 1.6mm |
|
Collet Body |
13N27M, 2.0mm |
|
Collet Body |
13N28, 2.4mm |
|
Gas Lens |
45V41, 0.5mm |
|
Gas Lens |
45V42, 1.0mm |
|
Gas Lens |
45V43, 1.6mm |
|
Gas Lens |
45V43M, 2.0mm |
|
Gas Lens |
45V44, 2.4mm |
|
Large Dia. Gas Lens |
45V0204S |
|
Large Dia. Gas Lens |
45V116S, 1.6mm |
|
Large Dia. Gas Lens |
45V64S, 2.4mm |
|
Ceramic Nozzle |
13N08, 6mm |
|
Ceramic Nozzle |
13N09, 8mm |
|
Ceramic Nozzle |
13N10, 10mm |
|
Ceramic Nozzle |
13N11, 11mm |
|
Ceramic Nozzle |
13N12, 13mm |
|
Ceramic Nozzle |
13N13, 16mm |
|
Long Ceramic Nozzle |
796F70, 5mm |
|
Long Ceramic Nozzle |
796F71, 6mm |
|
Long Ceramic Nozzle |
796F72, 8mm |
|
Long Ceramic Nozzle |
796F73, 10mm |
|
Extra Long Ceramic Nozzle |
796F74, 5mm |
|
Extra Long Ceramic Nozzle |
796F75, 6mm |
|
Extra Long Ceramic Nozzle |
796F76, 8mm |
|
Extra Long Ceramic Nozzle |
796F77, 10mm |
|
Ceramic Nozzle |
53N58, 6mm |
|
Ceramic Nozzle |
53N59, 8mm |
|
Ceramic Nozzle |
53N60, 10mm |
|
Ceramic Nozzle |
53N61, 11mm |
|
Ceramic Nozzle |
53N61S, 13mm |
|
Large Dia. Ceramic Nozzle |
57N75, 10mm |
|
Large Dia. Ceramic Nozzle |
57N74, 13mm |
|
Large Dia. Ceramic Nozzle |
53N88, 16mm |
|
Large Dia. Ceramic Nozzle |
53N87, 19mm |
|
Swith(with wire) |
K-01/SW-1 |
Changzhou Tonyweld Co., Ltd. is an professional manufacturer mainly producing MIG welding torches, TIG welding guns, air plasma cutting torches and welding parts, welding spares.
1. MIG Welding torches, welding consumables and welding accessories compatible for:
Binzel welding guns MB-14AK, 15AK, 23KD, 24KD, 25AK, 26KD, 36KD, 40KD, and 501D
Bernard welding guns 200E, 300E, 400E, 600E.
Tweco welding torches 1#, 2#, 3#, 4#, 5#.
OTC 200A, 300A, 350A and 500A
Panasonic 180A, 350A, 500A.
Miller, Lincoln and Fronius etc.
Including complete welding torches, welding nozzle, contact tip, tip holder, swan neck, handle, Rear handle, cable, cable joint and adaptor nut.
2. TIG welding guns and welding parts compatible for: WELDCRAFT and Trafimet etc. such as torch head, back cap, cup gasket, collet, collet body, gas lens body, cable fittings, alumina nozzle, power cable adapters, switch, torch body etc.
3. Air plasma cutting torches & cutting parts compatible for: Cebora, Trafimet, Saf, Easb, Thermal, Hypertherm, Panasonic, etc. such as electorde, tip, shield cup, ceramic swril ring etc.
4. Welding wire for CO2 gas shielded welding (AWS ER70S-6), solder wire for submerged arc welding (AWS EM12K, AWS EH14, AWS EM13K), solder wire for stainless steel (AWS ER308, ER308L, ER309, ER316, ER316L, etc)
5. Tungsten electrode, such as WT20, WZ8, WT30, WC20, WL10, WT40, WP, WL20, WZ3, WL15, WT10, WY20.
6. Standard welding helmet, automatic darkening welding helmet, welding glass, head gear belt, safety glass, welding goggles, etc.
7. Different kinds of electrode holder, earth clamp/ground clamp, tip cleaner, gouging torch and parts, gas regulator, flow meter, gauge/meter, round, square lighter, flint stone, pistol lighter, soapstone holder, lugs, o-ring, cable lugs, flashback arrestor, trolley, chipping hammer, positioner, welding positioner, burnisher, etc.
8. Wire feeder fit for OTC, etc. Remote controller, reel shaft, roller, adaptor, connector, motor used on wire feeder.
9. Cutting nozzle, welding/cutting torch, heating torch, heating & cutting torch.
10. Make different types as the sample you offer.
