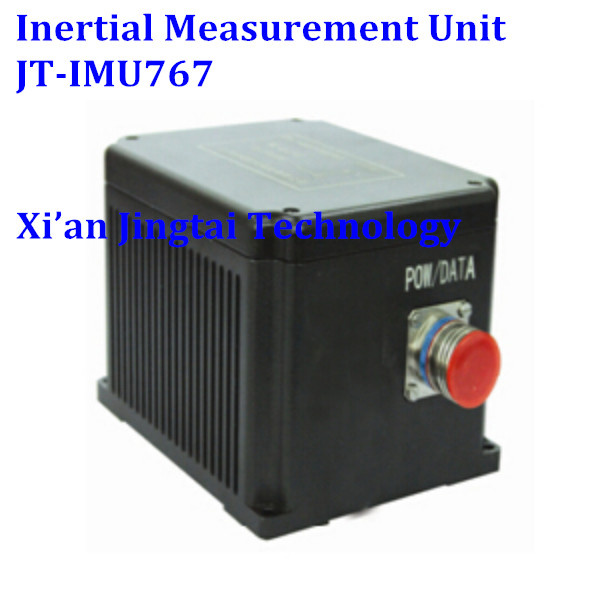

Prod Model:	Inertial Measurement Unit JT-IMU767

Product Description

JT-IMU767 inertial measurement unit is a high performance and low-cost inertial equipment for navigation, controlling and dynamic measurement.
JT-IMU767 adopts high reliability & stability quartz accelerometers and FOG gyroscopes, and ensures the measurement accuracy through comprehensive compensation. Its rugged-design and strict production process provides precise measurement of the angular and linear movement of its dynamic carrier under harsh environment.

Application	Feature
·Aviation ·            Antenna Stabilization ·            Vehicle Guidance and Control ·            GPS Augmentation ·            Attitude Reference ·            Marine Dynamics ·            Mining and Auto-Farming ·            Train & Container Tracking	·            High Cost-Efficiency FOG Based Digital IMU; ·            Full Temperature Compensation; ·            24 bits A/D converter to ensure accelerometer resolution less than 0.01 mg and gyroscope resolution less than 0.001 deg/s; ·            Reliable rugged-design to protect the unit against harsh environment; ·            Vibration & Shock Resistance and EMI resistance.



 Specification

Activation Time		≤3 s
Gyroscope	Bias	≤1 deg/h
	Bias Stability	≤0.5 deg/h
	Bias Repeatability	≤0.5 deg/h
	Non-Linearity	≤200 ppm
Accelerometer	Bias	≤1 mg
	Bias Stability	≤0.5 mg
	Bias Repeatability	≤0.5 mg
Range	Angular Rate	±300 deg/s
	Acceleration	±10 g (/customizable)
() Reliability (predicted)		10 Kh MTBF
Interface	Voltage	9~36 VDC
	Power Consumption	≤15 W @ 24 VDC
	Electrical	RS232/RS422
	() Data Update Rate (configurable)	100 Hz @ 115,200 baud rate
Environmental	Operating Temperature	-40°C ~ +60°C
	Storage Temperature	-50°C ~ +70°C
	Vibration	6 g @ 20~2000 Hz
	Shock	30 g, 11 ms, 1/2 Sine
Physical	Size (L*W*H)	151 × 120 × 101 mm
	Weight	≤2.2 kg
