Product Specifications
| Prod Model: |
DSE70 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inverter: |
Delta |
| Main Motor: |
45kw |
| Output: |
200-240kg/H |
| Principle: |
Twin Screw Extrusion |
| Type: |
Fisheries Auxiliary Machinery |
Product Description
Fish food processing line, fish food processing machine, fish food machine, fish feed machine, fish food extruder, fish feed extruder, floating fish food processing line, floating fish food extruder, catfish feed machine, catfish food production line, Tilapia food making machine, fish food pelleting extruder, fish feed extruder machine, floating fish food processing line, floating catfish feed machinery...

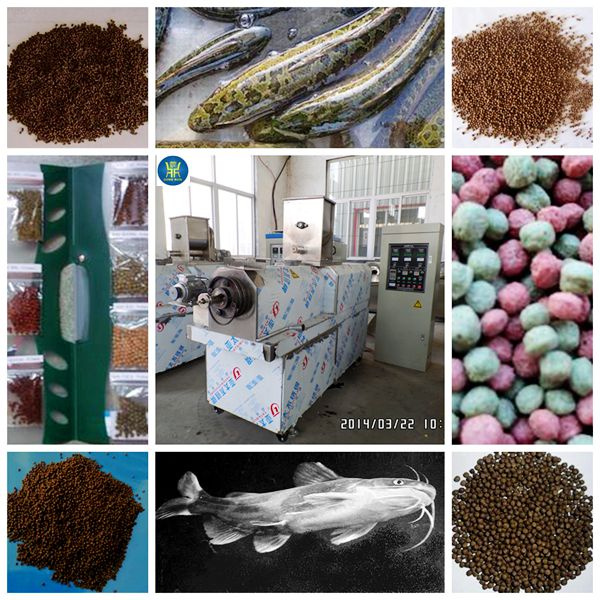

1. Tilapia fish feed extruder machinery Description:
Fish food processing line is suitable to make dry fish food pellet (catfish, aquarium, Tilapia, Freshwater fish and tropical fish etc. )
1). All fish food equipments are made of stainless steel.
2). The fish food whole line fully continuous and automatic.
3). Dingrun Company provide basic fish food receip according to your require.
4). The final fish food shapes and sizes can be various by changing the mould.
5). Supply different size mould free.
6). Packing machine could be supplied to work with the line (depend on your require).
2. Raw materials: Most fish food pellet inculding animal protein and plant protein, Plant protein adopts corn flour, rice flour, wheat flour, soybean flour, peanut cake powder^...Animal peotein adopt fish meal, shrimp meal, crab meal, sleeve-fish meal and so on. You can add other ingredient according to the local fish live require.
3. Products: This line can be used to produce fish pellets, the pellets size can be from 1.0mm to 9.0mm by adjusting the moulds from extruder; Meanwhile it can produce dog food, cat food
4. Tilapia fish feed extruder machinery Capacity: 150kg/h, 240kg/h, 500kg/h, 1ton---3ton/h
5. Tilapia fish feed extruder machinery Flow chart:
Mixing system---Extrusion system----Drying system----Flavoring system--Packing system
6. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
7. Machines materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; The screws are made by alloy steel, with building block system structure and self-cleaning function
Model
Parameters | DSE65 | DSE70 | DSE85 | DSE-90
(Gas style drying) |
| Input Voltage | 380V/50Hz ,3P | 380V/50Hz ,3P | 380V/50Hz ,3P | 380V/50Hz ,3P |
| Installed Power | 70 kw | 100 kw | 150 kw | 128.2 kw |
| Power Consumption | 40 kw | 70kw | 120kw | 116 kw |
| Capacity(output) | 100-150 kg/h | 200-300 kg/h | 300-550 kg/h | 600-1000kg/h |
| Installation Size | 17.0 x1.2x 2.5 m | 18.0 x1.2x 2.5 m | 22.0 x1.2x 2.5 m | 28.0 x3.0x 3.5 m |
| Manpower Needed | 1 ~2 workers | 1 ~2 workers | 1 ~2 workers | 1 ~2 workers |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel
|
Jinan Dingrun Machinery Co., Ltd is a professional food machinery manufacturer in Jinan city shandong province China.
Our company congregates an exceptional food machine engineering team, personal customer service center and high quality manufacturing capabilities have evolved exponentially, We are working hard on explore constantly not only in the research of extrusion technology, but also in food technics to benefit our clients producing newfangled food in their markets. It making us become one of the preeminent providers of reliable extrusion equipment world-wide. Now we can guarantee customers superior quality machines up to design requirements and perfect working state.
With our many years research and development extrusion technics has been widely used in more fields. Our products consist of core filling extrusion snack machine, corn chips machine, bugles machine, twin screw food extruder, breakfast cereal and corn flakes machine, pet food machines and floating fish feed machinery, dog chewing food machine, aquarium fish feed machines, textured soya protein machine, modified starch machine, artificial rice machine, bread crumb machine, single screw extruder, potato chips machine and biscuits machine, instant flour machine, flat bread machine, ect. We can also provide special design and product according to our clients` special requirements.
Now, we have exported our machines to many countries in the world, such as Malaysia, Indonesia. Pakistan, Sri Lanka, Brazil etc., and get good reputation from the clients. Some of them become our agents in their area. We hope to have long friendly business relationship with more clients all over the wrld in the future.
