Product Specifications
| Prod Model: |
FLT0924 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Materials: |
Stainless Steel304,316 |
| Heating Mode: |
by Electric or Steam,Gas |
| Highest Temperature: |
150 Degree |
| Volume: |
50-500L |
| Heating Area: |
0.4-1.9m2 |
| Type: |
Mixer |
| Voltage: |
220V |
| Customized: |
Customized |
Product Description
Specifications
1. Use electricity as heating source
2. Large heating surface
3. High heat efficiency
4. Beautiful surface
Usage

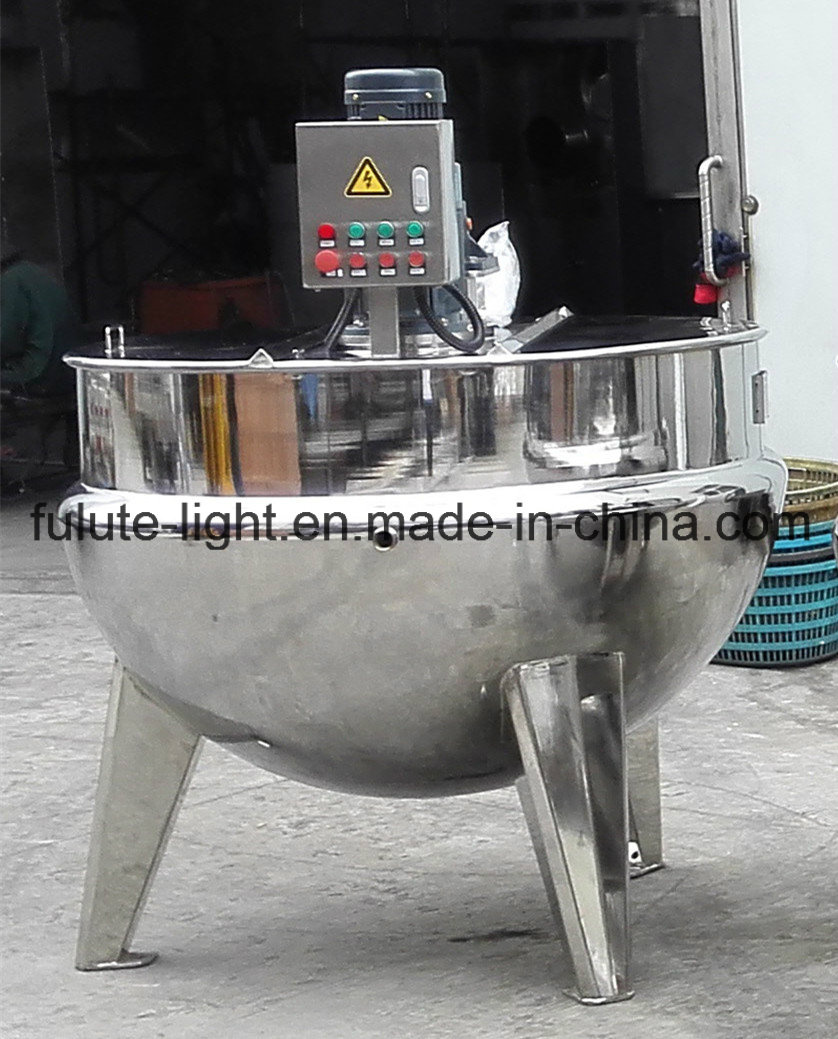

The stainless steel jacket kettle can be applied to a wide variety of foods processing, such
as candy, medicine, dairy, liquor, cake, candied fruit, drink, canned goods, sauced meat etc.
It also can be used in making soup, cooking stir-fry, stewing meat, cooking porridge and so
on, and it is a wonderful equipment to improve quality, reduce time and improve working
conditions during foods processing.
Features
The voltage is 380V, and it is equipped with electrical bar. Heat transfer oil in the interlayer.
Big heating surface, high heat efficiency, short boiling time, temperature easy to be controlled.
Structure
The surface of this stainless steel jacket kettle selected 304 stainless steel, this material is
corrosion resistant and it is convenient to install and operate the electric cooking pot.
The material of the out pot can be chosen from the followings:
1) Carbon steel Q235B
2) Stainless steel SUS304
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers, pumps, tanks etc for many years. We can design the products according to your special request. OEM is welcome too.
Steam Jacket kettle
with Dimple jacket inside the walls for steam inject and heating. It takes the steam as thermal source. The inner surface contacted with the product are all SUS304 Or SUS316.
Electrical Jacket Kettle
Compared with steam heating, the heating temperature of the electrical jacket kettle is higher than steam jacket kettle, Which can shorten the cooking time.
Application:
The products could be applied in food, beverage, Pharmacy, chemical industry etc.
Material Available:
SUS304 SUS316 SUS316L
Teachnical Parameters
| model | nominal capacity
diameter*depth | pressure
Mpa | mixing speed
r/min | maximum inclined
angle | inlet/outlet
diameter | power
kw |
| JCG50-I | 50
60*45 | 0.3 | 36 | 90° | 1/2" | 0.55 |
| JCG50-II |
| JCG100-I | 100
70*50 | 0.3 | 36 | 90° | 3/4" | 0.55 |
| JCG100-II |
| JCG100-III |
| JCG200-I | 200
80*55 | 0.3 | 36 | 90° | 3/4" | 0.55 |
| JCG200-II |
| JCG200-III |
| JCG300-I | 300
90*65 | 0.3 | 36 | 90° | 3/4" | 0.75 |
| JCG300-II |
| JCG300-III |
| JCG400-I | 400
100*75 | 0.3 | 36 | 90° | 3/4" | 1.1 |
| JCG400-II |
| JCG400-III |
| JCG500-I | 500
110*85 | 0.3 | 23 | 90° | 1" | 1.5 |
| JCG500-II |
| JCG500-III |
| JCG600-I | 600
120*95 | 0.3 | 23 | 90° | 1" | 2.2 |
| JCG600-II |
| JCG600-III |
| JCG1000-I | 1000
1400*115 | 0.3 | 23 | 90° | 1" | 3 |
| JCG1000-II |
| JCG1000-III |
