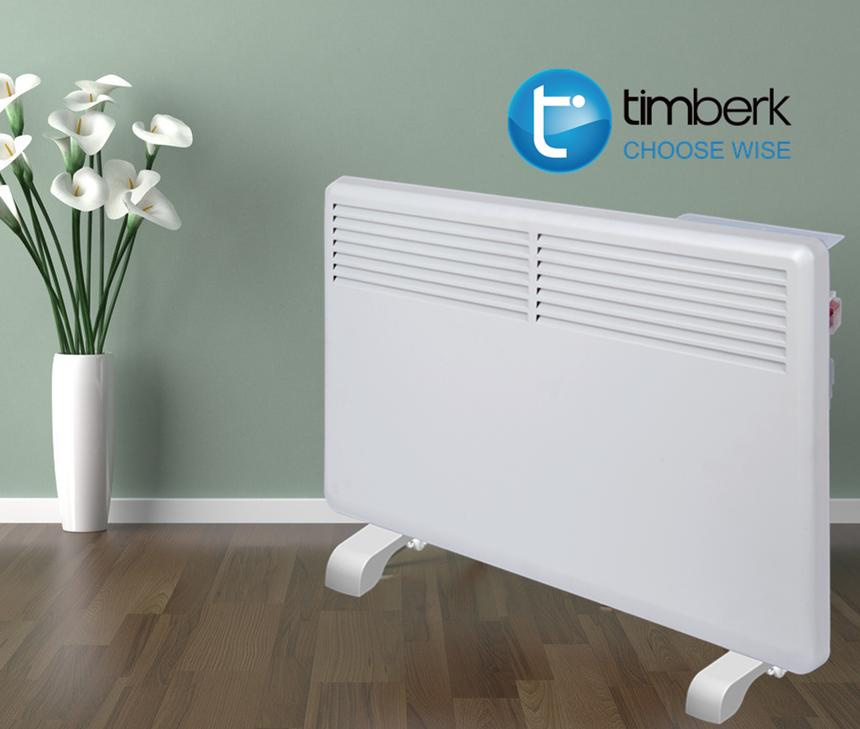

Timberk Electrical Panel Convector Heater

Product Specifications

Prod Model:	TBK030-M15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Optional Installlation:	Wall-Mounted Type
Installation:	Freestanding
Ventilation:	Without Ventilation

Product Description

1. Specification:

Model	TBK030-M10/E10	TBK030-M15/E15	TBK030-M2/E20
Power(3 mode)	400W/600W/1000W	500W/1000W/1500W	800W/1200W/2000W
Heating Area(sqm)	14-16	18-20	22-26
Product Size(mm)	460*64*400	595*64*400	830*64*400
N.W(kg)	4.7	5.8	7.7
Control panel	Mechanical Control Type by switch & knob (M-series) LED digital control type by button with LED screen
Optional Parts & function	Wall-mounted type or Free-standing type; Mechanical control or LED digital control; Water-proof IP24 protection; Back handle & tip-over switch for free-standing type; Humidifier box; Towel dryer;
Certification	CE, LVD, EMC certification; GS certification; SAA certification; ROHS certfication;

2. Character:


1.French size design, Slim and compact, Unique structure, body thickness is only 64mm
2.Sheathed aluminum heating element for durability and efficient heating transfer
3.Working silently, with rapid, wide-spread and even airflow transfer
4.Water splash proof,IP24 approval, can be installed in bathroom
5.Over-heat safety protection
6.With electronics thermostat for temperature setting
7.Easy to install by wall mounted bracket or castors for free standing (optional)
8.Ionizer for heath care and nature environment (optional)
9.Humidifier lets you feel comfort, avoid dry air (optional)
10.Tip-Over safety protection (optional)
11.Towel dryer for rapid clothes drying (optional)
12.Handle for easy and safety moving (optional)


3. Component introduction:

New Generation Heating Element
1)T-Extra and Duo-X heating Elements.
2)European quality X-shape sheathed heating element with newest structure big diffuser.
3)Unique multi-power design.
4)Unique composition:strong aluminum alloy and structure increase the efficiency and proof from distortion.

5)Seal heating spiral,Teflon protection and X-Ray QC bring durability for long-life using.

Humidifier
1)Any heater working, it wil make room air become dry.
2)Timberk heater totally solve this problem by our patent design-Timberk humidifier.

3)Timberk special heater humidifier can realize water into air along with heater woking.let you enjoy fresh nature air in your room.

Ionizer
1)Bring forest to your home-Timberk lonizer.
2.)Eliminate bad smells,adverse materials(for example; formaldehyde from house decoration) and smokes in air, refuse second-hand smoking.
3)Collect dusty and floated pellets in air, make air clear, Cut off bacteria spreading.

4)Creat active oxygen, remove your body tired, inspire yourself.

Towel Dryer
1)Luxury design with stainless steel or chromed steel.
2)Convenient for installing and hiding on heater body.

3)Rapidly make your towel, clothes to be dry.

LED 24h timer
1)3 power heating element

2)Accessible LED display panel placed on upper of the control box with sound alerts
3)Indication lights on control panel
4)Adjustable temperature in Normal, Economic and Express setting modes
5)User setting memory function
6)With anti-frosting function
7)5°C-30°C temperature step setting
8)24 hours timer (to start or stop working)
9)Child safety lock
10)User setting memory function


4. Our service:

*1 year guarantee

*Quality insurance

*Delivery time insurance

*Any color for your choice

*ODM service is available


5. Contacting way
Website: www.timberkchina.com;    timberk.gmc.globalmarket.com


6. FAQ:

1.Are you manufacture or trade company ?
Reply:We are manufacture,we've been in the field of small fans,electric heaters & gas heaters for 4 years.

2.How many workers are there in your factory?
Reply: 150 workers when peak season, other season 50 workers.

3.How big is your factory ?
Reply:Our factory has 8000 sq.m workshop which is equipped by mordern facilities.

4.How's your production capacity ?

Reply:Annual production capacity is over 8000,000 pcs of heaters range and 2000,000 pcs fan range.

5.What's the certification do you have?

Reply: Our company pass ISO9001 & ACE, BSCI audit. And our heater products pass CE, GS, SAA, ROHS certification, hot sell in Europe and many other countries.
