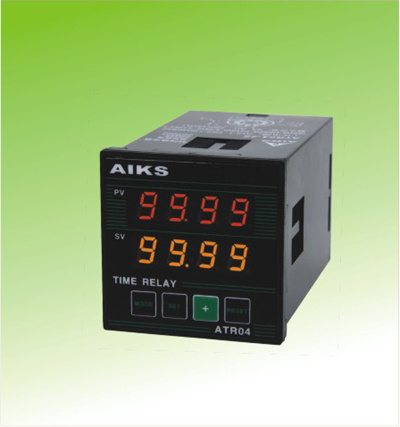

Time Relay (ATR04-B2)

Name: Time Relay (ATR04-B2)
Brand: china-manufacturer-directory.com
SKU: 616396022
Availability: InStock
Rating: 4.7 (69 reviews)

Supplier:	Aiks Electric Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	ATR04-B2

Product Description

Coil voitage: AC380V. 220V. 110.48V. 36V. 24V. 12V /AC 85~264V / DC12V. 24V
Delay range: 0.01S~99H99M
Worke type: 2-set inst contact
Stater size: 48*48(mm)

Model number		ATR04-B1	ATR04-B2	ART04-B3
Contact form	On-delay	SPDT	DPDT	SPDT
	Instantaneous	---	---	SPDT
Perforate dimensions (mm)		48x48x86
External dimensions (mm)		44₀ +1 x44₀ +1
Delay range		0.01s-99.99s, 1min-99h99min, 1s-99min99s
Power consumption		2W max
Setting method		Touch switch
Indication method		8-segment 4-digital display and LED
Contact rating		3A@250Vac, 5A@28Vdc
Repeat accuracy		±0.3%, ±0.05 sec
Setting error		±0.5%, ±0.05 sec
Supply voltage		12, 24, 36, 48, 110, 220 or 380Vac; 85-264V wide range AC voltage; 12 or 24 Vdc
Tolerance	AC	-15% ... +10% rated supply voltage
	DC	-10% ... +10% rated supply voltage
Line frequency		50 ... 60 Hz
Terminals		Screw
Life		Mechanical--1x106; Electrical--1x105
Operating temperature		0 to 50 °C (32 to 122 °F)
Operating humidity		95% RH max, non-condensing

AIKS Electrical & Electronics from HongKong. Since company founded for more than ten years, we engaged in designing, developing, producing and time relay, etc. Besides, we also manufacture digital ammeter and voltmeter, counter, liquid-level controller, photoelectric switch, and relay socket, rocker switches, push switches, temperature controller and so on. We adopt advanced production quality control system, and passed TUV ISO9001 quality control system certificate early. Because of our excellent quality, we have obtained CQC certificate, CE certificate, CCC certificate etc. At present, we are applying the UL, cUL certificates. We have advanced production facility and COTS; We now own a building of 12000 m2 for high-new technological production, Besides, we have a team of technical personnel and managers who have received strict train.
