Coil voitage: AC380V.220V.110.48V.36V. 24V.12V AC85V~264V DC12V.24V
Delay range: 0.01S~999H
Worke type: 8-set inst contact
Stater size:92*92 mm

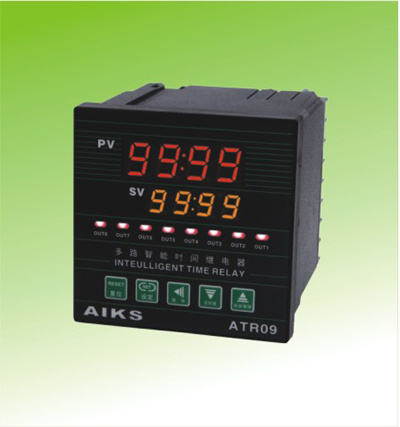

Model number
|
ATR09
|
Contact form
|
On-delay
|
8PDT
|
Perforate dimensions (mm)
|
96X96X80
|
External dimensions (mm)
|
920 +1 x920 +1
|
Delay range
|
0.01s-99.99s, 1min-99h99min, 1s-99min99s
|
Power consumption
|
2W max
|
Setting method
|
Touch switch
|
Indication method
|
8-segment 4-digital display and LED
|
Contact rating
|
3A@250Vac, 5A@28Vdc
|
Repeat accuracy
|
±0.3%, ±0.05 sec
|
Setting error
|
±0.5%, ±0.05 sec
|
Supply voltage
|
12, 24, 36, 48, 110, 220 or 380Vac; 85-264V wide range AC voltage; 12 or 24 Vdc
|
Tolerance
|
AC
|
-15% ... +10% rated supply voltage
|
DC
|
-10% ... +10% rated supply voltage
|
Line frequency
|
50 ... 60 Hz
|
Terminals
|
Screw
|
Life
|
Mechanical--1x106; Electrical--1x105
|
Operating temperature
|
0 to 50 °C (32 to 122 °F)
|
Operating humidity
|
95% RH max, non-condensing
|
