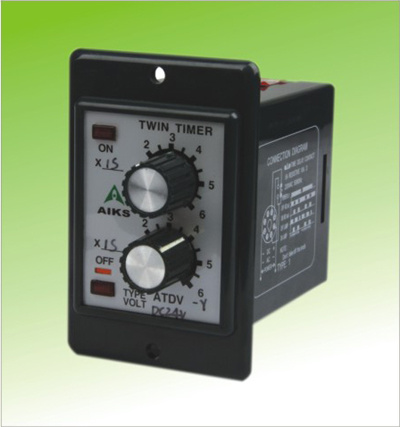

Time Relay

Name: Time Relay
Brand: China-Manufacturer-Directory.com
SKU: 616396082
Availability: InStock
Rating: 4.5 (135 reviews)

Supplier:	Aiks Electric Co., Ltd.
Price:	Negotiable
Min Order:	1
Quantity::

Product Specifications

Prod Model:	ATDV-Y

Product Description

Coil voitage: AC380V.220V.110.48V.36V. DC12V.24V
Delay range: 1S~60M
Worke type: 1-set inst change repetitive
Stater size:60*50mm

Model number		ATDV-Y
Contact form	Repeat cycle	SPDT
Delay range		1s/60min
Power consumption		3W max
Setting method		Knob
Indication method		LED
Perforate dimensions (mm)		61₀ +1 x50₀ +1
Contact rating		3A@250Vac, 5A@28Vdc
Repeat accuracy		±0.3%, ±0.05 sec
Setting error		±0.5%, ±0.05 sec
Supply voltage		12, 24, 36, 48, 110, 220 or 380 Vac; 12 or 24 Vdc
Tolerance	AC	-15% ... +10% rated supply voltage
	DC	-10% ... +10% rated supply voltage
Line frequency		50 ... 60 Hz
Terminals		Panel mounting
Life		Mechanical--1x106; Electrical--1x105
Operating temperature		0 to 50 °C (32 to 122 °F)
Operating humidity		95% RH max, non-condensing

AIKS Electrical & Electronics from HongKong. Since company founded for more than ten years, we engaged in designing, developing, producing and time relay, etc. Besides, we also manufacture digital ammeter and voltmeter, counter, liquid-level controller, photoelectric switch, and relay socket, rocker switches, push switches, temperature controller and so on. We adopt advanced production quality control system, and passed TUV ISO9001 quality control system certificate early. Because of our excellent quality, we have obtained CQC certificate, CE certificate, CCC certificate etc. At present, we are applying the UL, cUL certificates. We have advanced production facility and COTS; We now own a building of 12000 m2 for high-new technological production, Besides, we have a team of technical personnel and managers who have received strict train.
