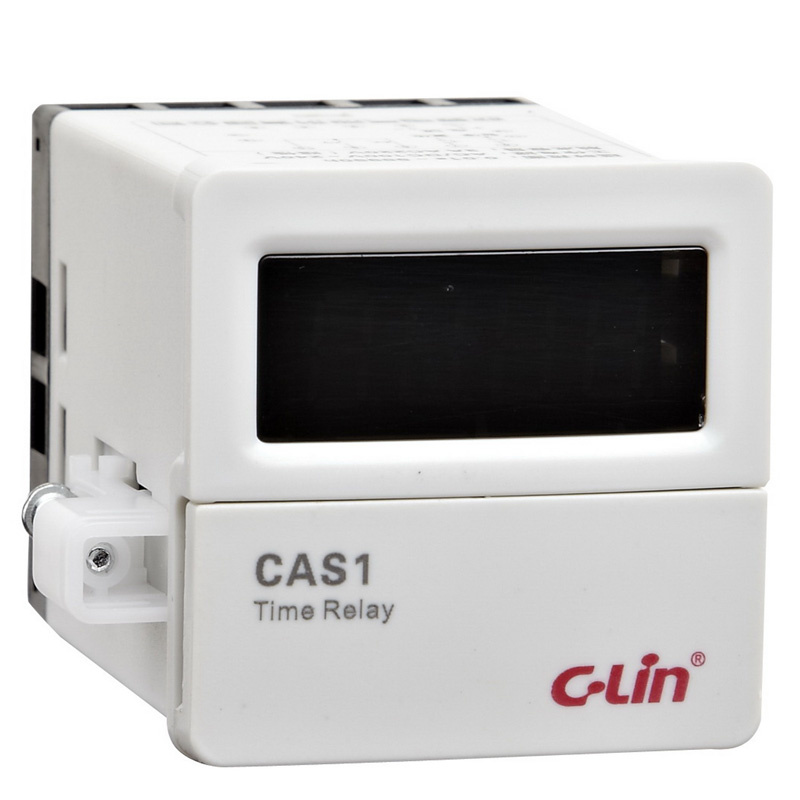

Timer Relay (CAS1-S Series)

Name: Timer Relay (CAS1-S Series)
Brand: china-manufacturer-directory.com
SKU: 762239265
Availability: InStock
Rating: 4.3 (93 reviews)

Supplier:	Xinling Electrical Co., Ltd. China
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CAS1-S14HT40; CAS1-S14MT40; CAS1-S20HT40; etc.
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Specification

Panel size	Operating mode	Setting&display mode	Contact	Input signal control	Installation mode	Delay range	Model
48×48mm	on-delay	dial switch with digital display	1C time delay	reset and pause	panel type, device type, 35mm guide rail	0.01s~99990h	CAS1-S14HT40
					back-panel wiring type		CAS1-S14MT40
			2C time delay	none	panel type, device type, 35mm guide rail		CAS1-S20HT40
					back-panel wiring type		CAS1-S20MT40
				reset and pause	panel type, device type, 35mm guide rail		CAS1-S24HT40
					back-panel wiring type		CAS1-S24MT40
			1C time delay and 1C instantaneous	none	panel type, device type, 35mm guide rail		CAS1-S40HT40
					back-panel wiring type		CAS1-S40MT40
	cycling delay		2C time delay	none	panel type, device type, 35mm guide rail	0.1s~990h	CAS1-RS20HT22
					back-panel wiring type		CAS1-RS20MT22
			1C time delay	reset and pause	panel type, device type, 35mm guide rail		CAS1-RS14HT22
					back-panel wiring type		CAS1-RS14MT22

Rated value

Rated supply voltage	AC/DC100V~240V 50Hz; DC24V
Operating voltage fluctuation range	85%~110%
Input mode	no voltage input(short circuit.open circuit)
Minimum signal input time	0.1s
Contact capacity	3A AC220V(Resistive)
Ambient temperature	-5ºC~40ºC(no ice)
Ambient humidity	If the ambient temperature is 40ºC,the RH≤50%. It allows higher relative humidity in a lower temperature. For example,when the ambient temperature is 20ºC, the RH≤90%. Special measure is needed for occasional condensation produced by temperature changes
Altitude	≤2000m

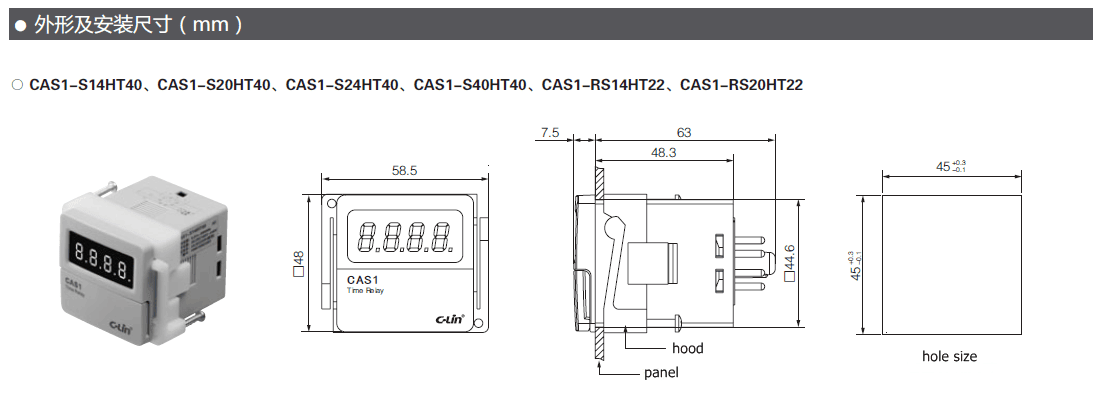

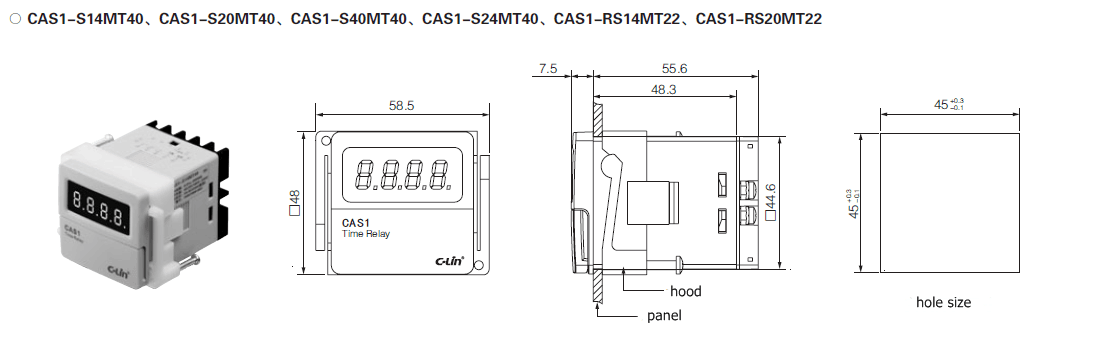

Outline dimension

Operatioin procedure

Note:
Please choose the specific model from the above table when enquiry(e.g.:CAS1-S14HT40) so that we can quote immediately.

Xinling Electrical Co., Ltd. China was established in 1990. The company has 9 sub-branches, more than 100 cooperation units, and 100 direct distributors, 1000.00m2 factory area and 1000 stuffs.

The company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, itsstreng thens the management or enterprise and promotes product quality. The company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.

The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.

Xinling --- will create a magnificent tomorrow together with you!
