Product Specifications
| Prod Model: |
Butyl |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rubber: |
Vulcanized |
| Width: |
200-500 |
| Length: |
2300-3500 |
| Pattern Depth: |
15/16/17 |
| Wear Resistance: |
100,000 Kms |
| Rubber Hardness: |
66 |
| Tensile Strength(MPa): |
21.5 |
| 300% Se(MPa): |
10.7 |
| Cm3/1.61km: |
0.09 |
| G/cm3: |
1.163 |
| Usage: |
Household |
| Material: |
Natural Rubber |
Product Description
Our Services
1.We can supply many kinds of tread rubber with different formula for truck tire and OTR tire.
2.We can supply tread rubber constantly according to your pattern requirements.
3.We also can supply fully complete equipments for truck tire and OTR tire retreading plant.

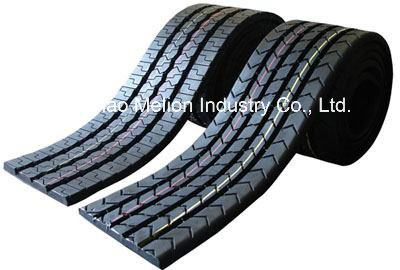

Tread Rubber:
We manufacture high abbrassion resistance precured Tread rubber with high Mileage.
Adopting the most state-of-the-art tread compounding techniques, cold feed technology and scientific whole sets of testing equipment. Based on the above state-of-the-art technology, our company could produce prepared curing tread for all kind of tyre patterns meeting requirements of all kinds of retreading tyres.
Features:
. Longitudinal ribs with closed shoulders
. For drive axle of city buses and trucks
. For trailer, semi-trailer and trailing axles
. For all wheel positions of construction vehicles
. All-round performance
. Good transmission of traction forces on paved roads and off-road
. For short and long-range use
. Good self-cleaning due to open tread design
. High mileage
. Directionally stable
. Suitable for use on low-noise vehicles
Quality level
Wear resistance: 50,000-60,000 kilometers
Wear resistance: 70,000-80,000 kilometers
Wear resistance:80,000-1200,000 kilometers
OEM:Available
Patterns:
| Code | Width(mm) | Length(cm) | Tread Depth(mm) | Base Thickness(mm) | kg/roll |
| MNLA-130 | 130 | 234 | 11 | 3 | 4 |
| MNLA-140 | 140 | 232 | 12 | 3 | 5 |
| MNLA-150 | 150 | 245 | 13 | 3 | 5.5 |
| MNLA-150L | 150 | 280 | 13 | 3 | 6.2 |
| MNLA-160 | 160 | 244 | 13 | 3 | 6.3 |
| MNLA-170 | 170 | 255 | 13 | 3 | 6.8 |
| MNLA-170L | 170 | 310 | 13 | 3 | 8 |
| MNLA-180 | 180 | 305 | 14 | 4 | 9.3 |
| MNLA-195 | 195 | 317 | 14 | 4 | 10.5 |
| MNLA-200 | 200 | 317 | 15 | 4 | 10.8 |
| MNLA-210 | 210 | 326 | 15 | 4 | 11.6 |
| MNLA-220 | 220 | 327 | 15 | 4 | 12.5 |
| MNLA-230 | 230 | 340 | 15 | 4 | 13.4 |
| MNLA-240 | 240 | 341 | 15 | 4 | 14 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLB-183 | 183 | 305 | 13 | 4 | 8.4 |
| MNLB-190 | 190 | 317 | 14 | 4 | 10 |
| MNLB-205 | 205 | 330 | 14 | 4 | 11 |
| MNLB-216 | 216 | 328 | 14 | 4 | 12 |
| MNLB-226 | 226 | 329 | 14 | 4 | 12.5 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLC-220 | 220 | 330 | 15 | 4 | 11.5 |
| MNLC-230 | 230 | 341 | 16 | 4 | 13.2 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLD-220 | 220 | 330 | 15 | 4 | 112.1 |
| MNLD-238 | 230 | 340 | 16 | 4 | 13.9 |
| MTTH-197 | 195 | 316 | 15 | 4 | 9.6 |
| MTTH-210 | 210 | 324 | 15 |
| 11 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLE-220 | 220 | 330 | 15 | 4 | 12.5 |
| MNLE-230 | 230 | 341 | 16 | 4 | 13.5 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLF-210 | 210 | 321 | 15 | 4 | 12.2 |
| MNLF-220 | 220 | 330 | 16 | 4 | 12.7 |
| MNLF-230 | 230 | 341 | 16 | 4 | 13.6 |
| MNLF-240 | 240 | 341 | 16 | 4 | 14.2 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLG-230 | 230 | 341 | 16 | 4 | 14.2 |
| MNLG-240 | 240 | 341 | 16 | 4 | 14.6 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLH-220 | 220 | 331 | 15 | 4 | 12.5 |
| MNLH-230 | 230 | 340 | 15 | 4 | 13.3 |
| MNLH-240 | 240 | 340 | 16 | 4 | 14 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLK-226 | 226 | 330 | 17 | 4 | 13.8 |
| MNLK-240 | 240 | 342 | 17 | 4 | 15.1 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLL-210 | 210 | 321 | 15 | 4 | 11.3 |
| MNLL-220 | 218 | 332 | 15 | 4 | 12.4 |
| MNLL-230 | 228 | 339 | 15 | 4 | 13.4 |
| MNLL-240 | 240 | 340 | 15 | 4 | 13.2 |
| MNLL-250 | 248 | 332 | 15 | 4 | 14.2 |
| MNLL-260 | 255 | 339 | 15 | 4 | 14.4 |
| Code | Width | Length | Tread Depth | Base Thickness | kg/roll |
| MNLM-220 | 220 | 330 | 15 | 4 | 12.6 |
| MNLM-230 | 230 | 341 | 15 | 4 | 13.6 |
| MNLM-230S | 230 | 334 | 15 | 4 | 13.2 |
| MNLM-240 | 240 | 341 | 15 | 4 | 14.2 |
| MNLM-250 | 250 | 342 | 16 | 4 | 15.2 |
Cushion Gum:
1. High guling property to make the tread and casing glue more closely.
2. Flexible vulcanization temperature from 99°C-120°C, fitting for different kinds of vulcanization facilities.
3. Used for 8 consecutive years with strong stability.
4. Dimension could be customized.
5. Stored in cool and ventilated part for shilf lift of 6 months.
| Shipping & Payment |
| MOQ | 1000kgs |
| Packing detail | Standard export packing,can be customized. |
| Bulk lead time | 10-15 days after receiving the deposit |
| Port of loading | qingdao port |
| Terms of payment | T/T, Western Union etc |
We, Rizhao Melion Industry Co., Ltd is a specialized rubber machinery supplier in China. For over ten years, the MELION group of companies has supply quality machines, rubber materials and accessories for global market. Our products have been spreaded 30 provinces in China market and also exported to Russia, Europe, South America, Middle East, Africa etc and have widely gained excellent reputation from our customers.
We operating three subsidiary factories in China which separately manufacturing retreading MACHINERY, RUBBER MATERIALS and RETREADED TIRES.
We also supply tire retreading solutions for clients who want to set up a new retreading factory.
We have competent sales service team to guarantee promt response to any questions from clients.
We offer installing-adjusting-training-producing, the whole serials of services.
We can also design machine as per customers' requirements.
That means, you will get your complete tire retreading needs from us.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
