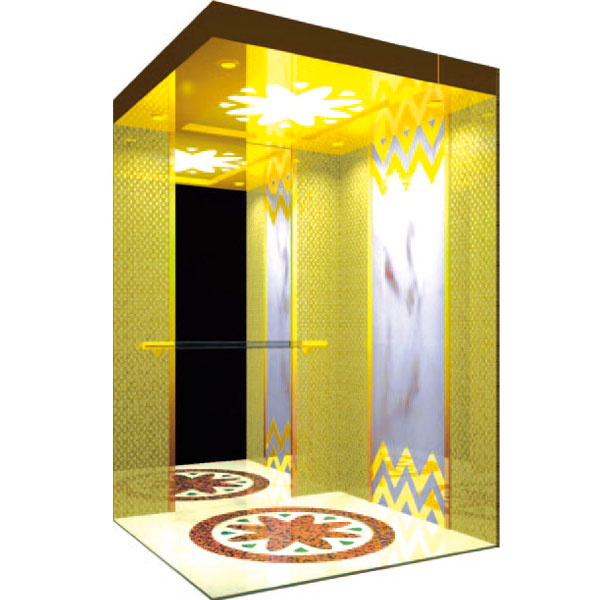

Titanium Etching Machine-Room-Less Elevator

Name: Titanium Etching Machine-Room-Less Elevator
Brand: China-Manufacturer-Directory.com
SKU: 721187915
Availability: InStock
Rating: 4.3 (108 reviews)

Supplier:	Hangzhou Sword Elevator Co., Ltd.
Price:	US $ 15000-30000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XO-Z0135
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Main Machine:	Gearless Traction Machine
Control Cabinet:	Microcomputer
Door Operator:	Vvvf
Driving Type:	AC Elevator
Speed:	0.4m/S-1.75m/S
Capacity:	250kg -1600kg
Persons:	3-21persons

Product Description

Product Name: MRL Passenger Elevator/ Passenger Lift/ Machine Room Less

Detailed Product Description

1. Won CE, Ghost and ISO certificate
2. Capacity: 250kg -1600kg
3. Speed: 0.4m/s-1.75m/s
4. Traction machine: Gearless

XO-Z0135

Car wall: XO-Z0135J
Titanium etching board, transparent marble, mirror, titanium decoration stick

Car ceiling: XO-Z0135D
Titanium stainless steel frame and roof board. Acrylic lighting board for the middle part, both sides down lamp

Handarail: XO-Z0135F
Φ 42 acrylic stick, titanium stainless steel tube

The flooring: XO-Z0135P
Marble pattern

Standard Function (normal)
1	Full collective selective				18	Lock lift switch
2	Return home landing automatically				19	Return automatically
3	Full load by-pass				20	Door openning and closing button
4	Cancel reverse direction call automatically				21	Light curtain protection
5	Reset				22	Door dosing torgue protection
6	Self-diagnose				23	Car door openning protection
7	Self-teach about the floor				24	Car door closing protection
8	terminal floor protection				25	Hall reopening
9	overload protection				26	Door closing delay protection
10	Overheat protective device				27	inside communication
11	Power supply inspection				28	Arrival bell
12	Over speed and anti-off repe protection				29	Car alarm
13	Contactor inspection				30	Car emergency light
14	Brake inspection				31	Car ventilation and light cut off automatically in 3 minutes
15	Top of car inspection device				32	Inside floor and direction instruction
16	Emergency operation in machine room				33	Outside foor and direction instruction
17	Landing assignment automatically				34	Anti-nuisance device

Optional Function (normal)
1	Door holding button				8	Village monitoring system
2	Floor announcer				9	Attendant by-pass
3	Interconnect/group control(< 3)				10	Attentant operate
4	Air condition for elevator				11	Independent operation
5	Fire protection feedback				12	Emgerency landing system
6	Power failure emergency leveling device				13	Secure floor
7	Arrival light				14	Integrated Circuit Card
Remarks:	All items with ' * ' should be confirmed by SWORD CLC.
Laying of wire for ICU-5, REM-X, AMS or AES from machine room to supervidory room by local

S700L-H (machine roomless) lift Specification
Type	Capacity (kg)	Speed(m/s)	Cabin net size CW× CD (mm)	Net door opening HW× HD (mm)	Shaft net size HW× HD (mm)	Pit depth (mm)	Overhead height (mm)	Max Traveling Height (m)
MRL Passenger Lift	450	1	1050× 1211	700× 2100	1800× 1700	1600	3900	50
	630	1	1050× 1411	700× 2100	1800× 1800	1600	3900	50
		1.5				1700	4100	75
		1.75				1700	4200	90
	680	1	1250× 1411	800× 2100	2000× 1800	1600	3900	50
		1.5				1700	4100	75
		1.75				1700	4200	90
	800	1	1350× 1411	800× 2100	2100× 1800	1600	3900	50
		1.5				1700	4100	75
		1.75				1700	4200	90
	900	1	1450× 1411	900× 2100	2300× 1800	1600	3900	50
		1.5				1700	4100	75
		1.75				1700	4200	90
	1000	1	1550× 1411	900× 2100	2300× 1800	1600	3900	50
		1.5				1700	4100	75
		1.75				1700	4200	90
	1150	1	1550× 1711	1000× 2100	2600× 2200	1800	4300	50
		1.5				1900	4500	75
		1.75				1900	4500	90
	1350	1	1750× 1711	1100× 2100	2800× 2200	1800	4300	50
		1.5				1900	4500	75
		1.75				1900	4500	90
	1600	1	1750× 2011	1100× 2100	2800× 2500	1800	4300	50
		1.5				1900	4500	75
		1.75				1900	4500	90
Villa lift	250	1	900× 850	700× 2000	1670× 1450	1400	3700	20
			900× 900	side opening 750	1625× 1450
	320	1	1000× 950	750× 2000	1770× 1450	1400	3700	20
			950× 1045	side opening 800	1675× 1450
	400	1	1000× 1100	750× 2000	1770× 1500	1400	3700	20
			950× 1095	side opening800	1675× 1500
Home lift	250	0.4	950× 710	700× 2000	1550× 1470	500	3500	15
			950× 700	side opening700	1400× 1500
	320	0.4	1050× 810	750× 2000	1670× 1570	500	3500	15
			1050× 800	side opening800	1550× 1600
	400	0.4	1150× 900	750× 2000	1670× 1670	500	3500	15
			1150× 900	side opening800	1630× 1700
Cabin height is 2300mm

Hangzhou Sword Elevator Co., Ltd., founded in 2009, It owns capital of 1 billion RMB and more than 800 employees. Up to the present, Sword Elevator is one of the largest elevator and escalator manufacturers and service suppliers in China,

In 2010, Sword Elevator invested 500 million RMB for new factory which located in Yuhang Economic Development Area in Hangzhou, China. The factory covers 105, 600 m2 and has the annual production capacity of 25, 000 elevator and 5, 000 escalator.

Sword factory has the most advanced processing equipments, including flexible Salvagnini manufacturing line, USA Nordson painted line, Noise test room, Laser cutting machine to guarantee the high quality of products. Besides, Sword owns one 120m test tower for new product test, and the maximum test speed is up to10m/s.

Sword Elevator provides full series of Elevator, Escalator and moving walks for all markets, and it operates under EN81 and EN115, ISO, GB code and is ISO 9001-2008 certified. All products gain Europe CE and Russia CUTR certificates.

As a leading manufacturer of energy-saving elevator in China market, Sword Elevator has been improving '360° Green Value Chain' to explore best values for customers. As far as 2012, over 30, 000 elevators and escalators have been provided to worldwide, covering more than 50 countries. Including North America, CIS, SAPA, Africa and Latin America region.

SWORD is pursuing to be a world-class elevator and escalator manufacturing plant and product suppliers, would like to create the way you move together with all the people in the world.
