Product Specifications
| Markets: |
North America,Eastern Europe,Eastern Asia |
| Type: |
Titanium Foil |
Product Description

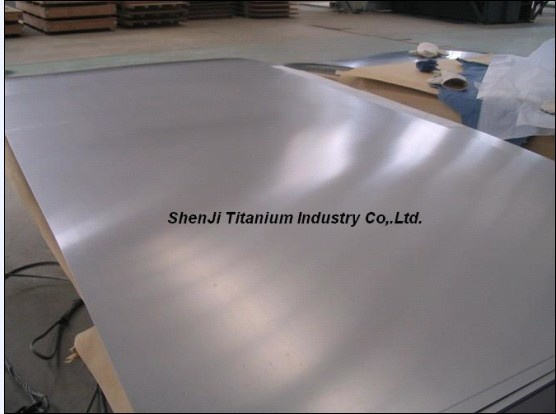

Titanium metal can be pressed as thin as 0.001 inches, though there aren't many applications that need this size. This kind of titanium sheets are produced at secondary fabricators by using either raw materials provided by the customer or using the mills own resources.
Some mills will not manufacture foils from outside titanium sources without grade certification and mechanical property testing to ensure that they are outfitted with the proper equipment. Grade is a significant consideration as processing high purity titanium is extremely energy intensive and ductility varies among the many titanium grades.
Titanium plate for surgical implants
1)Start from raw material, stable performance
2)Competitive price
3)Quick delivery
Titanium plate for surgical implants
Grade 3, Unalloyed titanium offering optimum ductility and cold formability with useful strength, high-impact toughness, and excellent weldability. Highly corrosion resistant in oxidizing and mildly reducing environments, including chlorides.
Weldability excellent.
Grade 3 has very good weldability. Being substantially single phase material, the microstructure of the alpha phase is not affected greatly by thermal treatments or welding temperatures.
Therefore, the mechanical properties of a correctly welded joint are equal to, or exceed those of the parent metal and show good ductility.
Typical Applications
Equivalent to Grade 1 and 2, and eminently suitable where high strength is needed.
|
|
|
|
|
|
|
|
Titanium plate |
|
|
|
|
|
|
Standard: ASTM B 265 |
|
|
|
|
|
|
Material: Gr. 1, 2, 3, 5, 7, 9, 12 |
|
|
|
|
|
|
Thickness: 0.3-60mm |
|
|
|
|
|
|
Width: <1350mm |
|
|
|
|
|
|
The mechanical property test report is provided along with the chemical compositions. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Gr1, Gr2, Gr3, Gr5 |
|
|
|
|
|
|
Hot rolling |
>4.1~60.0mm |
|
|
|
|
|
Cold rolling |
0.3~4.0mm |
|
|
|
|
|
Gr1, Gr2, Gr3, Gr5 |
|
|
|
|
|
|
Hot rolling |
>4.1~60mm |
|
|
|
|
|
Cold rolling |
0.5~4.0mm |
|
|
|
|
|
Gr3, Gr4, |
|
|
|
|
|
|
Hot rolling |
4.1~60mm |
|
|
|
|
|
Cold rolling |
0.8~4.0mm |
|
|
|
|
|
Technology |
|
|
|
|
|
|
Standard |
ASTM B265, ASTM F136, ASTM F 67, ASME SB265, ASTM B381, etc. |
|
|
|
|
|
|
|
|
|
|
|
|
Applications |
Chemical equipment, Rack, electrode, exchanger, Condensator, Evaporimeter, Medicine, Medical etc. |
|
|
|
|
|
Packing |
Plastic as inside, plywood case as outside, or according to client's demand |
|
|
|
|
|
|
|
|
|
|
|
|
Titanium sheet for plate heat exchanger |
|
|
|
|
|
|
|
|
|
|
|
|
|
Grade |
Size / mm thickness width |
length |
|
standard |
|
|
Gr1, Gr7 |
0.5-0.8mm |
200-500 |
500-2000 |
M |
ASTM B265 |
|
|
0.9~1.0mm |
200-500 500-2000 |
M |
ASTM B265 |
|
|
|
0.5-0.8mm |
500-800 |
800-2000 |
M |
ASTM B265 |
|
|
0.9~1.0mm |
500-800 |
800-2000 |
M |
ASTM B265 |
|
|
|
|
|
|
|
|
Medical titanium plate |
|
|
|
|
|
|
No |
Grade |
Size/mm |
State |
Standard |
|
|
1 |
Gr1, Gr2, Gr3 |
0.3-60mm ( 500~1000 ) |
bright |
ASTM F 67 |
|
|
2 |
Gr5 |
Thk0.3~60mm |
bright |
ASTM F 136 |
|
|
|
|
|
|
|
|
|
Titanium plate for surgical |
|
|
|
|
|
|
Descriptions |
Grades |
Dimensions |
Specification |
|
|
|
Titanium sheet |
Titanium and Titanium Alloy sheet(Chinese) |
TA0-TA3 |
(0.3-30mm) (width)1350 |
GB/T3621-94 GB-T 3621-2007 |
|
|
TA9 |
(0.3-30mm) width 1350 GB/T3621-94 GB-T 3621-2007 |
|
|
|
|
|
TA10 (0.3-30mm) width 1350 GB/T3621-94 GB-T 3621-2007 |
|
|
|
|
|
|
TC4 |
(0.3-30mm) width 1350 GB/T3621-94 GB-T 3621-2007 |
|
|
|
|
|
|
|
|
|
|
|
|
Titanium and Titanium Alloy sheet(American) |
Gr1 |
(0.3-30mm) width 1350 ASTM B 265 |
|
|
|
|
Gr2 |
(0.3-30mm) width 1350 ASTM B 265 |
|
|
|
|
|
Gr5 |
(0.3-30mm) width 1350 ASTM B 265 |
|
|
|
|
|
Gr7, Gr12 (0.3-30mm) width 1350 ASTM B 265, GOST 22178-1976. |
|
|
|
|
|
|
|
|
|
|
|
|
