Product Specifications
| Prod Model: |
5LL-1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Titanium Separation Spiral Chute: |
Fiber Galss Surface |
| Titanium Separating Machine Feeding Size: |
0.03-0.3mm |
| Titanium Separating Chute Capacity: |
4-6t/H |
| Spiral Separator Diameter: |
400mm.600mm,900mm,1200mm,1500mm |
| Spiral Separator Chute Start: |
2.3.4. |
| Spiral Chute Separtor Installation: |
Provide Engineer Guide Overseas |
| Spiral Separator Application: |
Tin, Chrome,Titanium, Zircon,Rutile, Beach Sand |
| Type: |
Gravity Separator |
| Voltage: |
380V |
| Weight: |
<1T |
| Certification: |
CE |
| Warranty: |
1 Year |
| Color: |
Red |
| Customized: |
Customized |
| Condition: |
New |
| Material: |
Fiber Glass |
Product Description
Jiangxi Shicheng Mine Machinery Factory titanium ore refining machine, spiral titanium separatorAbout us:
producer: jiangxi shicheng mine machinery factory
core advantage: specialized in gravity mineral processing machine since 1985
one of china best gravity mining machinery manufacturer
sepecialized in tantaium, tungsten , chrome, tin, ilmenite, coltan ore beneficiation plant
Our Services
1. do testing for ilmenite ore, black sand, tin ore , iron ore, tungsten processing in laboratory
2. design the mineral processing flow chart. design the layout of machines in mining plant
3. provide installation & operation video for mining plant
4. our engineer can go to customer minesite for installation, running test and training staff overseas
titanium mining separator spiral chute
JXSC spiral chute have extremely good performance and effects in processing and refining the mineral sand from beach, riverside, seashore and stream. The spiral separator is mainly used for beneficiation of gold, zircon, tungsten, iron sand, black sand, limonite, chromites, Chromium, Titanium, and Rutile minerals.
titanium ore mining separator spiral chute
JXSC spiral separators are made of high quality polyurethane with fiber glass lining and wearable corundum inner surface. Generally there are 5 turns in one start and four starts in one column. They can be used for mineral particle sized from 0.02 to 0.3 mm, with processing capacity from 2 to 4 t/h per column. 4 or 6 columns can be joined to form a bank with distributor on the top to suit capacity requirements.
titanium ore mining separator spiral chute Features & Benefits
1. Reasonable structure and small occupation area
2. High recovery, high efficiency, and precise separation
3. Light in weight, rust and corrosion resistant
4. Simple installation and Minimal maintenance requirements
5. Low operating cost and long operating life
6. Reliable running with minimal operator attention
7. Strong adaptability to fluctuation of feeding amount, density, size and grade
Below are the technical data for our titanium ore concentration machine spiral chute
Model | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 |
| Outside dia(mm) | 1500 | 1200 | 900 | 600 | 400 |
| pitch(mm) | 540,720 | 900,720,540 | 675,540,405 | 450,360,270 | 240,180 |
| Pitch Dia Ratio | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.75,0.6,0.45 | 0.6,0.45 |
| Lateral slope | 9° | 9° | 9° | 9° | 9° |
| Maximum starts per column | 4-2 | 4-2 | 4-2 | 2 | 2 |
| Feeding Size (mm) | 0.3-0.02 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 |
| Feeding Density(%) | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 |
| Capacity(T/H) | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 |
| External | Length (mm) | 1560 | 1360 | 1060 | 700 | 460 |
| Size | Width (mm) | 1560 | 1360 | 1060 | 700 | 460 |
| Height (mm) | 5230 | 5230 | 4000 | 2600 | 1500 |
| Weight (Kg) | 800 | 600 | 400 | 150 | 50
|

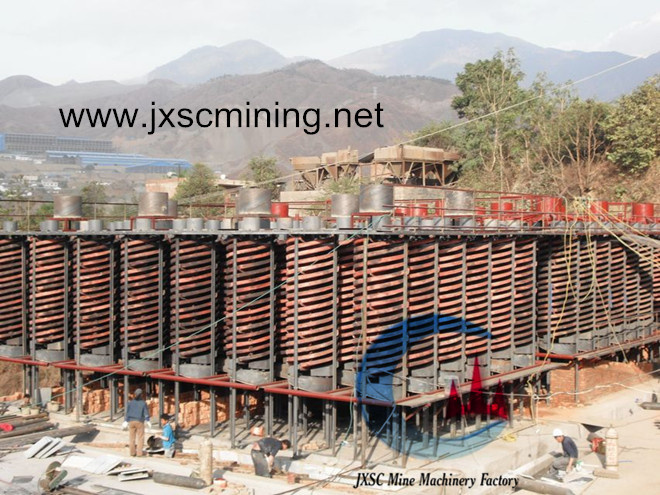

this is a 250t/h beach placer titanium ore mining plant in China

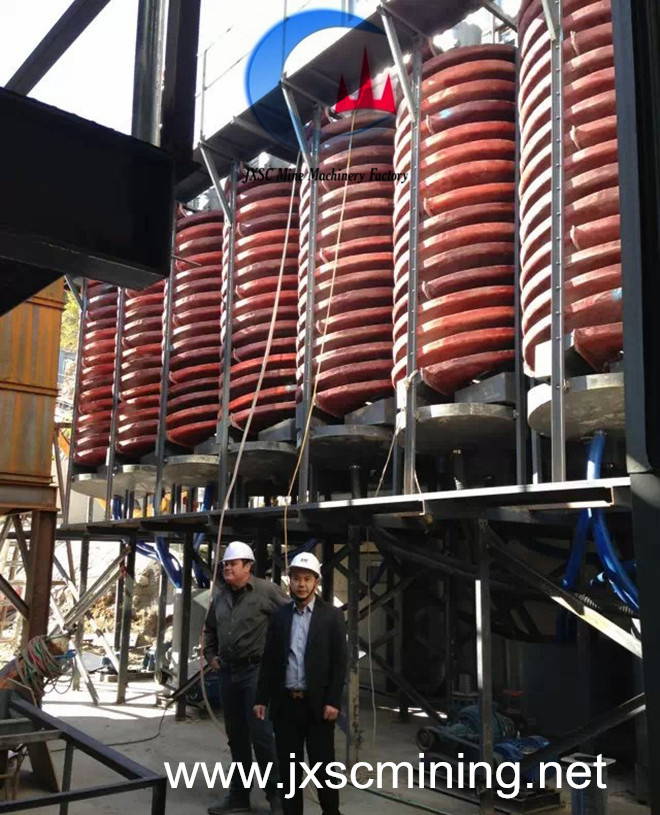

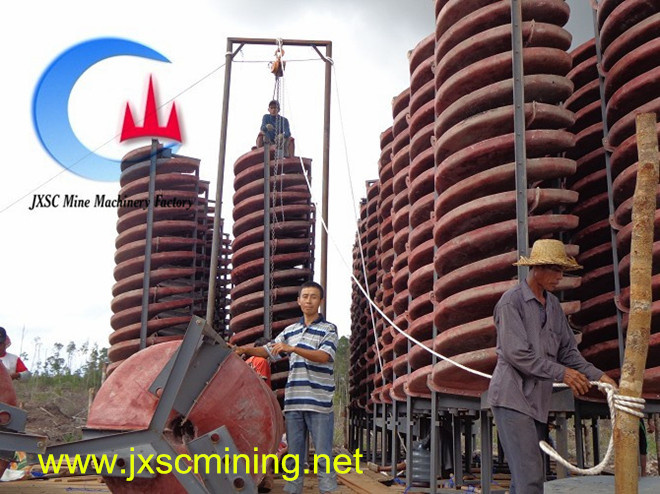

Our engineer provide installation service in oversea mine site
Jiangxi Province County Mining Machinery Factory is specialized in researching, manufacturing, sales and door tracking service as one of the metallurgical mineral processing machinery enterprise, our company is engaged in the mineral processing equipment product design and production for several years history, has accumulated rich experience in design and production. Enterprise in mineral processing equipment industry has had a positive effect, set up the good reputation. The company constantly with technology innovation, hard to develop the country generation into high technology and new technology processing equipment, make excellent brand, mainly the manufacture of the products like as shaking table, flotation equipment, crushing(powder)equipment, magnetic separation equipment, screening equipment, ore washer classifying equipment, agitation equipment, spiral chute equipment, gravity separation jig, feeding equipment, milling equipment. And we can manufacture various types of mineral processing machinery and equipment according to our customers' requirements. Our products are widely used for sorting gold, silver, copper, iron, tungsten, lead, zinc, tin, molybdenum, nickel, tantalum, niobium, manganese ore, coal, monazite, rutile, diamonds, other precious metals and precious metals mine, and for the flotation colored, black metal, precious metals and other minerals.
Company has won the Outstanding Business Award, and many times as honesty, service and advanced company, is the backbone of the metallurgical industry, mineral processing machinery business. The company has export qualifications, our products sell well all over the world for many years, especially exported to Brazil, India, Indonesia, South Africa, Somalia, Philippines, Malaysia, Sudan, Kazakhstan, Kyrgyzstan, Cambodia, Vietnam, Korea, Mongolia, Myanmar and other countries.
