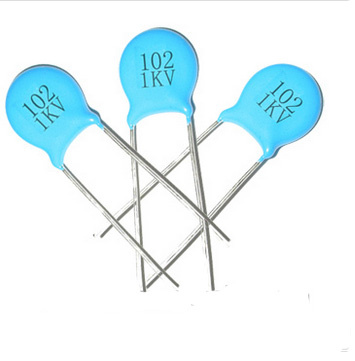

Tmcc02 High Voltage Ceramic Disc Capacitor
Product Specifications
| Prod Model: |
High Voltage Ceramic Disc Capacitor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Package Type: |
Through Hole |
| Type: |
Ceramic Capacitor |
Product Description
Quick Details
| Place of Origin: | China (Mainland) | Brand Name: | Etopmay & Topmay | Model Number: | TMCC02 |
| Type: | Ceramic Capacitor | Package Type: | Through Hole |
Packaging & Delivery
| Packaging Details: | Ammo, Bulk |
| Delivery Detail: | 7-10 days |
- Capacitance: can be measured at 20 ±2C with 1 ±0.1MHz and 5Vrms (maximum)
- Capacitance tolerance (C x D) : 1 to 9pF ±0.25pF and ±0.5pF
- 10pF and above ±5% (J) and ±10% (K)
- Insulation resistance (IR): at working voltage of ±3%
- Withstanding voltage: 3 times
- Test 60±5 second IR ≥10,000mΩ
- Temperature characteristics:
- NPO 0 ±60ppm/°C
- N150 150 ±60ppm/°C
- N220 220 ±60ppm/°C
- N470 470 ±60ppm/°C
- N750 750 ±60ppm/°C
- SL: 300 to -1,000ppm/°C
- Characteristics:
- Low-dissipation factor and high-reliability factor
- Small volume and low-remnant inductance
- Various types of temperature characteristics
- Operating temperature range: -25 to 85°C
- Working voltage: 50 to 500V DC
Business Type: Manufacturer, Trading Company
Main Products: Metal Oxide Varistor(MOV); Middle-high voltage ceramic capacitor;
Y1 safety capacitance; Y2 safety capacitance; X1 safety capacitance; X2 safety capacitor; Safety capacitor; Diode; Ceramic capacitor; Dynatron
Location: Dongguan, China (Mainland)
Year Established: 2008
