Product Specifications
Prod Model: |
IT200B-S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
OEM: |
Workable |
Best Water-Proof: |
Patented 3 Lays Design |
6 Seconds Interval: |
Avoid Abuse Usage |
Used PE Sleeve Split: |
Avoid Reuse The Used PE Rolls |
PE Sleeve Inward Rotation: |
Bring The Liquid Inside The Toilet Sink |
Battery Low Voltage Warning: |
Red Light Twinkling |
Material: |
Plastic |
Shape: |
Elongated |
Hinge Material: |
Stainless Steel |
Feature: |
Slow-Close Toilet Seats |
Length: |
500MM |
Slow Down: |
With Slow Down |
Color: |
Single Color |
Pattern: |
Without Pattern |
User: |
Adult |
Warranty: |
1 Year |
Usage: |
Public Toilets |
Product Description

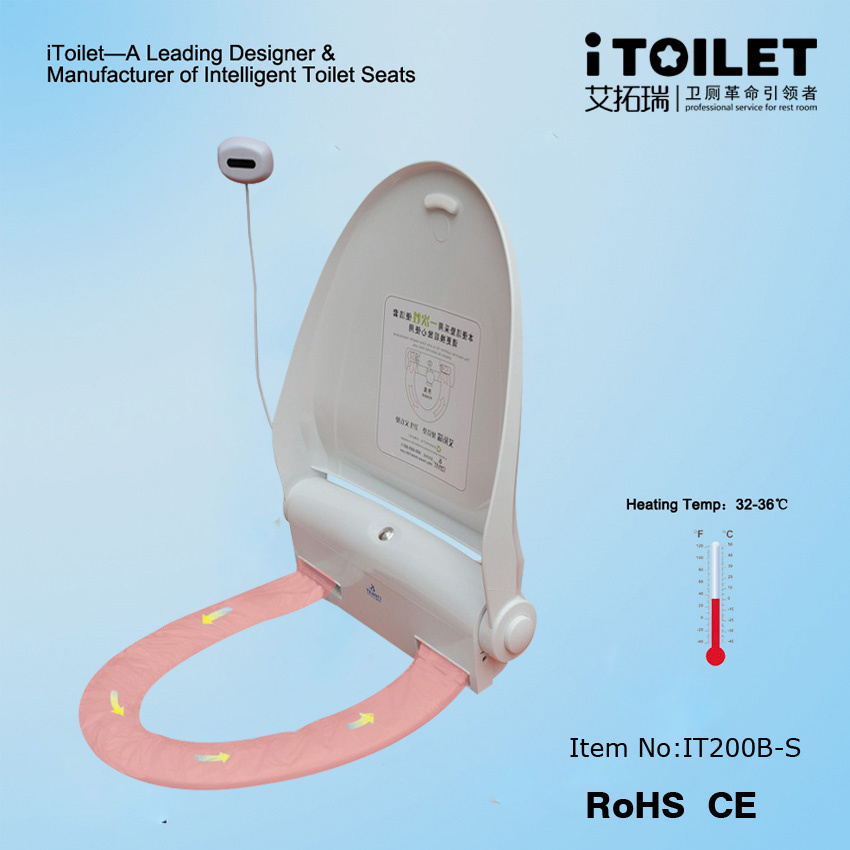

toilet lid from Xiamen manufacturer, patent 5i life sanitary and intelligent toilet seat for hospitals, hotels, restaurants, airports, etc.
With a simple press or sensor, the built-in MCU will start the motor to turn the PE sleeve turning a new loop, so to provide a fresh and clean seat for every user, visible hygiene, no cross infection at all.
Advantages:
A, Promote the cleanliness and neatness of toilets.
B, Reduce cost on toilet paper, detergents and cleaners payrolls
C, Easy installation within 3 minutes, widely adapt to 90% toilets.
D, Used PE roll split, recyclable materials, Eco-friendly
1 Materials:
1.1 ABS soft close cover
1.2 PP comfortable seat ring
1.3 Durable Nylon & Stainless steel hinge
1.4 HDPE sleeve - 0.012mm thickness film
1.5 Stainless steel manual button
1.6 Sensor ( Please sensoring at least 1 second within 5-7cm before the sensor)
2. Adapter
2.1 UL listed Adapter
Input : 100-240Vac, 50/60Hz
Rated Output: 24V
3. Technique
3.1 Static power consumption≤1.5w
3.2 Dynamic power consumption≤15w
3.3 Seat heating power consumption≤65w
3.4 Seat ring heating temperature: 32-36ºC (91.4 - 96.8F)
3.5 Heating at ambient temp. below 18ºC
4. Characteristics:
4.1 Patented 3 layers waterproof design
4.2 Twinkling red means low voltage
4.3 Over-load safety design
4.4 6 seconds delay design to avoid abuse usage
4.5 Adapted to 90% toilets -- (2 holes gap 13-21cm)
4.6 Easy installation within 3 minutes
5. Package detail:
Product weight: 3.5KG
Product size: 50*45*15cm
1pc / box / 49*18*54.8cm
5pcs / carton / 92.5*56.5*50cm
N.W./G.W.:21/25kg
Some similar items listed below:
Item No. | IT1OOA | IT1OOB | IT2OOA | IT2OOB | IT2OOB-S | IT1OOC |
Sensor | / | / | Yes | Yes | Yes | Yes |
Battery | Yes | Yes | / | / | / | / |
Seat heating | / | / | Yes | Yes | Yes | Yes |
Adapter
| Input : 100-240Vac, 50/60Hz Output: 7.5V | Input : 100-240Vac, 50/60Hz Output: 7.5V | Input : 100-240Vac, 50/60Hz Output: 24V | Input : 100-240Vac, 50/60Hz Output: 24V | Input : 100-240Vac, 50/60Hz Output: 24V | Input : 100-240Vac, 50/60Hz Output: 24V |
Static power consumption | ≤0.5w | ≤0.5w | ≤1.5w | ≤1.5w | ≤1.5w | ≤1.5w |
Dynamic power consumption | ≤1.5w | ≤1.5w | ≤15w | ≤15w | ≤15w | ≤15w |
Heating power consumption | / | / | ≤65w | ≤65w | ≤65w | ≤65w |
6. Installation steps:
6.1 Get the 2 holes of the toilet ready for installation.
6.2 13-21cm bracket adjustable to suit the most toilets,
then tight the 2 sets of screws to firm the base on the toilet.
6.3 Horizontally forwarding the cover set till it clicked well on the base by leaning on the surface of toilet.
6.4 Get a PE roll, release the end of PE sleeve about 10-15cm and have it split about 5cm, insert the head of split PE sleeve under the "usage counter"
6.5 Putting through the PE sleeve along the seat ring.......
6.6 The split head of PE sleeve can easily go through the blade, and then fasten the head of sleeve to the plastic axle rack and make several circles, after that, please click the rack on the stand, switch on the motor after power on to check the performance of PE sleeve turning. So the installation finished.
7. Application:
For public toilets such as : Airports, Banks, Churches, Department stores &Shopping malls, Exhibition halls, Hotels, Restaurants, Coffee shops, Clubs, Beauty shops, Hospitals, Schools, Offices, etc.
Xiamen iTOILET Environmental Science and Technology Co., Ltd.
Devoted for smart toilet seats, at Xiamen China.
A National level high technology enterprise,
A Professional designer and manufacturer,
A Global safety guarder for toilets,
A Leader in the field of modern toilets revolution,
An Esteemed brand in the public smart toilet seats,
Our patented PE sleeve renewing smart hygienic toilet seats with CE, CB & RoHS widely used among Airports, Banks, Clubs, Department stores, Exhibition halls, Hotels, Restaurants, Hospitals, Offices etc.
Some advantages listed below:
1. Avoid the possible lawsuit in case customer injured from squatting on the toilet.
2. Promote neatness and cleanliness, improve company image.
3. Guarantee hygiene conditions, fresh and clean seat preventing across-infection.
4. Reduce plumbing problems while use less tissue, less water and detergent.
5. Prolong the toilet service life.
