Tools and Moulds Metal PVD Ion Coating Machine

Name: Tools and Moulds Metal PVD Ion Coating Machine
Brand: china-manufacturer-directory.com
SKU: 713666475
Availability: InStock
Rating: 4.3 (57 reviews)

Supplier:	Dongguan Huicheng Vacuum Technology Co., Ltd.
Price:	Negotiable/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	HC-1419 HC-0910
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coating:	Vacuum Coating
Type:	Coating Production Line
Substrate:	Metal/Steel

Product Description

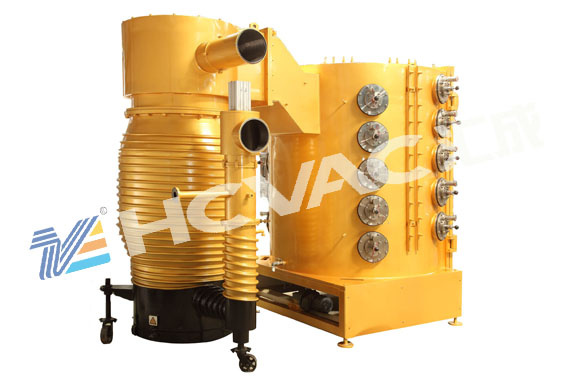

Tools and moulds metal ion coating machine

has the features of fast deposition rate, great ionization rate

Tools and moulds metal ion coating machineis of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, large productive capacity, etc.

For More information,pls do not hesitate to contact with Sophia:

Mobile: 86 13600282018
Characteristic: The principle of the electric arc is intergrating cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.

Applied industry: It can be used to coat metal film, titanium nitride, titanium carbide, and zirconium nitride, chromium nitride and titanium, nickel, chromium, copper, and other compounds film, multi-layer super-hard film, nitrogen-doped titanium film and the alloy film, and in a very short time to complete all the machining process, it is a highly efficient multi-functional coating equipment.

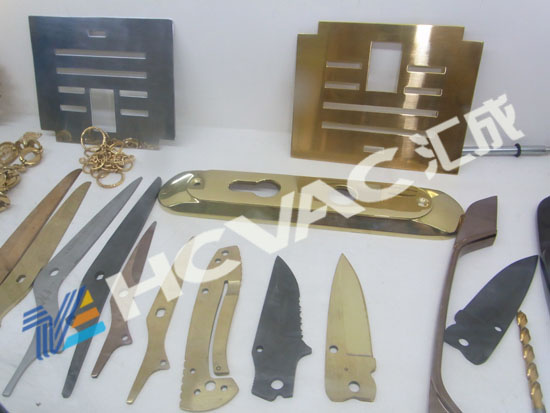

This machine is extensively used in the fields of ultra-hard coating about the tools and mould, decorative coating about car wheels, ceramics, golf, watches making, hotel product, sanitary ware, luminaires, optical frame, hardware, etc.

Mode Dimension	LH-800	LH-1000	LH-1250
	800*1000mm	1000*1000mm	1250*1500mm
Coating mode and main confirguration	Eight multi-arc targets	Ten multi-arc targets	Twelve multi-arc targets
Power source	Electric-arc power, Filament power,
Process gas control	Mass flowmeter + Electromagnetic ceramic valve
Vacuum chamber structure	Vertical side opening door, pump system postposition, double water cooling
Vacuum system	Molecule pump +Roots pump +Mechanical pump(5.010 -5 Pa) Diffusion pump +Roots pump +Mechanical pump(5.010 -4 Pa)
Workpiece baking temperature	Normal temperature to 350 centi-degree PID control, radiation heating.
Workpiece motion mode	Public rotation Frequency control: 0-20 rotation per minute
Measure mode	Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
Control mode	Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
Remark	We can design the dimension of the equipment according to customers special technique requirement.
