Zhenjiang Voton Machinery Co., Ltd. >> Top Quality! ! ! Lightning Protector

Top Quality! ! ! Lightning Protector

Name: Top Quality! ! ! Lightning Protector
Brand: China-Manufacturer-Directory.com
SKU: 724710955
Availability: InStock
Rating: 4.3 (97 reviews)

Supplier:	Zhenjiang Voton Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Lightning Protector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Jiangsu, China (Mainland)
Brand:	Voton
Frequency:	DC-3GHz
Insertion Losss:	≤0.18dB(3GHz)
Vswr:	≤1.20DC-3GHz
Peak Power:	≤600 Watts
Impedance:	50ohm
Durability:	Mating Cycles ≥500
Material:	Copper
Connection:	Female

Product Description

1.ISO90012.feeder lightning 2professional surge protection 3highly qualified research team

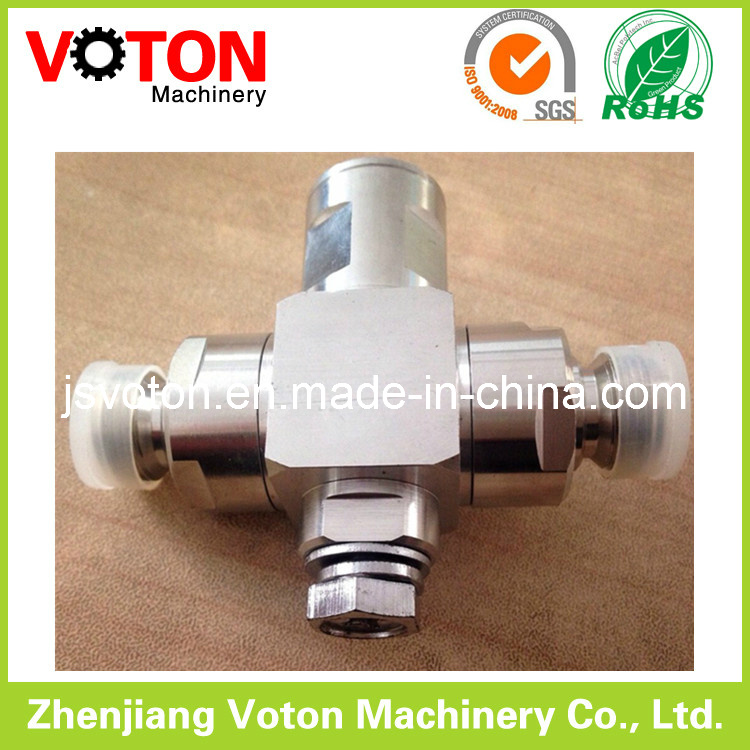

Gas Discharge Tube Lightning EMP Protector
Model No.	GPD-N-KKY
Interface	IEC 60169-16/MIL-STD-348/304
Electrical
Characteristic Impedance	50ohm
Coaxial Connector	N Female to N Female Mount Connector
Frequency Range	DC-3GHz
VSWR	≤ 1.20@DC-3GHz
Insertion Losss	≤0.18dB(3GHz)
AC Working Vlotage	2500V / 1 Min No Breakdown and No Arcing Phenomenon
Dielectric Resistance	≥ 5000MΩ
Contact Resistance	Center Contact ≤ 1mΩ	Outer Contact ≤ 1 mΩ
Peak Power	≤ 600 Watts
Initial Discharge Voltage	75/90/150/230/470(V)
Maximum Discharge Current	20KA(8/20μs)
Mating	_
Mechanical
Durability	Mating cycles ≥ 500
Material and Plating
Parts Name	Material	Plating (Finish)
Body(Housing)	Brass	Ni or Tri-Metal(CuZnSn)
Insulator	PTFE	_
Inner Conductor	Phosphor Bronze	Au(or Ag)
Coupling Nut	Brass	Ni
Gasket	Silicone Rubber	_
Mount Kits	Stainless Steel	_
Environmental
Operating Temperature	_ 45 °C -85 °C
Weatherproof Rate	IP67
RoHs (2002/95/EC)	Compliant by exemption
EU Directive 2006/95/EC	Compliant

Zhenjiang Voton Machinery Co., Ltd. is specialized in radio frequency connectors. we design, and manufacture RF coaxial components for communications systems, test and measurement, manufacturing, and medical applications. Our product line includes RF coaxial connectors, RF coaxial cable, cable assemblies, totally more than 20 series and about 2000 varieties. 1.0/2.3(CC4), BNC, TNC, MCX, MMCX, SMA, SMB, and 7/16 DIN.
We have the business in Chile, USA, UK and other countries, we are also looking for the sales agents, with an experienced and professional team. We have exported our products to many countries and regions all over the world, especially America and Europe. We also provide OEM and ODM services. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
The company continued to learn from the advantage management experience of well-known international domestic enterprises and formed a set of effective management, marketing and after service system. At the same time, the company has passed the ISO9001: 2000 Quality Management System Certification. At present, the company has already had the independent right of conduct import-export business, and the business scope has become around the world.
