Product Description

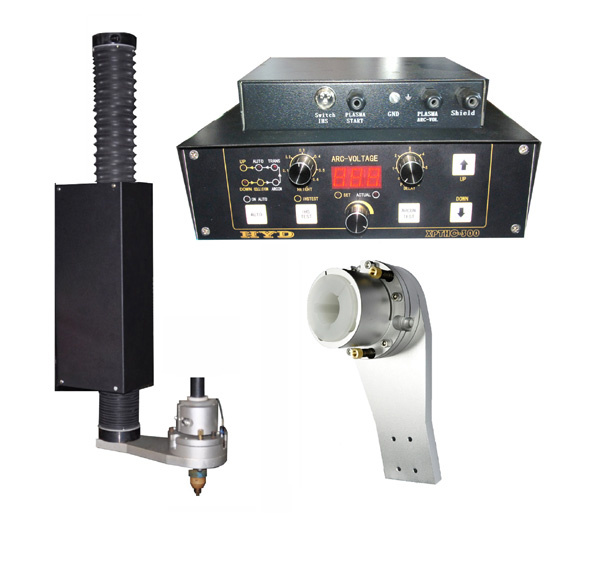

Industrial level stand alone THC, suitable for almost all plasmas on market, over 3000 installations every year.
A, Auto Initial Height Sensing(IHS)
Torch Retaining Cap IHS and Proximity Switch IHS (NPN and PNP), Proximity Switch IHS is backup for Torch Retaining Cap IHS for cutting dirty/rusty workpiece, needing the Anti-Collision Fixture designed by HYD (breakaway kit ).
IHS has two speeds, adjustable to user, protect torch and better accuracy.
B, Anti-Collision Function
No matter THC is on Auto mode or Manual mode, when torch head touches the workpiece, THC automatically lift torch up to IHS height. So with XPTHC-300, user no need to worry about torch head crashing.
C, Freeze Auto Height Control on Corner Signal
XPTHC-300 would freeze Auto Mode on receiving corner signal from CNC system to avoid torch diving, and we have a unique design to backup this function. We set 30V (adjustable) as Turning Point according to our years practice. When the Actual Arc Voltage is higher than Set Arc Voltage over 30V, THC Auto Control Mode freezes to avoid torch head diving, until it goes back to 30V range. This Over Voltage protection can avoid torch diving on voltage spikes (Corner Turning, Kerf Crossing) effectively.
D. Set Pierce Time
Set the Button (Set PIERCE) to set Pierce Time. XPTHC-300 support Dynamic pierce on cutting thick material.
E. Manual Operation
Many functions can be Manually operated on THC Operation Panel such as setting Auto/Manual, Up and Down, testing of IHS and Arc Start^. etc
F. Arc Voltage Divide
Isolation Voltage Divide detection, the Voltage Divide ratio is 100: 1/50: 1.
For details of THC, pls contact us for LATEST instruction manual and price.
We ship ONE set to anywhere.
ShenZhen HongYuDa CNC Technology Co., Ltd has engaged in R&D Torch Height Controller (THC), CNC Shape cutting over 10 years. During years working with China&oversea cutting machine manufacturers, we have developed two types of THC, Stand Alone Arc Voltage THC and Capacitive THC. Sparing no effort on quality control, our THC have built up great reputation on China market, we can say that we are the NO. 1 THC supplier in China.
Until Now, our Capactive THC CHC-200D has been installed over 5000 sets; Arc Voltage THC XPTHC-100 has been installed over 1200 sets.
We still ship ONE set for any customer.
Our Philosophy is HIGH QUALITY =\= HIGH PRICE. For years, we always try to make better cutting at a cost-effective price.
Since some Japan, Taiwan manufacturers started to supply our THC with their machine on large quantity, we started looking for oversea partners. We can OEM THC according to manufacturer's request.
Welcome your inquiry or visit to our workshop, our company is located in Shenzhen, half hour's driving from Hong Kong, one and half hour's train from Guangzhou which is home for Canton fair.
