Product Specifications
Prod Model: |

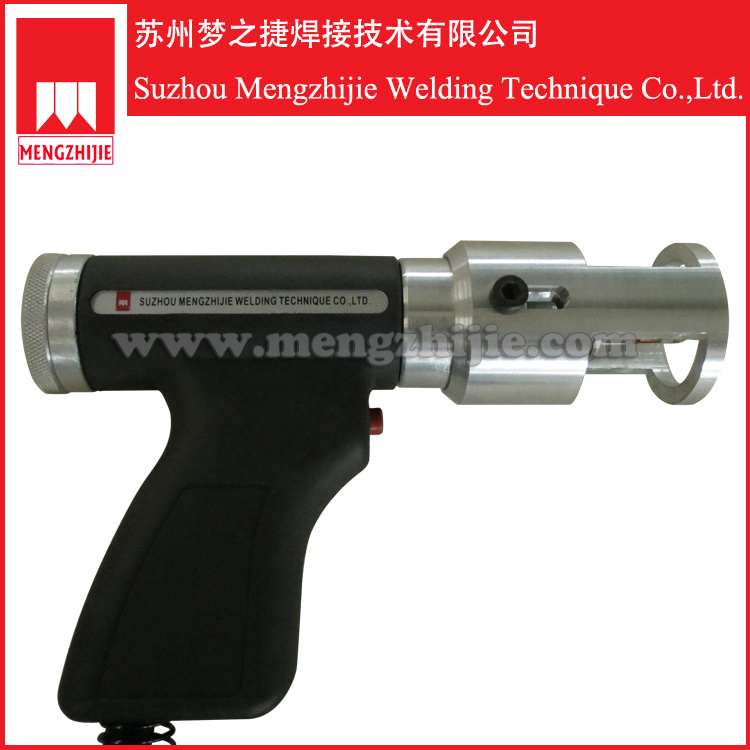

Torch with vertical storage unitM2-M10 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Stud Welding: |
Torch with Vertical Storage Unitm2-M10 |
Power Supply Model No.: |
Stud Welding Gun |
Welding Type: |
Stud Welding Gun |
Output Voltage: |
40V-220V |
Welding Speed: |
5-30PCS / Min |
Frequency: |
50-60Hz |
Stud Welding Range: |
M2-M10 |
Degree Of Protection: |
IP22 |
Weight: |
1.5kg-3.5kg |
Type: |
ARC Welders |
Current: |
Alternating Current |
Product Description
Technical advantages of Torch with vertical storage unit M2-M10
:
1. Human engineering design
2. High accuracy and automatic welding
3. Light weight, low heat
4. Corrosion resistant, strong lifting
Use of welding gun:
1. Suitable for large diameter studs and stud welding within the 2-10mm range
2. Aluminium gun body
3. The high heat diapersion performance
4. Stainless steel body buffer to ensure a good damping effect
5. Little weld spatter
The process and technology of Pull-arc welding gun
1, Starting
2, Enhance the stud welding gun
3, Boot arc generation
4, The heat of the main arc generation the stud tip and the workpiece surface melting
5, After electric arc stopped, the stud will be advanced in melt layer by welding gun.
6, Completion of welding
Welding method |
Stud diameter |
Power Settings |
Extended length(mm) |
Mention stretch height(mm) |
Time |
Gas protection |
M3 |
1 |
2.5 |
1.5 |
0.1 |
Gas protection |
M4 |
1 |
2.5 |
1.5 |
0.15 |
Gas protection |
M5 |
1 |
2.5 |
1.5 |
0.2 |
Gas protection |
1 |
2.5 |
1.5 |
0.25 |
Gas protection |
M6 |
1 |
2.5 |
1.5 |
0.25 |
Gas protection |
2 |
2.5 |
1.5 |
0.2 |
Porcelain Biosphere |
M8 |
2 |
3.0 |
1.5 |
0.3 |
Gas protection |
3 |
3.0 |
1.5 |
0.25 |
Porcelain Biosphere |
M10 |
3 |
4.0 |
1.5 |
0.4 |
Gas protection |
4 |
4.0 |
1.5 |
0.3 |
Porcelain Biosphere |
M12 |
4 |
4.5 |
1.5 |
0.45 |
Gas protection |
5 |
4.5 |
1.5 |
0.4 |
Welding method |
Stud diameter |
Power Settings |
Extended length(mm) |
Mention stretch height(mm) |
Time |
Porcelain Biosphere |
φ5 |
1 |
1 |
2.5 |
1.5 |
0.15 |
Porcelain Biosphere |
φ6 |
1 |
1 |
2.5 |
1.5 |
0.15 |
Porcelain Biosphere |
φ8 |
1 |
2 |
3.0 |
1.5 |
0.2 |
Porcelain Biosphere |
φ10 |
1 |
2 |
4.0 |
1.5 |
0.3 |
Porcelain Biosphere |
φ12 |
2 |
2 |
4.5 |
1.5 |
0.4 |
Porcelain Biosphere |
φ13 |
2 |
2 |
4.5 |
1.5 |
0.45 |
Porcelain Biosphere |
φ14 |
2 |
2 |
4.5 |
1.5 |
0.5 |
Porcelain Biosphere |
φ16 |
2 |
3 |
2.5 |
6 |
0.45 |
Porcelain Biosphere |
φ18 |
2 |
3 |
2.5 |
6 |
0.5 |
Porcelain Biosphere |
φ19 |
3 |
3 |
2.5 |
6 |
0.5 |
Porcelain Biosphere |
φ20 |
3 |
4 |
3 |
6 |
0.6 |
Porcelain Biosphere |
φ22 |
4 |
4 |
3 |
6 |
0.6 |
Porcelain Biosphere |
φ25 |
5 |
5 |
3 |
6 |
0.6 |
