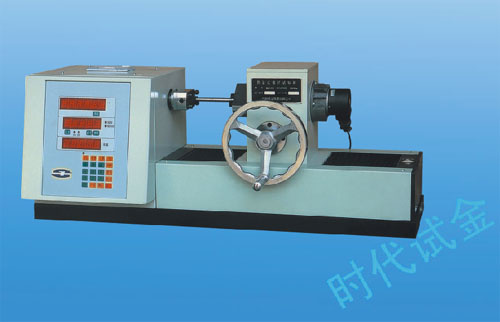

TNS-J02 Digital display torsion Testing machineThis kind of testing machine is used for the torsion test for all kinds of materials, by imposing a torque. It's mainly suitable for material labs of scientific research deptartment, colleges or universities and industrial enterprises to test the mechanical properties of materials under torsion condition. There are two testing methods: Automatic testing: Turn the hand wheel until the test rod breaks. The testing machine will automatically test the yield torque M1 and the maximum torque M2. Manual testing: Choose the test angles and torques of any 9 points during the testing period and record them.
|
Specification |
|
|
Max. test torque(N.m) |
200 |
|
Min.reading of torque(N.m) |
0.06 |
|
Torque measurment range(N.m) |
20-200 |
|
Max. reading of torsion angle( ° ) |
9999.95 |
|
Min. reading of torsion angle(°) |
0.05 |
|
Relative error of torque indications |
≤± 1.0% |
|
Relative repeatability error of torque indications |
≤ 1.0% |
|
Diameter of specimen(mm) |
φ 5~ φ 20 |
|
Max.testing space(mm) |
255 |
|
Working voltage(V) |
AC,220V ±10%, 50 Hz, Single phase |
|
Dimension of package (mm) |
960×440×420 |
|
Gross Weight(kgs) |
145 |
