Product Specifications
| Prod Model: |
KMY8501O |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
H1456xw450xd320 |
| Touch Screen: |
Saw Touch or IR Touch or Upon Clients |
| Supported OS: |
Supported OS |
| Material Of Cabinet: |
Cold-Roll Steel Sheet or Others |
| Type: |
Currency Detector |
| Certification: |
CE |
Product Description

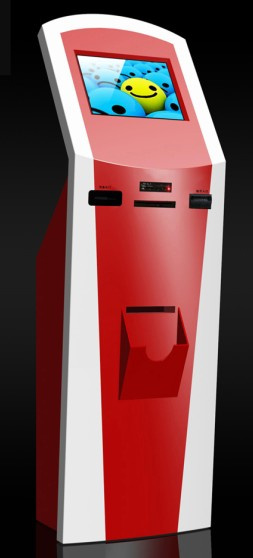

Touch screen self-payment kiosk with hopper
Configuration
Components Specification
Computer Industrial Host: Mother Board: Industrial POS-1711VNA(Intel845)
CPU: Intel P4 3.0G (upgradeable as option)
RAM: 1GB(upgradeable as option)
HardDisk: 80 G (upgradeable as option)
(More sizes and types of PC available upon request)
Monitor TFT LCD: 15, 17 or 19 optional
Brightness 300~1200nits
Contrast 450: 1~1000: 1
Typical Max Native Resolution:
15 1024*768
17 1280*1024
19 1280*1024
More sizes between 20~46 available upon request
Touchscreen SAW Touch: 15 17 19
Resolution 4096*4096
(More types of touchscreen available: Capacitive, resistive or IR optional)
Input Device 3DES Metal EPP: 16 keys, waterproof, dustproof, vandal proof
Card Reader Motorized/Dip: EMV proved Magcard/IC reader; Shutter(motorized); Confiscate card(motorized)
Printe Thermal Printer: Width 80mm~210mm; Black mark sensor; Full/half cutter
DOT Matrix: Width 80mm~210mm; Black mark sensor; Full/half cutter
Bankbook: 24 pin dual direction.
Speaker Multimedia: Left-right bi-channel amplified output
Enclosure ColdRoll Steel: Steel powdercoated front
Powercoated backcover
OS&Drivers Windows XP+SP2 (WINCE, Linux, UNIX, WIN2000) and all related drivers available
Packing Bubble Foam, carton, wooden case
Other Optionals: UPS, Video Camera, Alarm System, Barcode Scanner, Track Ball, Photo Printer, Cash Acceptor, Card Dispenser, Check Acceptor, Infrared, Bluetooth, PSAM Card, etc
SZ KMY Co., Ltd. is a leading high-tech company dedicated to R&D, manufacturing, marketing and services in customized self-service computing platforms and related metal keyboard/EPP//POS peripherals. KMY product range covers from self-service kiosk, Metal keyboard/keypad/EPP and POS peripherals, to more other related products. We can provide our customer with one-stop solutions according to their different demands.
KMY defines its strategic goal as "becoming a worldwide leader in the self-service world and achieving leapfrog evolution from excellence to preeminence". To this end, kmy will adhere to its core value: "responsibility makes perfection"and spare no effort to improve its competitiveness by endless development. With its well-built operation system, outstanding organization structure and fully-trained personnel, kmy aims at building an internationalized designer and manufacturer of self-service terminal. The products and solutions are popular both in the domestic and global markets over 100 countries, including America, Europe, Asia, Africa, and the Middle East and won strong reputation in this industry.
