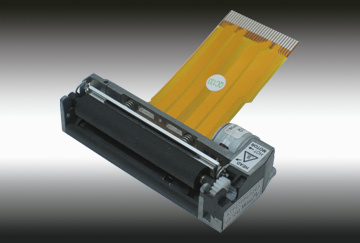

2-inch thermal printer mechanism
Thermal printer mechanism TP27 series is ultra compact, high speed, light weight thermal printer, printing on 2-inch wide paper (58mm). This thermal printer mechanism, with easy loading mechanism, improves paper loading and printer mechanism maintainance greatly.
Application:
1. Portable terminals
2. POS
3. Ticket issuing terminals
4. Label printers
5. Banking terminals
6. Cash registers
7. Measurement and medical equipments
FEATURES:
1. The gear box has a rigid fixation structure, which can protect gears and guide the platen roller gear effectively when the printer is under cover. Therefore, it can length the life of the printer.
2. Optional both-side paper end sensor design, selectable paper end sensor position, suitable for the cash registers with double printers
3. With easy loading mechanism, which greatly improves paper loading and printer mechanism maintainance.
4. High speed up to 80mm/s
5. Compatibility: FUJITSU' FTP-628MCL101; SII LTZ245M-C384-E
APS' FM205-HS; Epson' M-173H
|
Model |
TP27 |
|
printing |
printing method |
thermal dot printing |
|
number of dots |
384 |
|
resolution |
8dots/mm |
|
paper width (mm) |
58mm |
|
printing width (mm) |
48mm |
|
paper thickness (μm) |
60-80 |
|
max printing speed |
80mm/s Max |
|
paper loading |
easy loading |
|
detection |
paper end sensor |
by photo interrupter |
|
head temperature |
by thermistor |
|
operating voltage |
for printer head |
4.2V to 8.5V |
|
for logic |
3.0V to 5.25V |
|
for motor |
4.5V to 8.5V |
|
peak current |
head |
2.3AMax |
|
motor |
1.0AMax |
|
life |
abrasion resistance |
50 KM |
|
pulse activation |
100 million |
|
operating environment |
operating temperature |
0-50 centigrade |
|
operating humidity |
10~90%RH (No condensation) |
|
storage temperature |
-20~60 centigrade |
|
storage humidity |
15~95%RH (No condensation) |
|
dimension |
printer mechanism |
69.3*32.8*15.3mm |
|
interface board |
|
|
weight (g) |
printer mechanism |
46g |
|
driver board |
|
|
interface |
RS232C, RS232TTL, USB optional |
|
cable length |
69mm, 120mm, 130mm optional |
