Using scope: Main applications are as follows:
1.Window lift motors
2.Skylight motor,Aerial motor
3.Front and rear wiper motors
4.Touching off of door lock

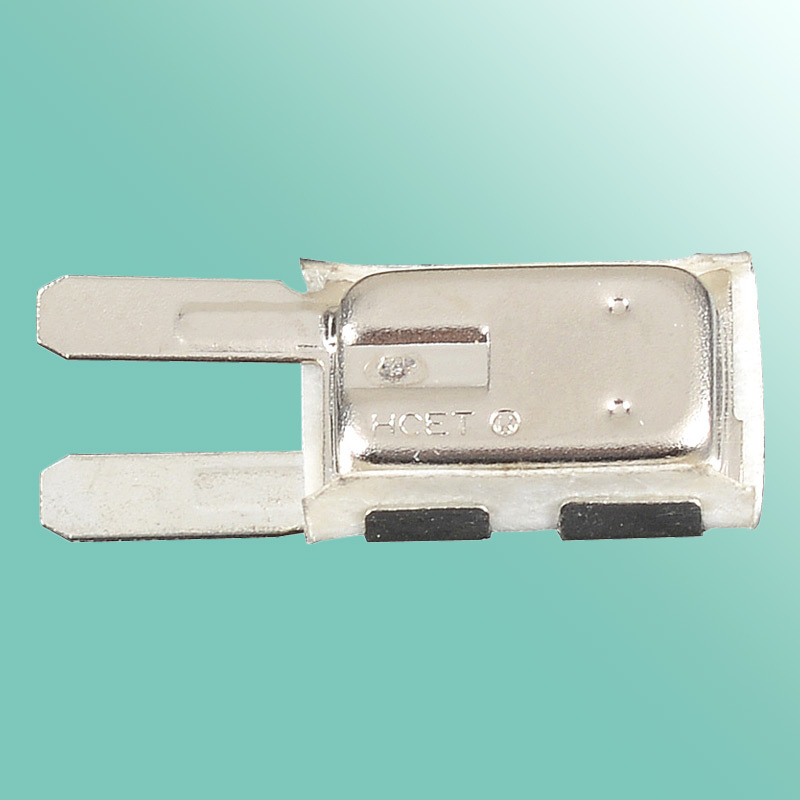

KEY BENEFITS: 5AP is acturated by current passing through it and by the heat received from the ambient temperature.It has compact design,long life cycle,reliability and more features.A variety of standard terminal,configurations is available to allow th easiest mounting and handing.Precise tripping time prevents motor overheating.
Special Features: Samll size,long life and high reliability
High level bimetal ensures that it can withstand the current of normal circuit
Accurate trip off time can prevent motor from overheating
Both temperature and current sensitive
Terminals are optional and customized
Wires are optional ad customized
Electrical Characteristics: 25 amps/15 volts DC 15amps/30 volts DC
Technical parameters: Available with nominal calinal calibration temperature from 50ºC to 180ºC
Tolerance Code +-5ºC,+-8ºC
Trip off current range:1~25A
Time check at T-ambient 25ºC 4 to 10 seconds
Hengxin Precision Electrical Equipment Co., Ltd., is a manufacturer of thermal protectors, air discharge temperature controllers, automatic electrical controls for household and simmilar use.
Located in the city of Foshan, our manufacturing facility covers 5, 000 square meters, where we employ an experienced team of over 200 staff members. Moreover, we utilize advanced production machinery including state-of-the-art bimetal pressed technology and high precision thermal treatment equipment. Accordingly, our annual revenue reaches USD4, 200, 000.
With strong experience and a strict quality control system, our thermal protectors are some of the best in the industry. As such, we can provide a wide range of product specifications and gladly accept custom orders.
Accordingly, we have received several quality system and safety certifications including UL, C-UL, VDE and CQC certifications. As a result, our products have gained a strong reputation for reliability throughout many international markets.
