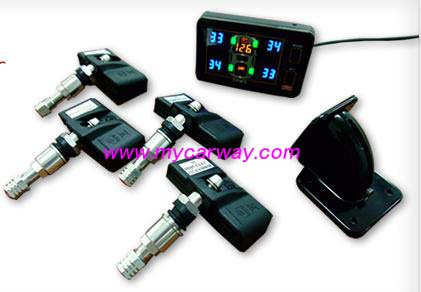

Tpms

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	FCC
Function:	Car Security
Type:	Tire Pressure Monitoring System

Product Description

Easy-to-install cigarette plug TPMS.
Long life sensor with Tadiran battery (7years ).
Audible and yellow/red LED light warning for abnormal tire pressures & temperatures.
Stable wireless signal transmission.
Real-time tyre pressure measurement (Up to 12 tyres).
Maximise tyre life & performance.
Improve fuel efficiency.
Early warning of potential tyre failure.
Increase vehicle and driver safety.
Increase productivity by reducing vehicle downtime
How 4 tires informatiion at the same time, clear and easy to control.
Voltage monitoring whenever starts avehicle, prevent the vehicle from breaking down by battery.

Tire Sensor's Specification
Battery life About 7 years, under normal condition.
Battery Voltage 3.6 V
Storage Temperature -40 to 125
Operation Temperature -40 to 115
Transmitting power Max 5dBm
Operation Frequency 433.92 MHz
Pressure Monitoring Range 0 ~ 600 kPa (or0 ~ 87 psi or 0 ~ 6 bar)
Pressure Reading Accuracy ± 10 kPa (or ± 1 psi or ± 0.1 bar)
Temperature Monitoring Range -40 to 115
Temperature Reading Accuracy ± 4 in normal environmental condition.
Weight 35.2g ± 1g
Size 61 x 34 x 19 (mm)
Receiver Specification
Operation Voltage DC 9V ~ 16V
Normal Operation Current ≤ 200mA
Storage Temperature Range -40 to 90
Operation Temperature Range -30 to 85
Tire Pressure Reading Range 0 ~ 600 kPa
Temperature Reading Range -40 to 115
Size 85 x 56 x 17(mm)
